Needle bar
Service Instructions 755 A/756 A - 00.0 - 02/2019 55

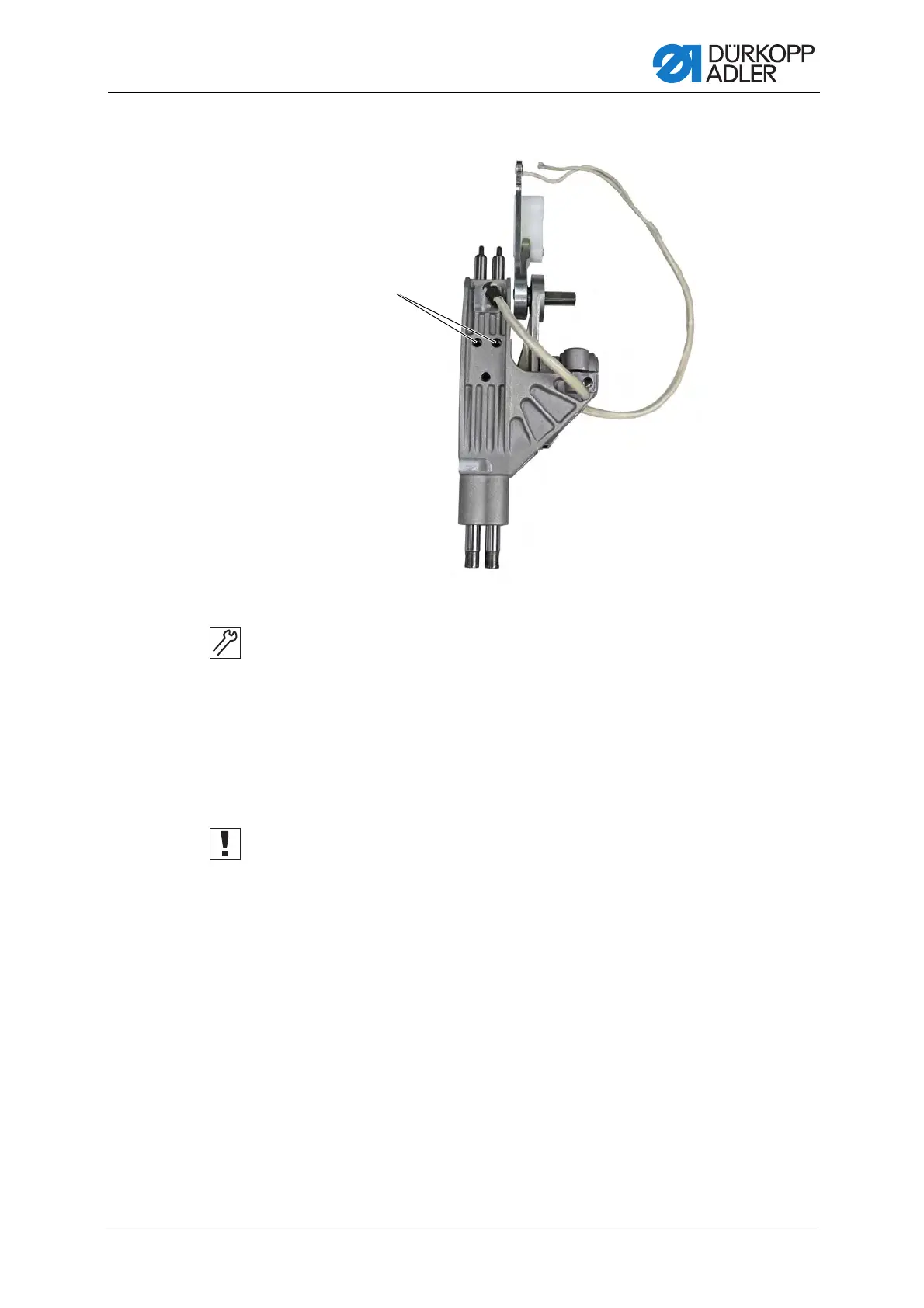

Fig. 51: Disassembling the needle bar linkage (2)
3. Loosen the screws (4).
Next, loosen the screws below the screws (4).
The needle bars can rotate freely.
4. Switch both needle bars off manually.
• Pull the pull rod (3) up and hold it in place
• Fix the needle bars in place on a solid surface and press in the
coupling bars
• Pull the pull rod (3) downwards
Important
Embedded in both needle bars are 6 balls (5).
The balls are under spring tension and will pop out when you switch off
the needle bars.
Make sure not to lose the balls (5).
(4) - Screws
