Needle bar

56 Service Instructions 755 A/756 A - 00.0 - 02/2019

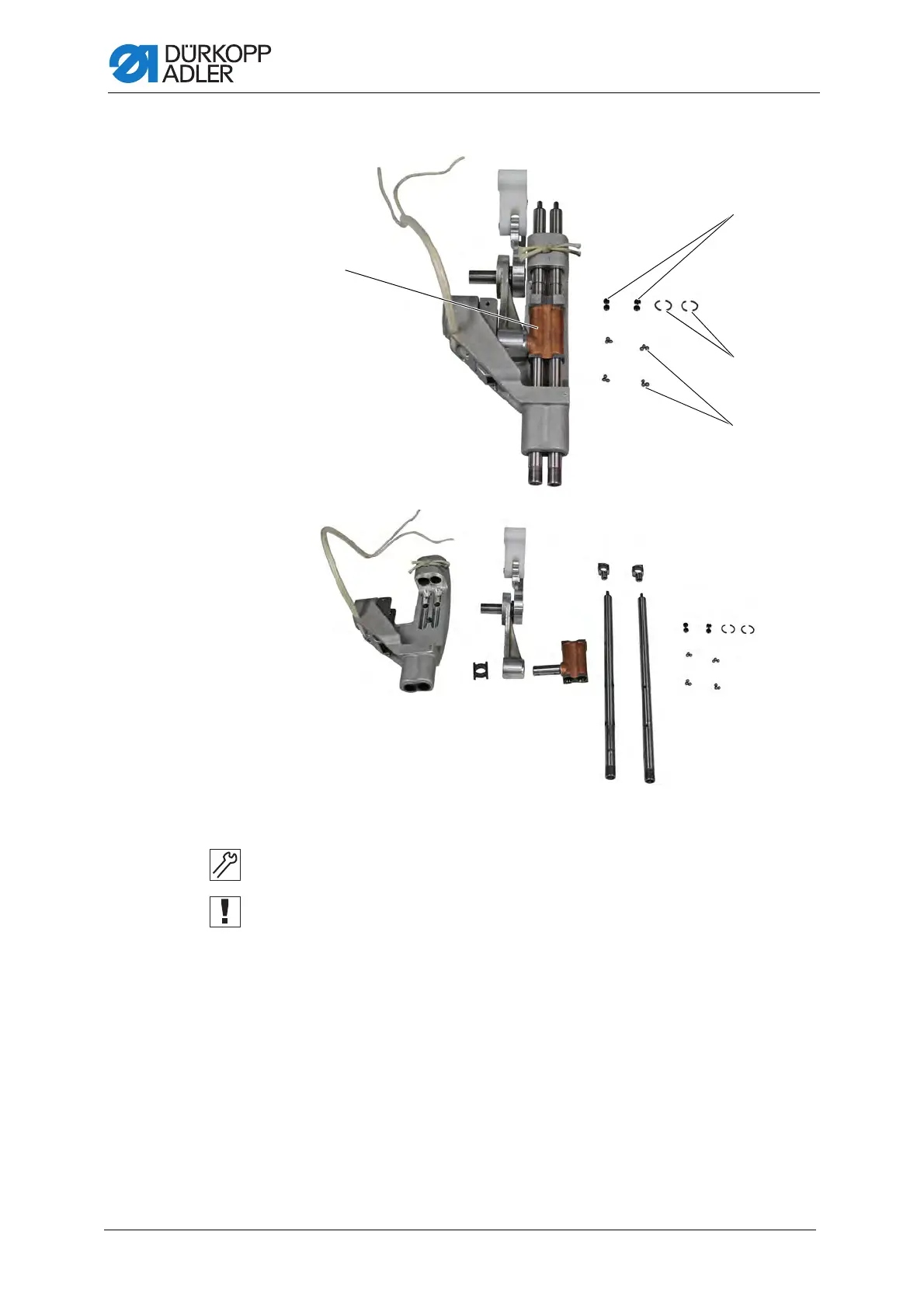

Fig. 52: Disassembling the needle bar linkage (3)

5. Push the crosshead (1) downwards.

Important

The upper balls (5) pop out.

Cover the needle bar linkage with a piece of fabric.

6. Take out the retaining rings (6) using a pair of tweezers.

7. Remove the needle bars from the needle bar linkage.

(1) - Crosshead

(4) - Screws

(5) - Balls

(6) - Retaining rings
