Needle bar
Service Instructions 755 A/756 A - 00.0 - 02/2019 57
Disassembling the needle bars

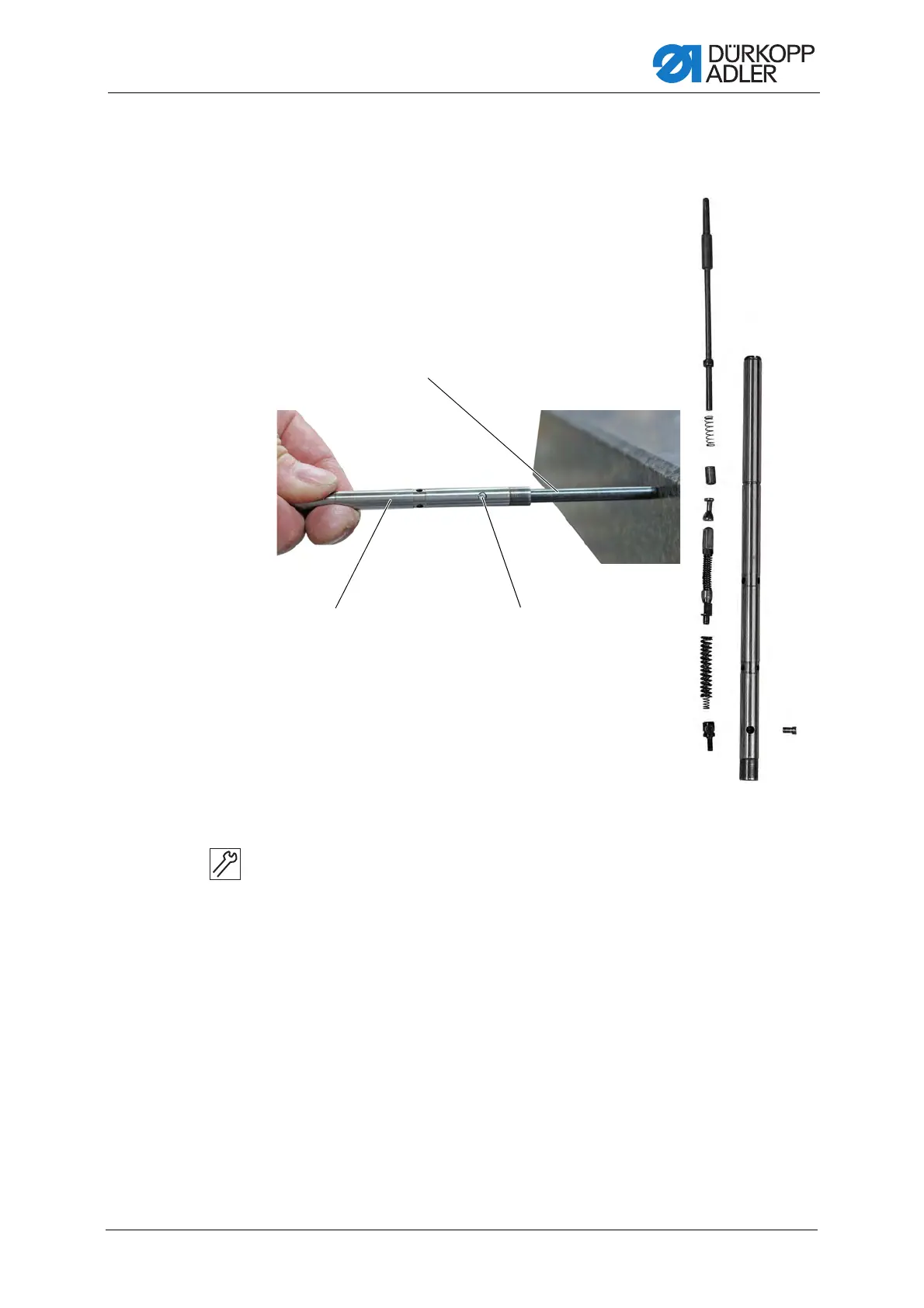

Fig. 53: Disassembling the needle bar linkage (4)
To disassemble the needle bars:
1. Insert a suitable pin (7) into the needle holder slot found on the
underside of the needle bar (8).
2. Fix the needle bar (8) including pin (7) in place on a solid surface
and lightly press against it.
3. Unscrew the screw (9).
 You can now remove the inner parts of the needle bar (8) completely.
(7) - Pin
(8) - Needle bar
(9) - Screw
