Additional equipment

224 Service Instructions 755 A/756 A - 00.0 - 02/2019

Inserting the reinforcement strip

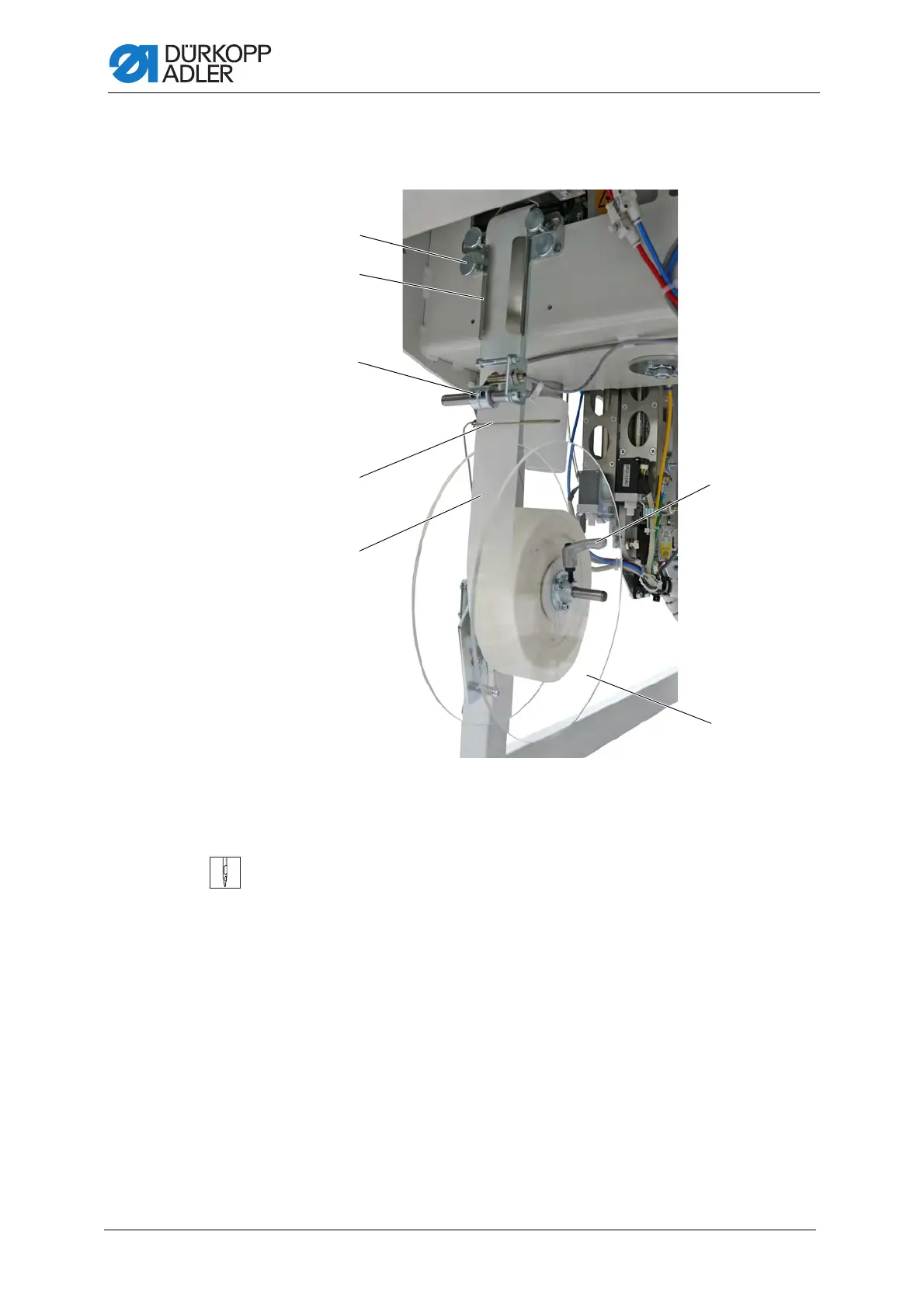

Fig. 220: Assembling the tape feeder and inserting the reinforcement strip (2)

To insert the reinforcement strip:

1. Loosen the knob (7) and pull the washer (6) off to the side.

2. Insert the tape feeder.

3. Place the washer (6) and tighten the knob (7).

Ensure that the roll holder clamps the tape roll securely.

4. Feed the reinforcement strip (5) from bottom to top through the

advancing device (4).

5. Insert the reinforcement strip (5) into the guide (2) behind the tape

monitor (3).

(1) - Knurled screw

(2) - Guide

(3) - Tape monitor

(4) - Advancing device

(5) - Reinforcement strip

(6) - Washer

(7) - Knob

⑥

⑦

②

③

④

⑤

①
