Multi-functional corner knife station
Service Instructions 755 A/756 A - 00.0 - 02/2019 169
Correction of the corner incision at seam end

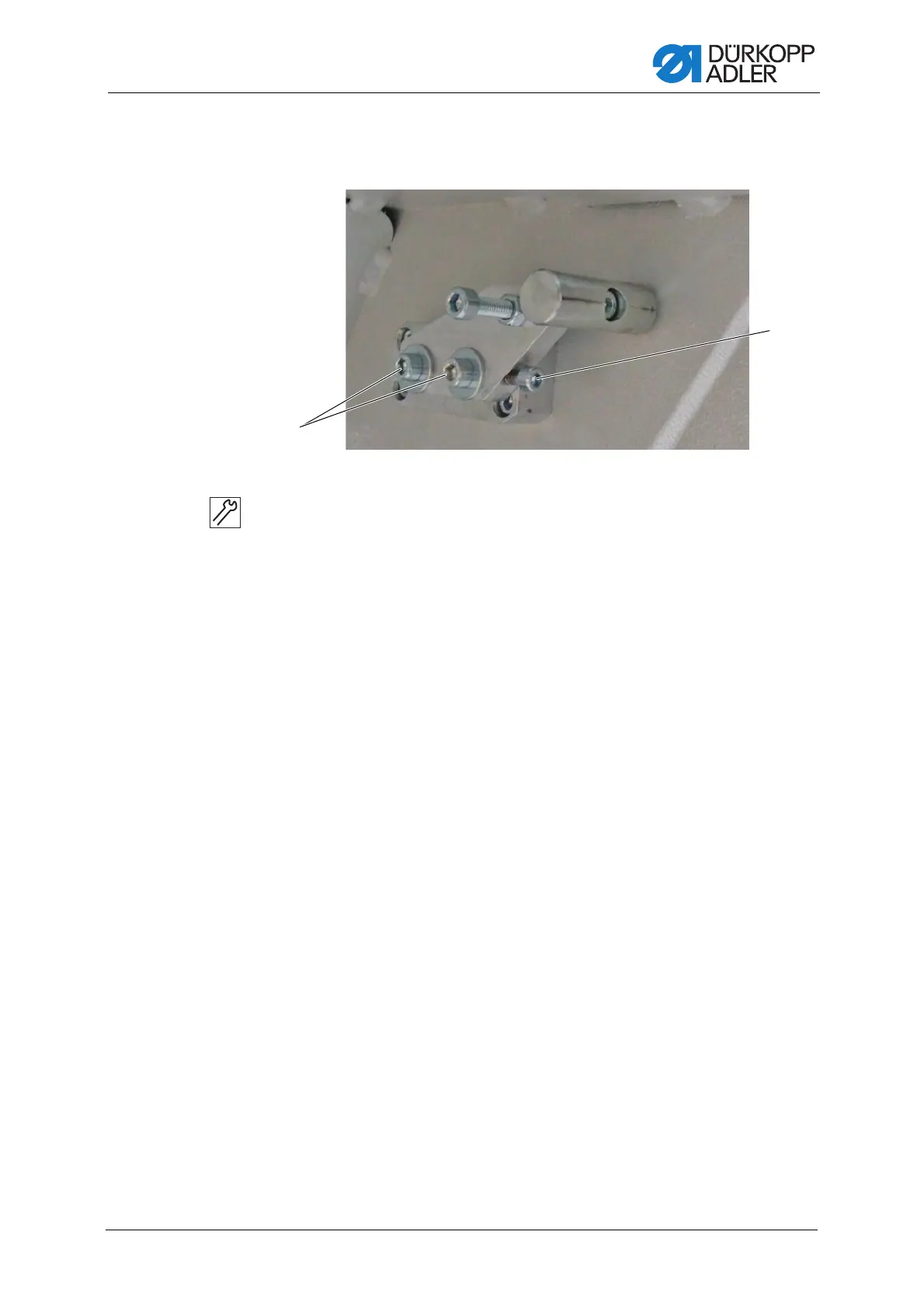

Fig. 167: Testing the initial position of the corner knives manually (2)
To correct the corner incision at the seam end:
1. Disconnect the compressed air supply.
2. Manually slide up the corner knives before pulling them down again.
3. Swivel out the corner knife station.
4. Loosen the screws (3).
5. Turn the screw (4) until the corner knives are centered in the corner
knife cutout of the fabric sliding plate.
6. Tighten the screws (3).
7. Restore the compressed air supply.
(3) - Screws (4) - Screw
