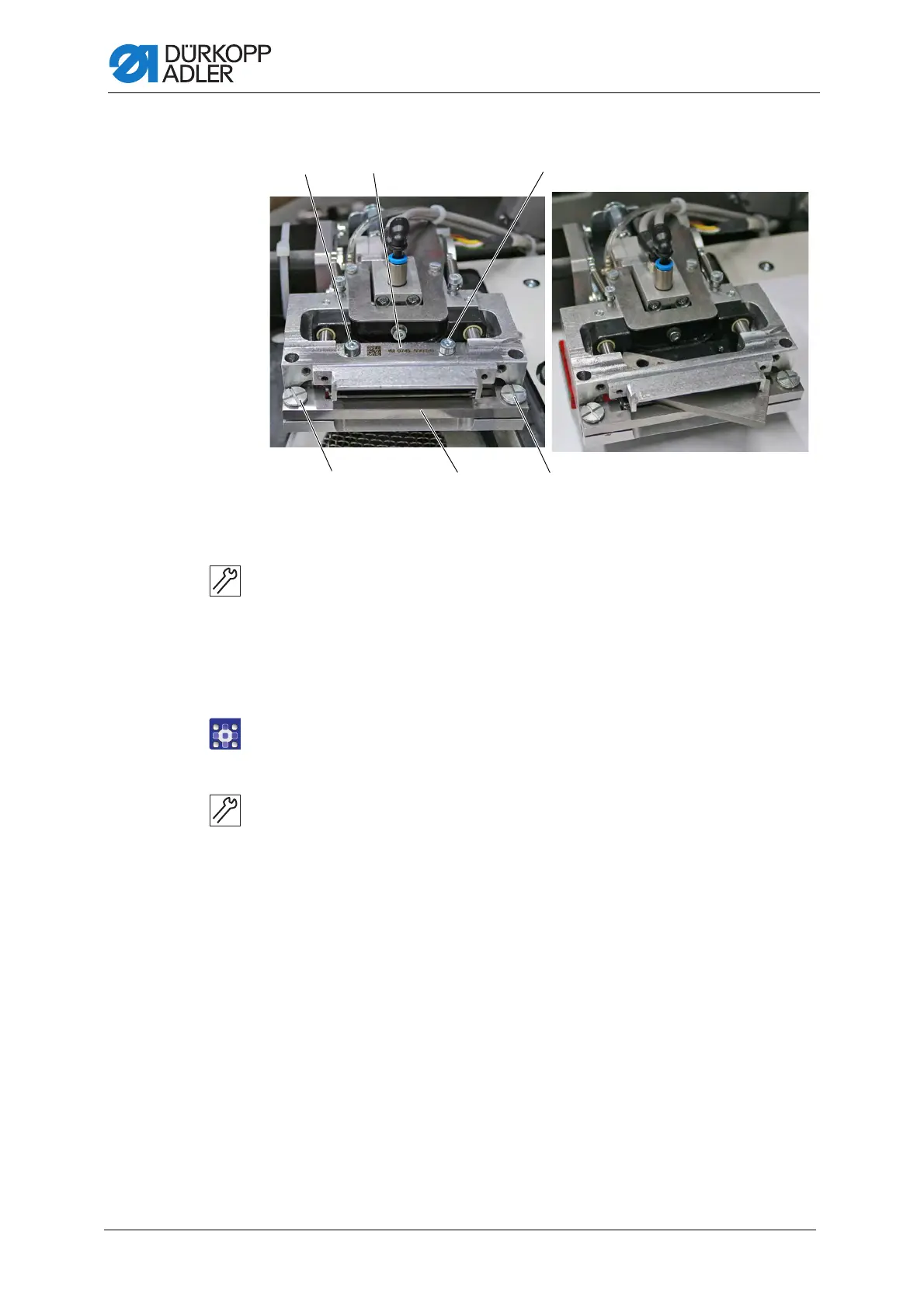

Fig. 224: Changing the knives (2)
5. Loosen the screws (3).
6. Remove the old knife (4) from the support and insert the new knife.
7. Loosen the screws (5).
8. Remove the old counter blade (6) and insert the new counter blade.
9. Tighten the screws (5) until knife (4) and counter blade (6) are set to
the cutting position.
10. Open the menu Service > Machine test > Test tape feeder
to test the tape feeder for proper operation.
11. Readjust the knife setting if necessary.
12. Reinsert the tape feeder.
13. Tighten screws (1) and (2).
Make sure that the height of the tape feeder does not shift.
(3) - Screws
(4) - Knife
(5) - Screws
(6) - Counter blade
