Aligning the machine head

22 Service Instructions 755 A/756 A - 00.0 - 02/2019

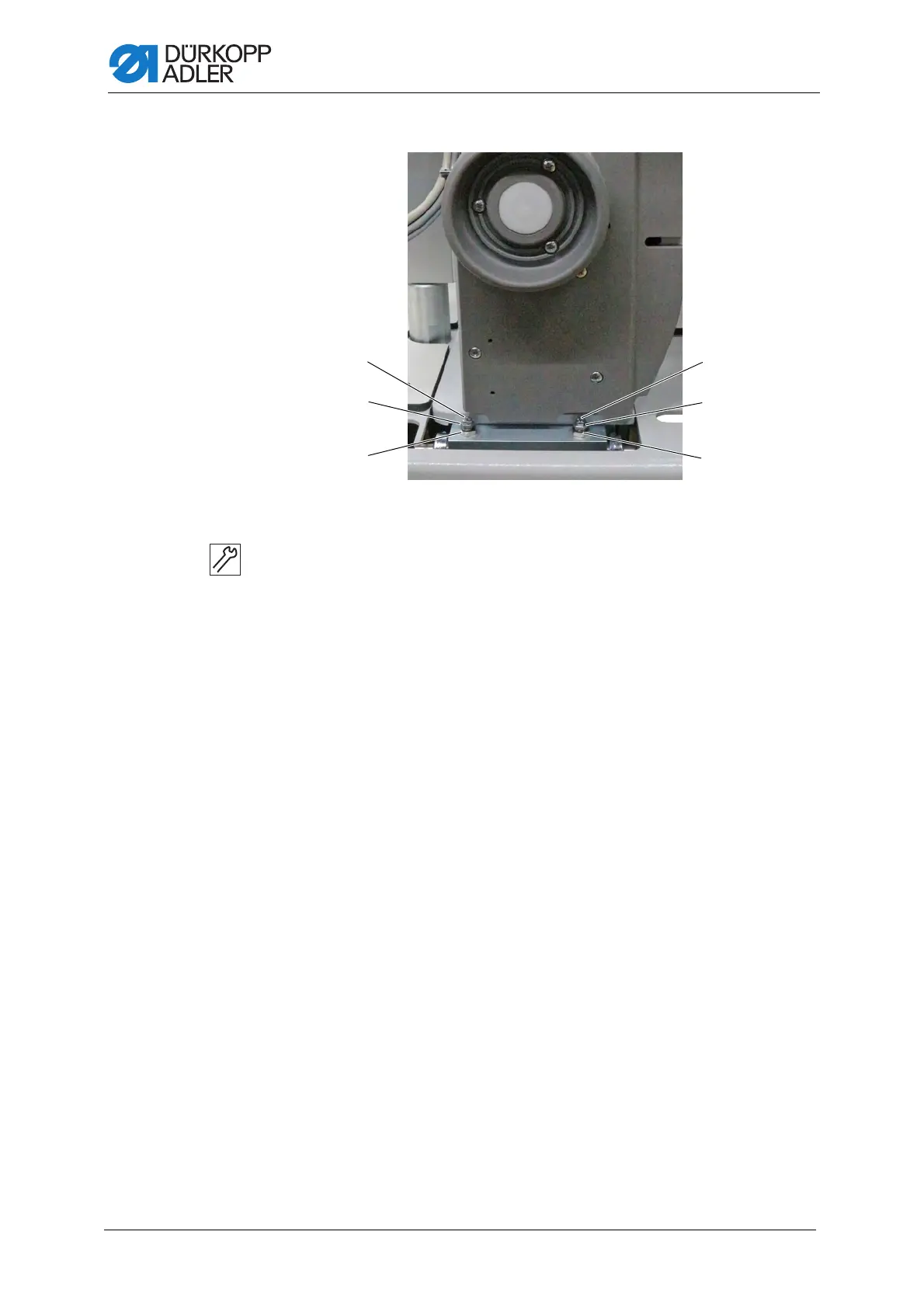

Fig. 8: Aligning the machine head (2)

4. Loosen the screws (4).

5. Loosen the nuts (6).

6. Use the screws (5) to set the machine head.

7. Tighten the nuts (6).

8. Tighten the screws (4).

(4) - Screws

(5) - Screws

(6) - Nuts
