Programming

322 Service Instructions 755 A/756 A - 00.0 - 02/2019

Corner knife (slanted pocket, automatic corner knife station)

Important

Before you can set the corner knife parameters for the slanted pocket,

you must select the option Straight/Slanted pocket or automatic corner

knife station in the submenu Corner knife device in the Machine

configuration ( p. 348). After making the conversion in the

Machine configuration, you must restart the machine.

The display switches to Corner knife (Slanted pocket).

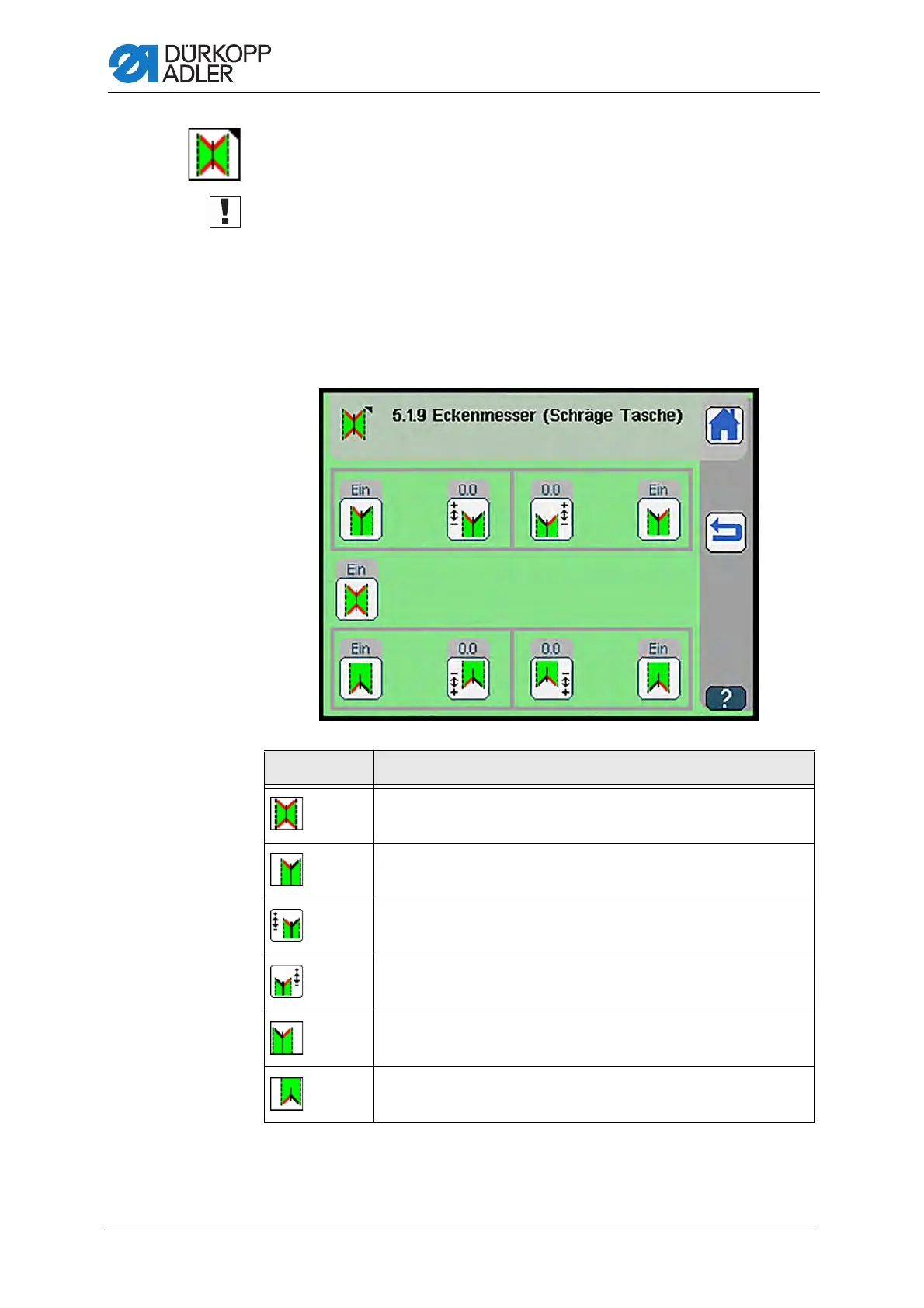

Fig. 304: Corner knife (slanted pocket)

Symbols Meaning

All corner knives UP/DOWN

Corner knife seam begin. left UP/DOWN

Correction seam begin. left  p. 323

• -9.9 mm - 9.9 mm

Correction seam begin. right  p. 323

• -9.9 mm - 9.9 mm

Corner knife seam begin. right UP/DOWN

Corner knife seam end left UP/DOWN
