Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 367

2. Enter the desired value using the numeric keypad.

3. Confirm with OK.

Test roll-off device

 The display switches to Test roll-off device.

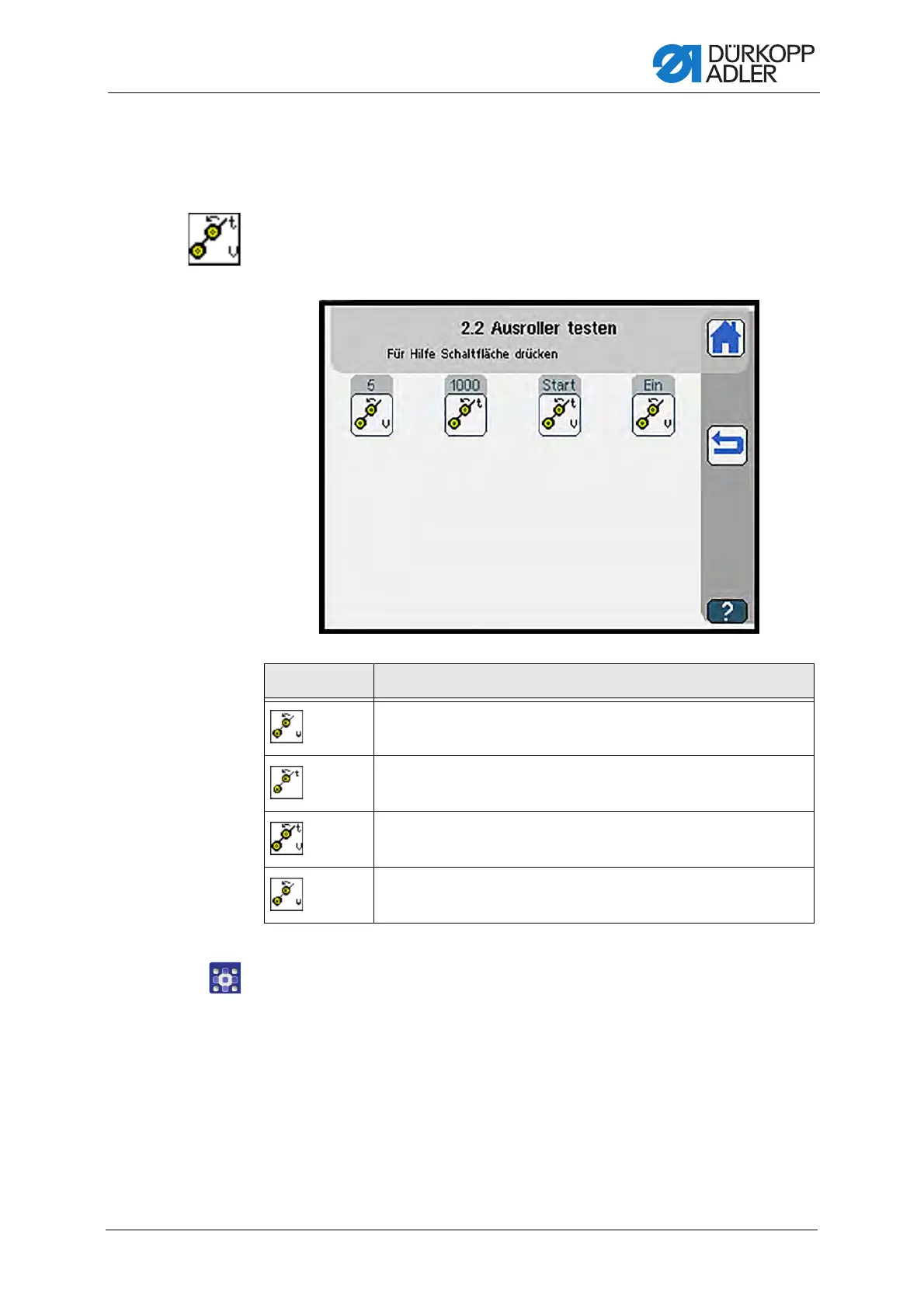

Fig. 337: Testing roll-off device

To test the roll-off device:

1. Press the desired button.

2. Enter the desired value using the numeric keypad.

3. Confirm with OK.

Symbols Meaning

Set roll-off speed

•1 - 15

Test duration of roll-off device

•0ms - 1000ms

Start roll-off test

Roll-off On/Off
