· If the width of the printing area set by
GS L
and
GS W
less than the width
required by the data sent with the
ESC
*
**
* command, the following will be
executed on the line in question (but the printing cannot exceed the maximum
printable area):
① The width of the printing area is extended to the right to accommodate the
amount of data.
② If step ① does not provide sufficient width for the data, the left margin is
reduced to accommodate the data.
For each bit of data in single-density mode (
m
=0, 32), the printer prints two
dots (two half dot for the slip): for each bit of data in double-density mode
(
m
=1, 33), the printer prints one dot (one half dot for the slip). This must be
considered in calculating the amount of data that can be printed in one line.
· After printing a bit image, the printer returns to normal data processing mode.
· This command is not affected by print modes (emphasized, double-strike,
underline, character size, white/black reverse printing, or 90° rotated character
etc.), except upside-down printing mode.

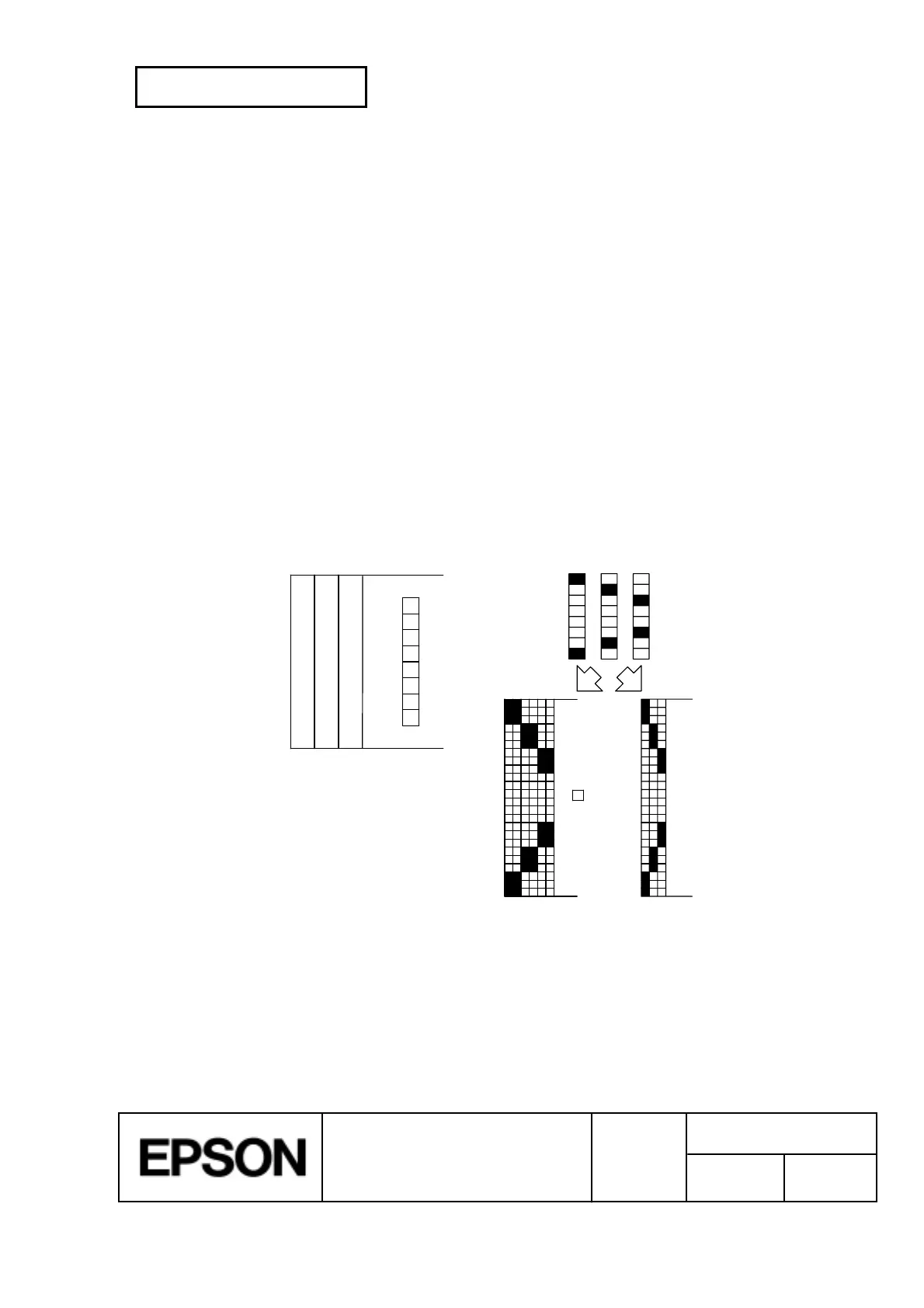

· The relationship between the image data and the dots to be printed is as
follows:
· 8-dot bit image for the receipt paper
MSB
d1
LSB
d2 d3
Print data
Bit-image data
d1 d2 d3
Bit-image data
Print data
1 dot
Single density Double density
