② Special characters are defined by combining two characters "{" and one
character. The ASCII character "{" is defined by transmitting "{" twice
consecutively.
Transmit data
Specific character ASCII Hex Decimal
SHIFT {S 7B, 53 123,83
CODE A {A 7B, 41 123, 65
CODE B {B 7B, 42 123, 66
CODE C {C 7B, 43 123, 67
FNC1 {1 7B, 31 123, 49
FNC2 {2 7B, 32 123, 50
FNC3 {3 7B, 33 123, 51
FNC4 {4 7B, 34 123, 52
“{“ {{ 7B, 7B 123, 123

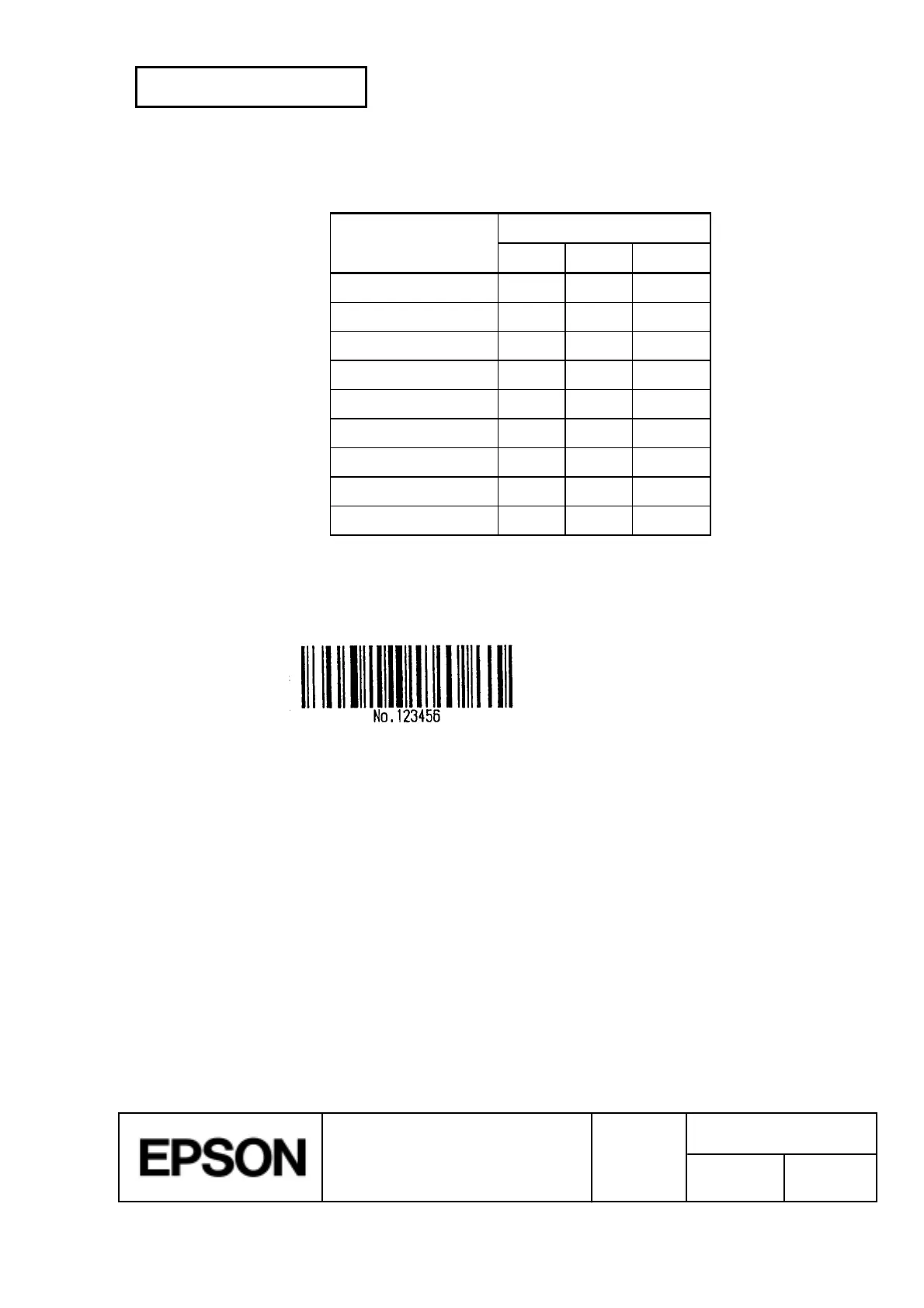

[Example] Example data for printing "No. 123456"
In this example, the printer first prints "No." using CODE B, then prints the
following numbers using CODE C.
GS k
73 10 123 66 78 111 46 123 67 12 34 56
· If the top of the bar code data is not the code set selection character, the printer
stops command processing and processes the following data as normal data.
· If combination of "{" and the following character does not apply any special
character, the printer stops command processing and processes the following
data as normal data.
· If the printer receives characters that cannot be used in the special code set,
the printer stops command processing and processes the following data as
normal data.
· The printer does not print HRI characters that correspond to the shift characters
or code set selection characters.
· HRI character for the function character is space.
· HRI characters for the control character (<00>H to <1F>H and <7F>H) are
space.
<Others> Be sure to keep spaces on both right and left sides of a bar code. (Spaces are
different depending on the types of the bar code.)
[Reference]
GS H
,
GS f
,
GS h
,
GS w
, Appendix H
