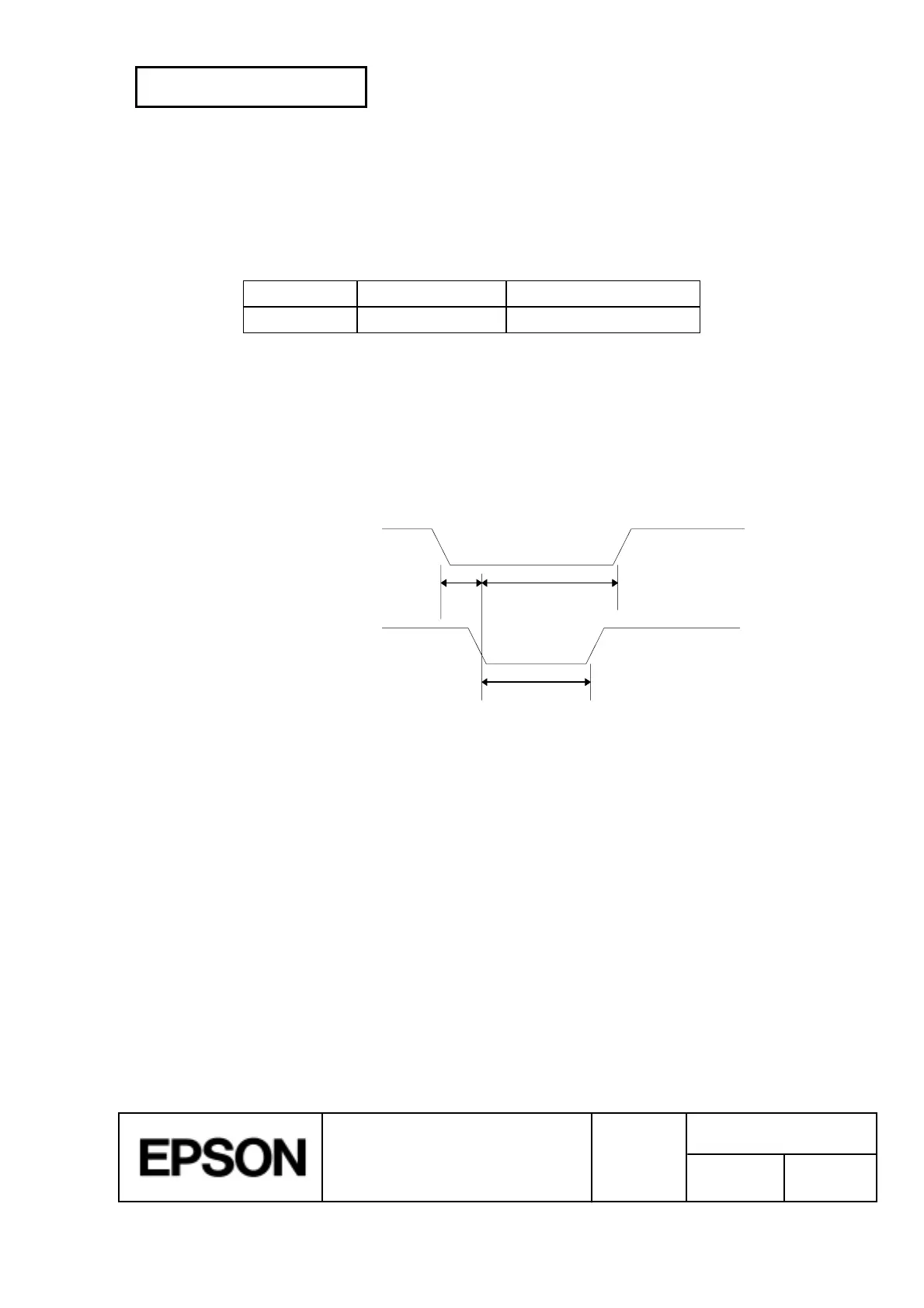

2.1.2.6 Notes on resetting the printer through the interface
The printer reset is available through the interface nInit signal (#31 pin) by changing the DIP
switch setting. (Refer to Table 3.3.5 DIP Switch 2.)
Table 2.1.5 DIP Switch Setting for Printer Reset
Signal Line DIP Switch Reset Condition
#31 Pin (nInit) DSW 2-8: ON TTL-LOW level input
The printer reset through the nInit signal is only available with the SelectIn(1284-Active) signal at
LOW.
To enable the printer reset, the following signal timing shall be satisfied.
Minimum reset pulse width T
R
: 50
m
mm
m
s (min)
NSelectIn
(1284-Active)
nInit
min. 0
min. 1ms
min. 50
m
s
T
R
