Specification
(STANDARD)
DATA Data n Data n+1
nStrobe
Busy Peripheral Busy
nAck
tHold-1
tHold-2tSTBtSetup
tBUSYtReady
tNext
tnBUSYtACKtReply

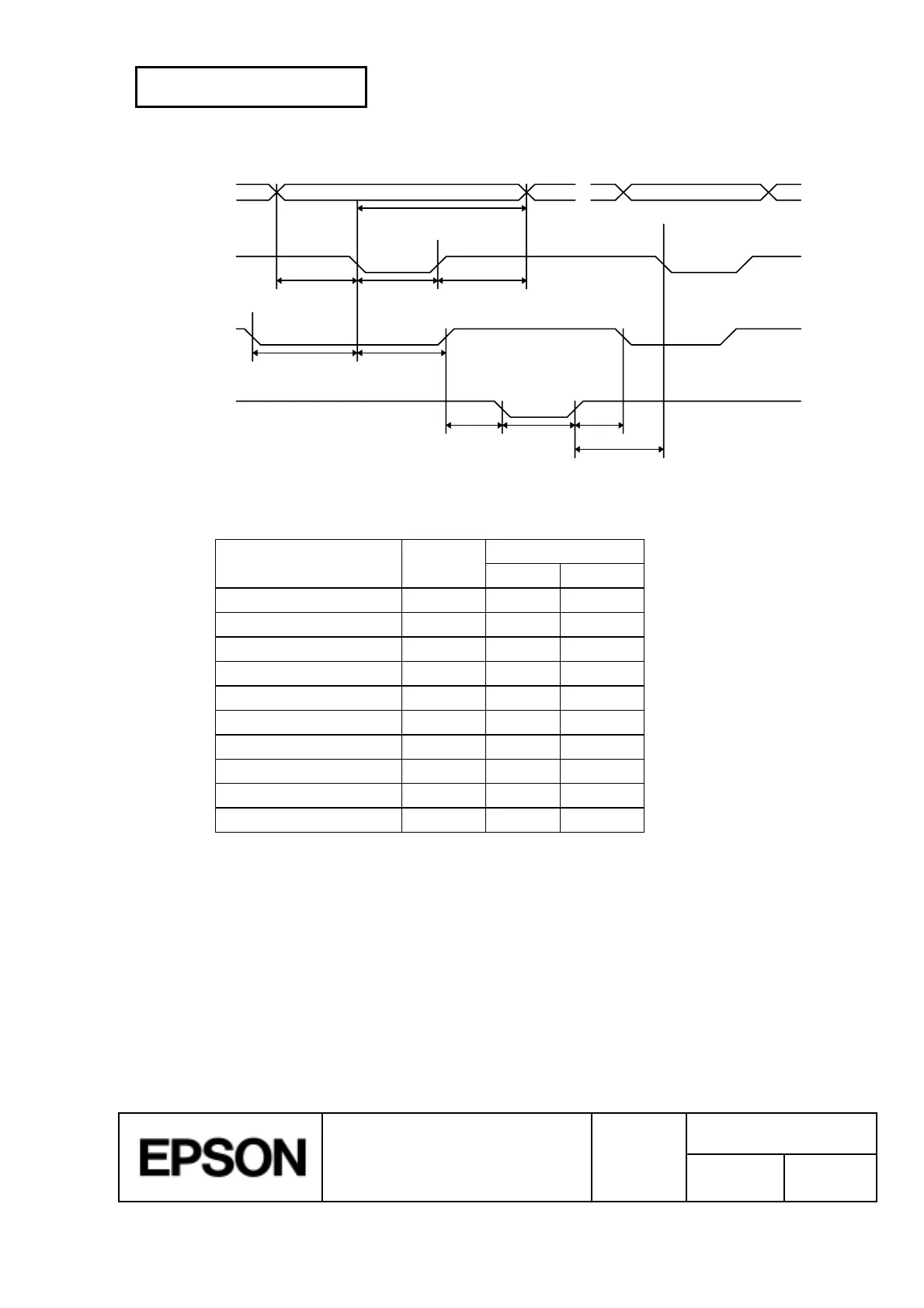

2.1.2.5 Data Receiving Timing (Compatibility Mode)
Specifications
Characteristics Symbol
Min[ns] Max[ns]
Data Hold Time (host) tHold-1 -- 500
Data Hold Time (printer) tHold-2 -- --
Data Setup Time tSetup -- 500
STROBE Pulse Width tSTB -- 500
READY Cycle Idle Time tReady -- --
BUSY Output Delay Time tBUSY 0 500
Data Processing Time tReply 0 ¥
ACKNLG Pulse Width tACK 500 10ms
BUSY Release Time tnBUSY 0 ¥
ACK Cycle Idle Time tNEXT -- 0
*The printer latches data at a nStrobe ¯ timing
