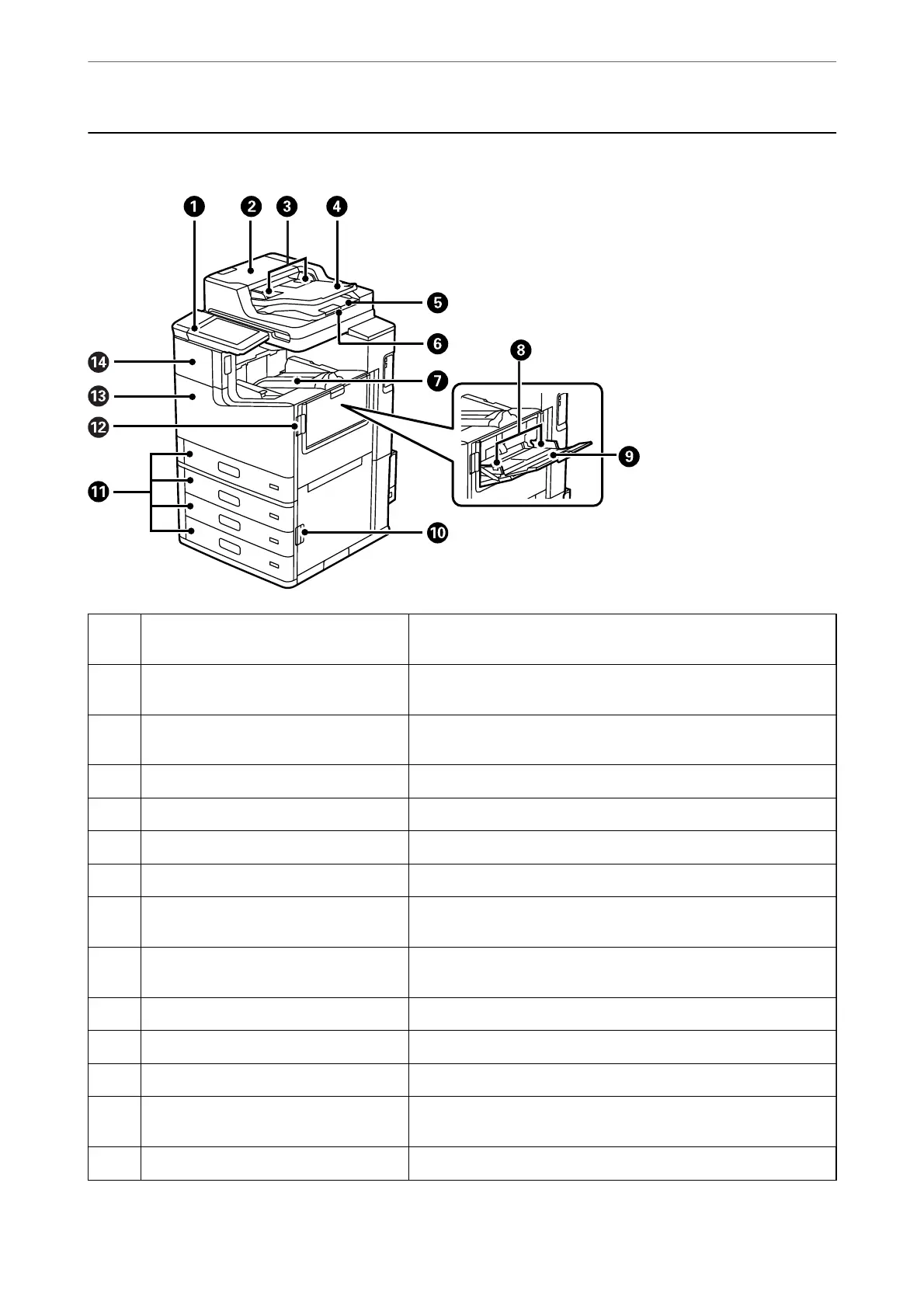

Front
A
Control panel Allows you to make settings and perform operations on the printer.
Also displays the printer’s status.
B
ADF (Automatic Document Feeder) cover
(F)
Open when removing jammed originals in the ADF.
C
ADF edge guide Feeds originals straight into the printer. Slide to the edge of the
originals.
D
ADF input tray Feeds originals automatically.
E
ADF output tray Holds originals ejected from the ADF.
F
Stopper Prevents the ejected originals from falling from the ADF output tray.
G
Face down tray (K) Holds the ejected paper.
H
Edge guide Feeds the paper straight into the printer. Slide to the edges of the
paper.
I
Paper tray (B) Loads paper. You can load all types of paper (thick paper and
envelopes) that can be used in this printer.
J
Cover (E) Open when paper is jammed.
K
Paper cassette 1, 2, 3, 4 (C1, C2, C3, C4) Loads paper.
L
Cover (J) Open when paper is jammed.
M
Front cover (L) Open when removing jammed paper or when replacing the
maintenance box.
N
Ink cartridge cover (A) Open when replacing the ink cartridge.
Part Names and Functions
>
Front
22
