112
ELECTRICAL AND IGNITION
IGNITION COIL SERVICING

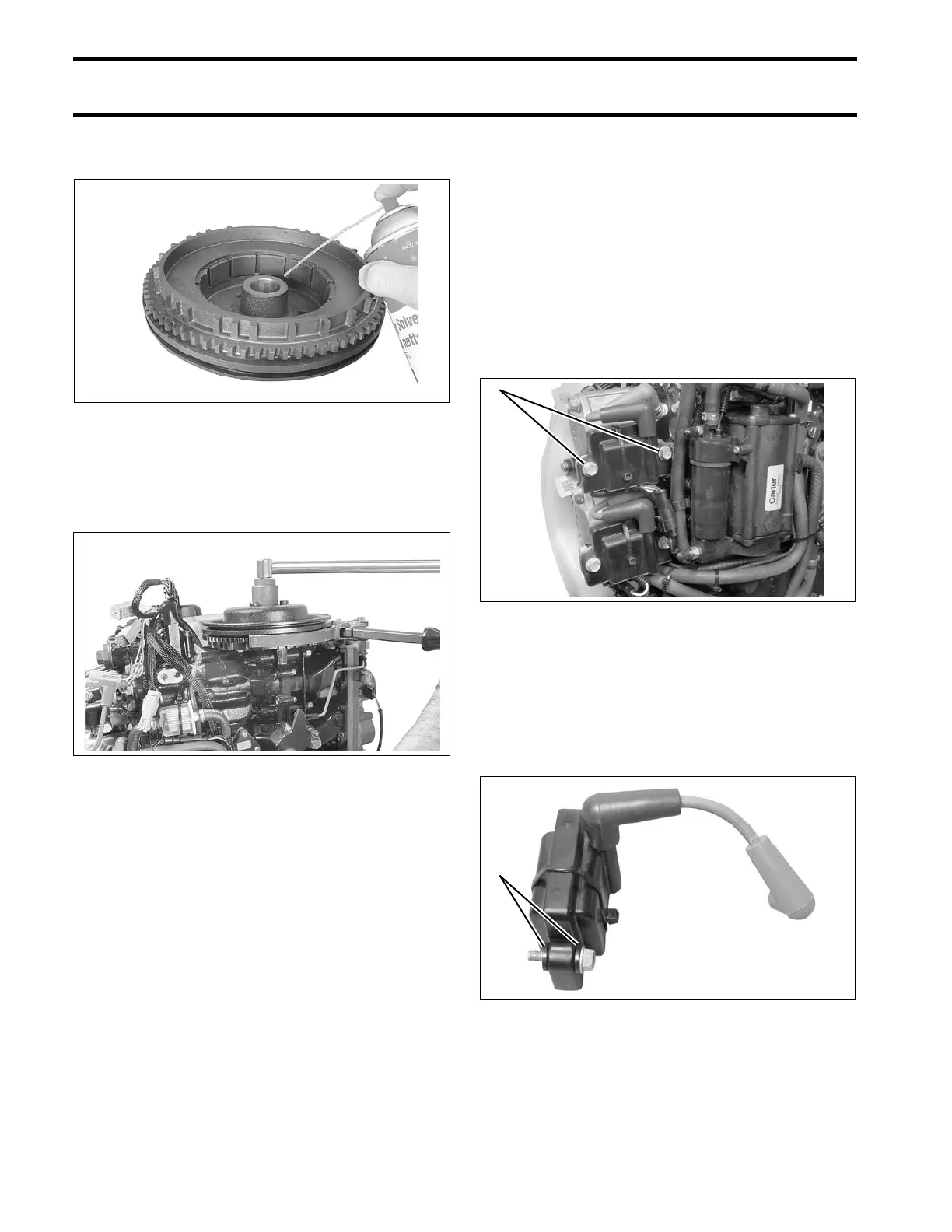

Thoroughly clean t he crankshaf t and f lywheel
tapers with Cleaning Solvent and let dry.
Align the f lywheel keywa y a nd inst all flywhee l.
Coat the threads of flywheel nut with Triple-Guard
grease. Install the washer and nut and tighten to a
torque of 100 to 115 ft. lbs. (136 to 156 N·m).
Replace flywheel co ver and recoil st arter (rope
start models).
IMPORTANT: Check ignition timing af ter fly-
wheel removal or replacement. Refer to TIMING
ADJUSTMENTS on p. 113.
IGNITION COIL
SERVICING
Ignition Coil Removal
Remove spark plug lead from ignition coil and dis-
connect ignition coil electrical connector.
Remove two ignition coil retaining screws.
Do not lose the rubber washers between coil and
bracket.
Ignition Coil Installation
Install one rubber wa sher on each screw and
install screw through ignition coil.
Install remaining rubbe r washers on scre ws
between coil and bracket.
Install coil on bracket. Tighten screws to a torq ue
of 60 to 84 in. lb. (7 to 9.5 N·m).
Install spark plug lead on ignition coil and connect
ignition coil electrical connector.
002093
002090
1. Screws 008187
1. Rubber washers 008188
