POWERHEAD ASSEMBLY
10

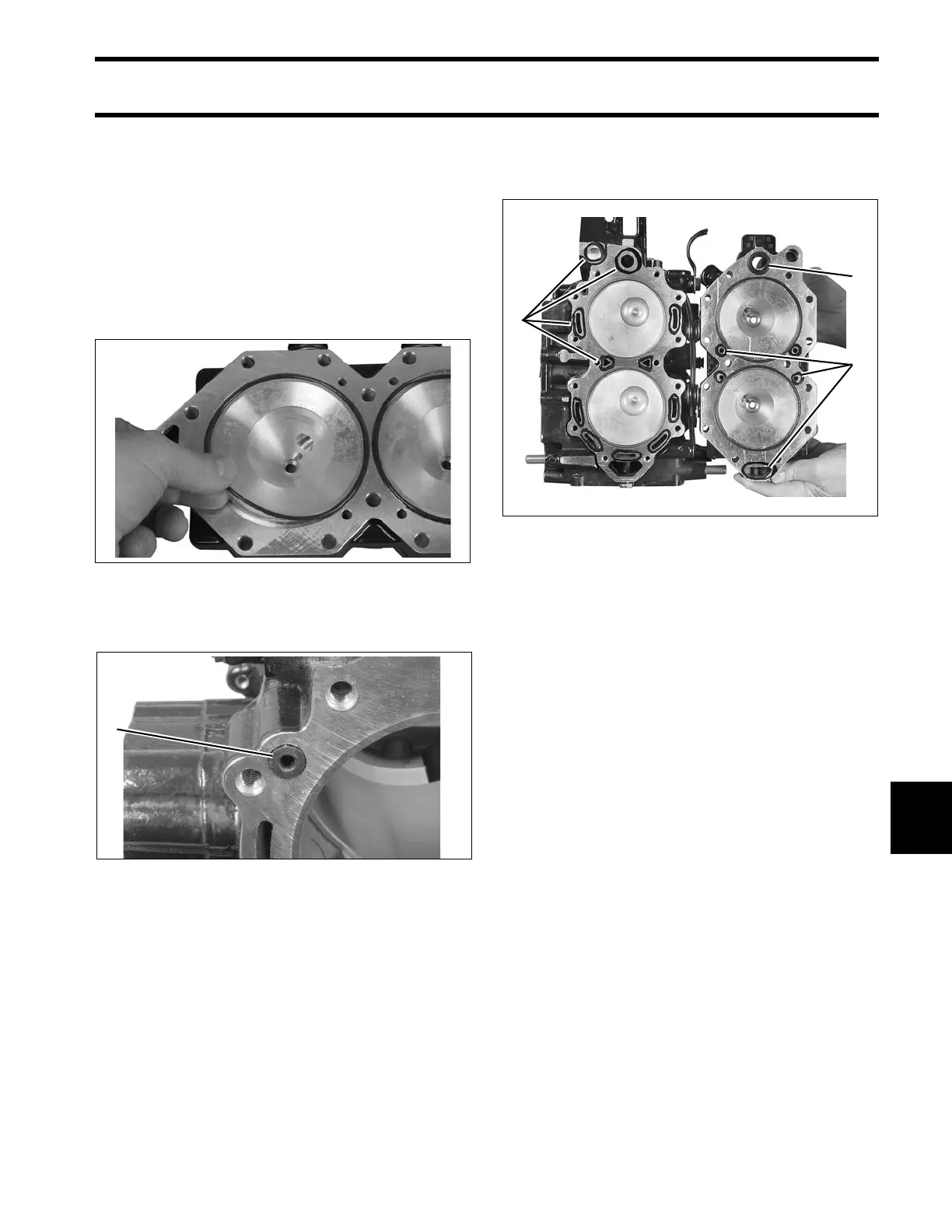

Cylinder Head Installation
Install a new thermostat seal in cylinder head with
side marked “TO CYL HEAD” facing toward ther-
mostat.
Refer to THERMOSTAT SERVICING on p . 182
before installing cylinder head.
Lightly lub ricate new cylinder head O-rings with
Triple-Guard grease and install in cylinder head.
Apply soa py water to water dam and insert into
block.
Apply a 1/16 in. (2 mm) be ad of RTV Adhesive
around each water passage on the block and cyl-
inder head as shown.
Install cylinder hea d with the thermostat to ward
the top. Place ig nition coil bracket s as shown
below.
Apply outb oard lu bricant to screw thre ads an d
install the cylinder head screws. DO NOT use any
sealant or locking compound on threads.
002061
1. Water dam 002062
1. RTV sealant
2. Thermostat seal
002272
