251
MIDSECTION
STERN BRACKET, 40 – 60 HP POWER TILT
11
the hole in the outer ho using and th e alignment
pin into the adapter housing.
Apply Gasket Sealing Compound to threads of the
four retaining screws and tighten to a torque of 60
to 84 in. lbs. (7 to 9.5 N·m).
STERN BRACKET,
40 – 60 HP Power Tilt

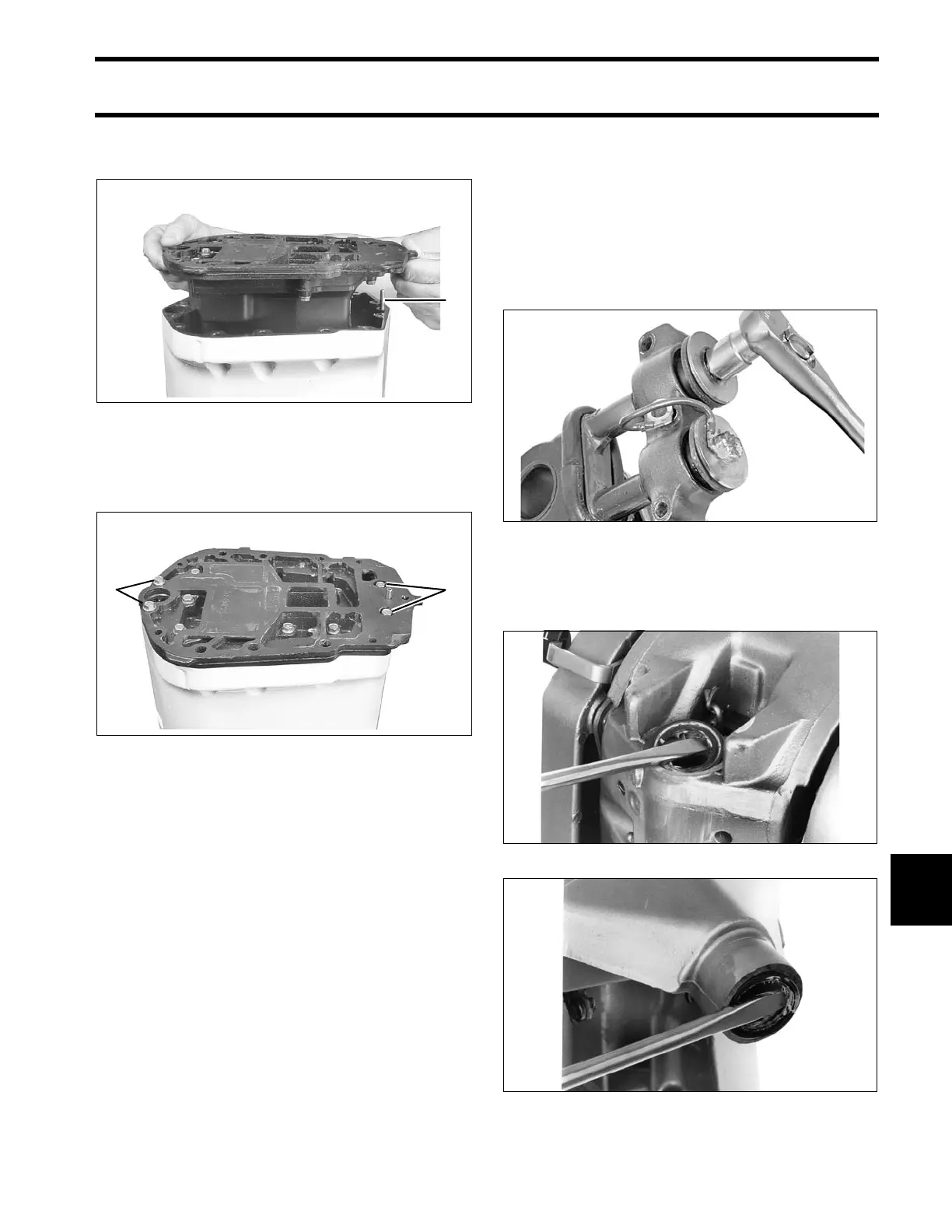

Stern Bracket Disassembly
Remove th e bumpers from th e uppe r mou nt
retaining screws. Remove the screws, upp er
mount, and ground lead from the bracket.
Pull the steerin g arm out of the swivel bra cket.
Use an appropriate tool to pry the upper and lower
seals from the swivel bracket.
1. Alignment pin 001980
1. Adapter retaining screws 001981
17505
COA2957
COA2958
