277
MIDSECTION
TILLER HANDLE SERVICE – LONG HANDLE
11
TILLER HANDLE
SERVICE – Long Handle

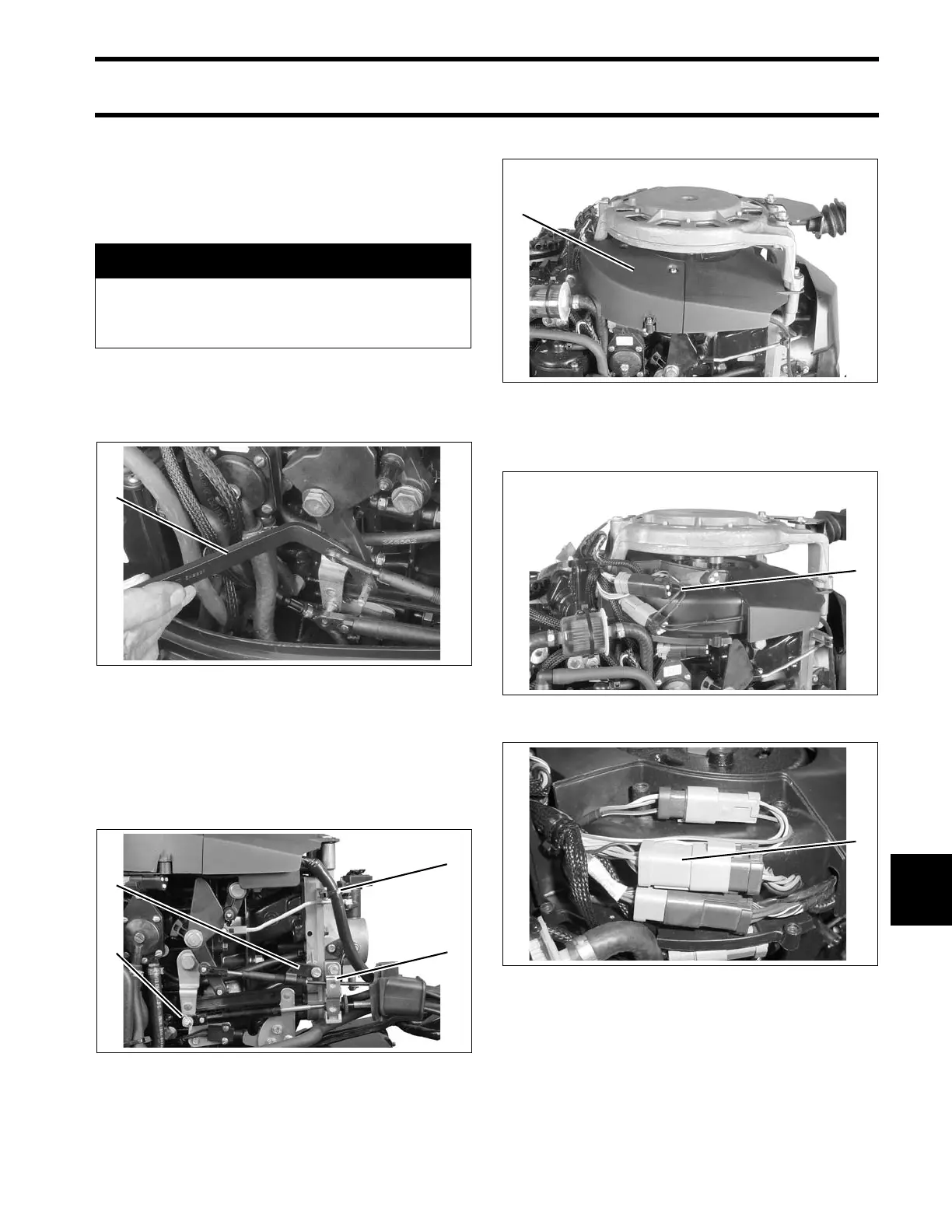

Removal
Use Ba ll Socket Re mover tool, P/N 342226, to
unsnap the throt tle cable clip from t he thrott le
lever.
.
Remove the th rottle cable anchor scre w a nd
washer. Loosen throttle cable retainer screw. And,
remove the tie strap holding the tiller handle elec-
trical harness.
Remove retainer clip from shift cable.
Remove the electrical cover.
Disconnect the electrical harness coming from the
tiller handle.
Remove shift and throttle cables and wire harness
from grommet in lower engine cover.
A WARNING
To avoid accidental starting of engine
while servicing, twist and remove all spark
plug leads.
1. Remover tool 005121
1. Throttle cable anchor
2. Shift cable retainer clip
3. Cable retainer
4. Tie strap
006745
1. Electrical cover 002509
Rope Start models
1. Electrical harness connector
002511
Tiller Electric models
1. Electrical harness connectors
001999
