271
MIDSECTION
TILLER HANDLE SERVICE – STANDARD
11
TILLER HANDLE
SERVICE – Standard

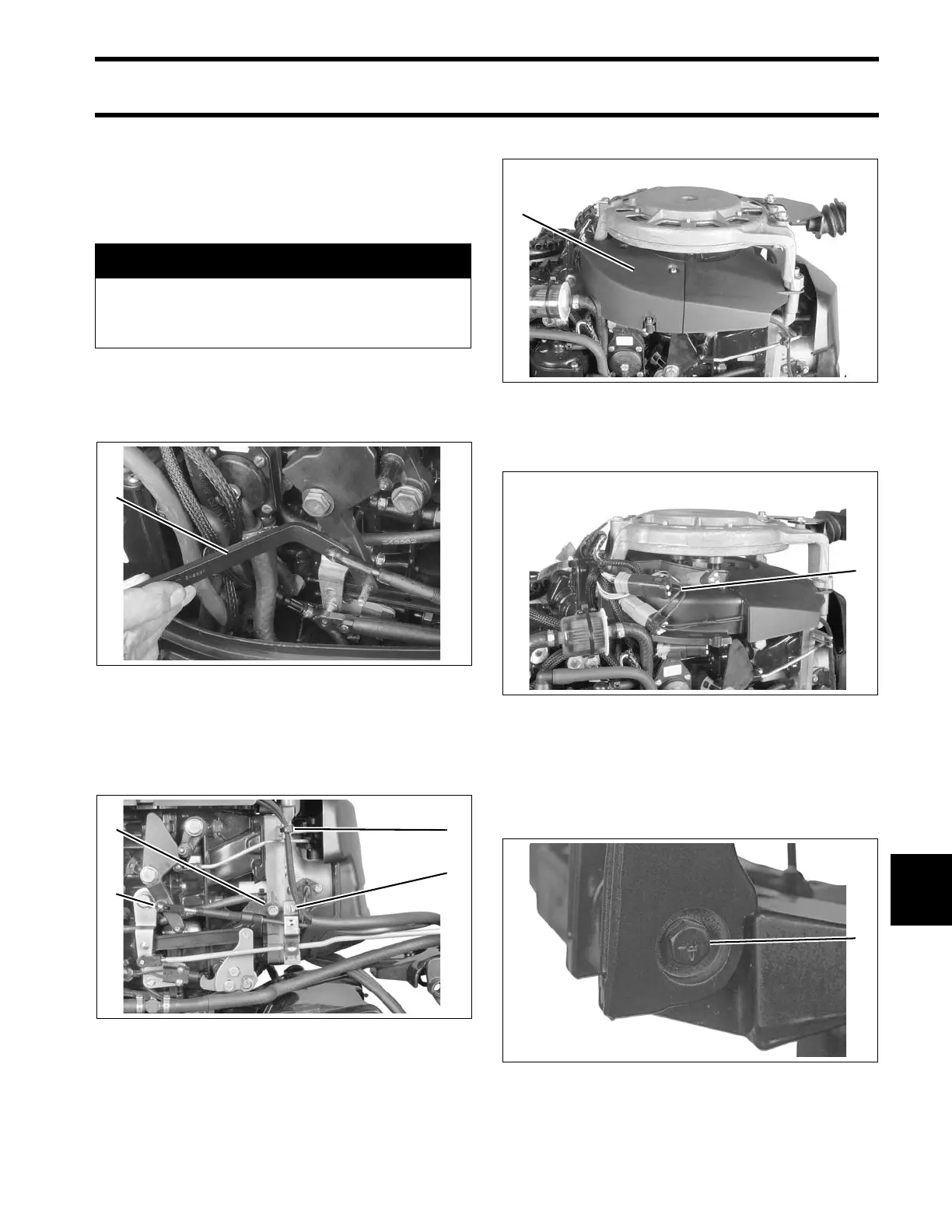

Removal
Use Ba ll Socket Re mover tool, P/N 342226, to
unsnap the throt tle cable clip from t he thrott le
lever.
Remove the th rottle cable anchor scre w a nd
washer. Loosen throttle cable retainer screw. And,
remove the tie strap holding the tiller handle elec-
trical harness.
Remove the electrical cover.
Disconnect the electrical harness coming from the
tiller handle.
Remove throttle cable and wires from grommet in
lower engine cover.
Remove the scre w attaching steering h andle.
Remove handle.
A WARNING
To avoid accidental starting of engine
while servicing, twist and remove all spark
plug leads.
1. Remover tool 005121
1. Cable anchor screw and washer
2. Cable retainer screw
3. Clip
4. Tie strap
002207
1. Electrical cover 002509
1. Electrical harness connector 002511
1. Screw 31194
