168
OILING SYSTEM
OILING SYSTEM TESTS

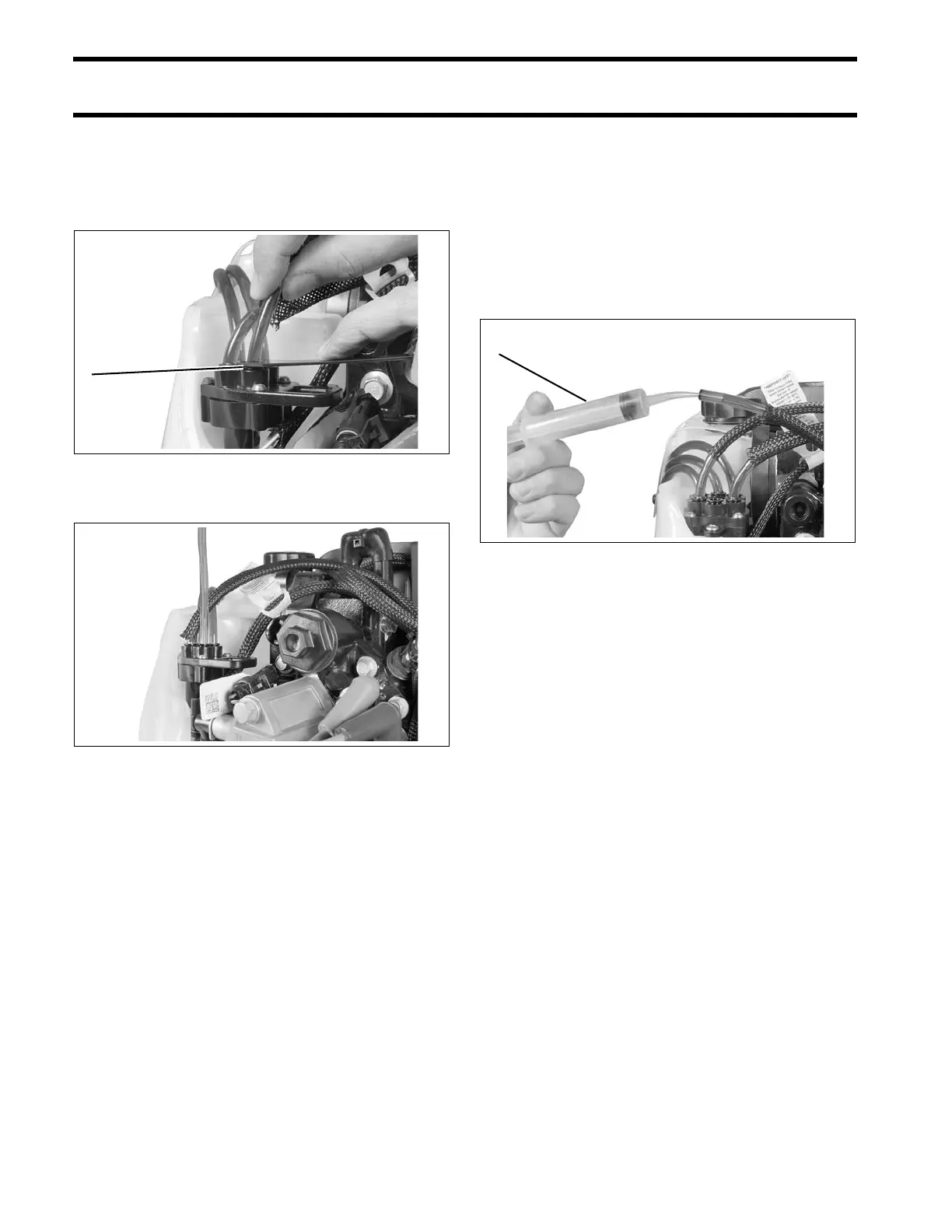

Oil Injection Pump Function Test
Remove oil distribution hose from fitting at oil dis-
tribution manifold. Do not lose the brass hose sup-
port.
Temporarily install a length of oil hose.
Start the outboard and observe oil flow:
• Oil flows from hose, compare to oil flow at other
distribution fittings
• If one or more fittings fail to flow oil, replace the
oil injection pump assembly.
Reinstall hose into manifold.
IMPORTANT: Make sure ho se su pport is in
hose a nd ho se is f ully in serted int o ma nifold.
Refer to Oil Distribution Hoses on p. 169.
Oil Injection Fittings Flow Test
Make sure the oil injection fittings of the cylinder
and crankcase assembly allow fluid to move.
Remove oil distributio n hos e from o il distribution
manifold.
Use a Syringe, P/N 346936, filled with isop ropyl
alcohol to force fluid through hose and fitting.
LOW OIL Sending Unit Test
Remove oil from the oil tank.
Turn th e ke y switch ON. The d ash mount ed
Engine Monitor syst em should show a LOW OIL
warning.
Once the warning has been confirmed, refill the oil
tank and start the outboard. The LOW OIL warn-
ing should stop after the oil pump cycles 3 times.
1. Retainer mechanism 008067
008068
1. Syringe 008069
