261
MIDSECTION
STERN BRACKET, 40 – 60 HP MANUAL TILT
11

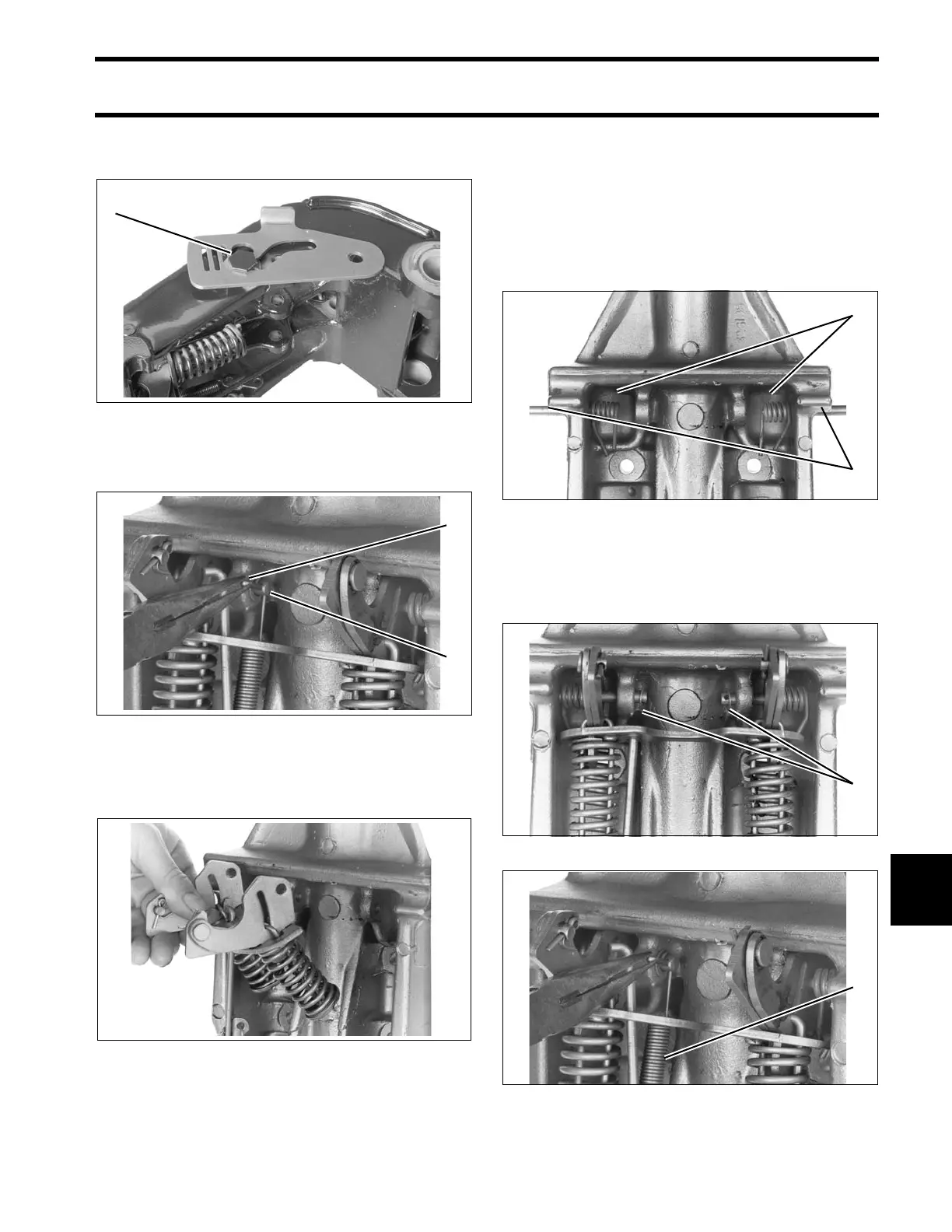

Remove the st arboard sto p link retaining screw
and nut from the swivel bracket.
Remove the co tter pins from both reverse lock
pins. Remove the reverse lock pins and springs.
Remove the reve rse loc k assembly from the
swivel bracket.
Stern Bracket Assembly
Place the reve rse lock sp rings in the swive l
bracket. Insert the reverse lock pins in the swive l
bracket and p art wa y throu gh the reverse lock
springs. Place the reverse lock assembly between
the springs. Push the pins through the springs and
the reverse lock assembly.
Install the washers on the reverse lock pins. Install
the link spring on the port pin. Install the two cotter
pins in the reverse lock pins.
1. Starboard stop link screw 002205
1. Cotter pin
2. Reverse lock pin
COA2979
COA2980
1. Reverse lock springs
2. Reverse lock pins
COA2981
1. Washers COA2982
1. Link spring COA2979
