MIDSECTION
TILLER HANDLE SERVICE – STANDARD
11

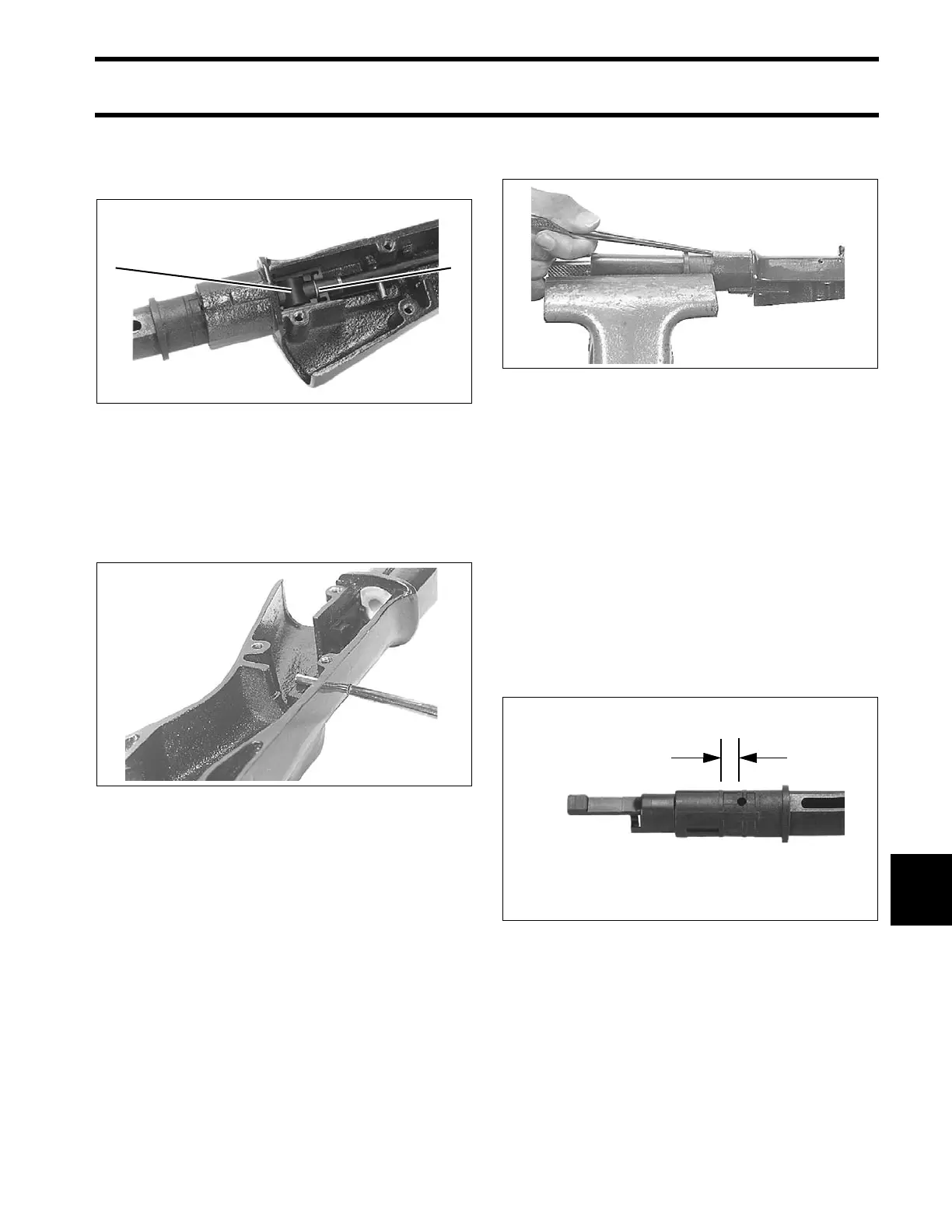

Remove the th rottle cable re taining clip. Pry the
cable trunnion o ut of t he steerin g han dle a nd
remove cable.
IMPORTANT: DO NOT remove the inner handle
except to replace it.
Use a punch and mallet to drive ou t the steel p in
holding the inner handle into the steering handle.
Remove the p lastic inner hand le f rom t he met al
outer handle by driving the outer handle off with a
mallet and a punch. Inner handle is bonded to the
outer handle. After removing, chip away remnants
of inner handle.
Remove throttle cable seal from the inner handle.
Inspection
Inspect the thrott le ca ble for kinks and wea r.
Replace if necessary.
Inspect the steering handle components for wear,
cracks, or damage. Replace parts if necessary.
Assembly
Install the throttle cable seal in inner handle.
If removed, apply Loctite Depend 300 adhesive to
inner handle at areas shown.
