208
POWERHEAD
POWERHEAD ASSEMBLY
Following seq uence st amped on cylinder he ad,
tighten all screws in stages to a torque of 168 to
192 in. lbs. (19 to 21.7 N·m).
Crankshaft and Connecting
Rod Installation
Apply Gasket Sealing Compound to lower oil seal
groove in cylinder block. DO NOT put any sealer
in upper seal groove.
Check that main bearing alignment dowel pins are
seated in the block.
Push all pistons t o the top of cylin ders. Re move
numbered connecting rod caps.
Gently lower crankshaft into place.
• Align t ab o n lower bearing seal housing with
hole in crankcase.
• Align upper oil seal in groove.
• Locate each main bea ring on it s dowel pin. A
mark place d on t he bea ring r ace o pposite t he
dowel pin ho le will help in the alignment p ro-
cess.

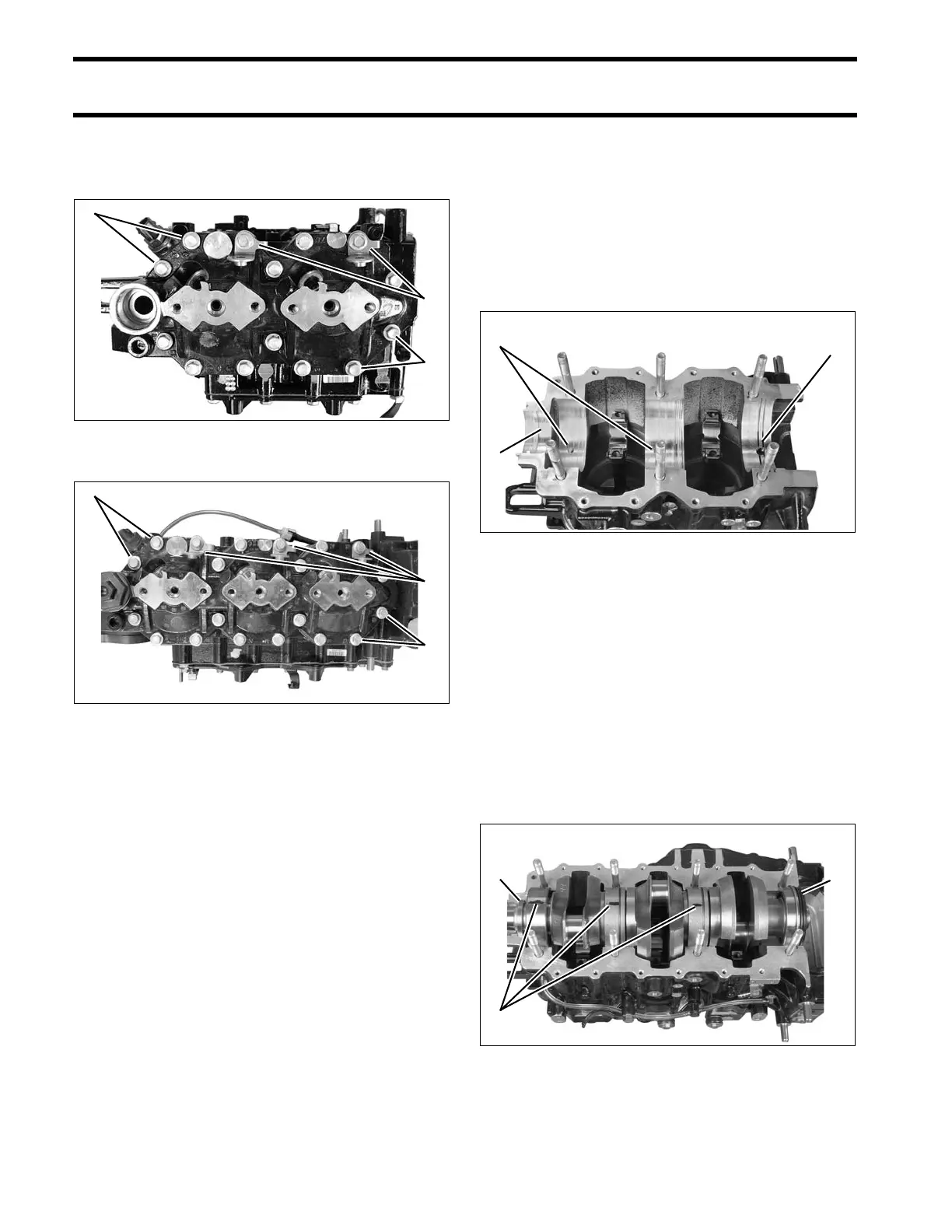

2-Cylinder Models
1. Cylinder head screws
2. Ignition coil bracket
007850
3-Cylinder Models
1. Cylinder head screws
2. Ignition coil bracket
008192
1. Gasket Sealing Compound
2. Dowel pins
3. No sealer here
002262
1. Lower seal housing
2. Upper oil seal
3. Alignment marks
002070
