ENGINE MANAGEMENT MODULE (EMM)
DESCRIPTION
DESCRIPTION
The Engine Manage ment Mo dule (EMM) is a
water-cooled e ngine controller . It contro ls many
outboard systems in cluding alternato r ou tput for
the 12 V and 55 V circuit s. Operating vo ltage is
supplied to the EMM by the stator.
This section discusses the functio ns of the EMM
and it s variou s in ternal and externa l sen sors. It
also de scribes using Evinrude Diagnostics sof t-
ware to retr ieve and adjust service information
saved in the EMM
EMM Functions
The EMM co ntrols the following pro cesses and
functions:
Alternator output; 55 V and 12 V
Fuel and ignition timing and duration
Fuel injector activation
Oil injector pump activation
Electric fuel pump control
Idle speed control
RPM limiter
Electrical circuit monitoring
Service code creation and storage
Warning system activation
ROM verification, self-test
Choke-less cold starting
Output of diagnostic data
Tachometer signal
RPM profile and engine hours
Oiling ratios
Exhaust water valve activation (60 - 65 HP)
EMM Connections
IMPORTANT: EMM connections an d wiring
must be clean and tigh t. Improper ele ctrical con-
nections can damage the EMM. DO NOT r un the
outboard with loose or disconnected wiring.
Make sure EMM connections are clean and tight.
Engine wire harness to EMM connectors; J1-A,
J1-B, J2
Stator to EMM connections; one 6-pin AMP and
J2 connector.
LED Indicators
The EMM has four LED indicators located next to
the electrical connectors that provide useful infor-
mation about the status of the system.
IMPORTANT: LED 1 is to ward the top of t he
outboard (Closest to EMM J1-B connector).
When the ignition key is turned ON, LEDs 3 and 4
should light, indicating that sensor circuits and the
stop circuit are working.
As the outbo ard is being started, all four LEDs
should light and then go off in sequence. If any of
the LEDs d oes NOT light during st arting, refer to
EMM LED INDICATORS on p. 77.
When the outboard is running, all LEDs should be
off. If any LED is lighted while the outboard is run-
ning, refer to EMM LED INDICATORS on p. 77.

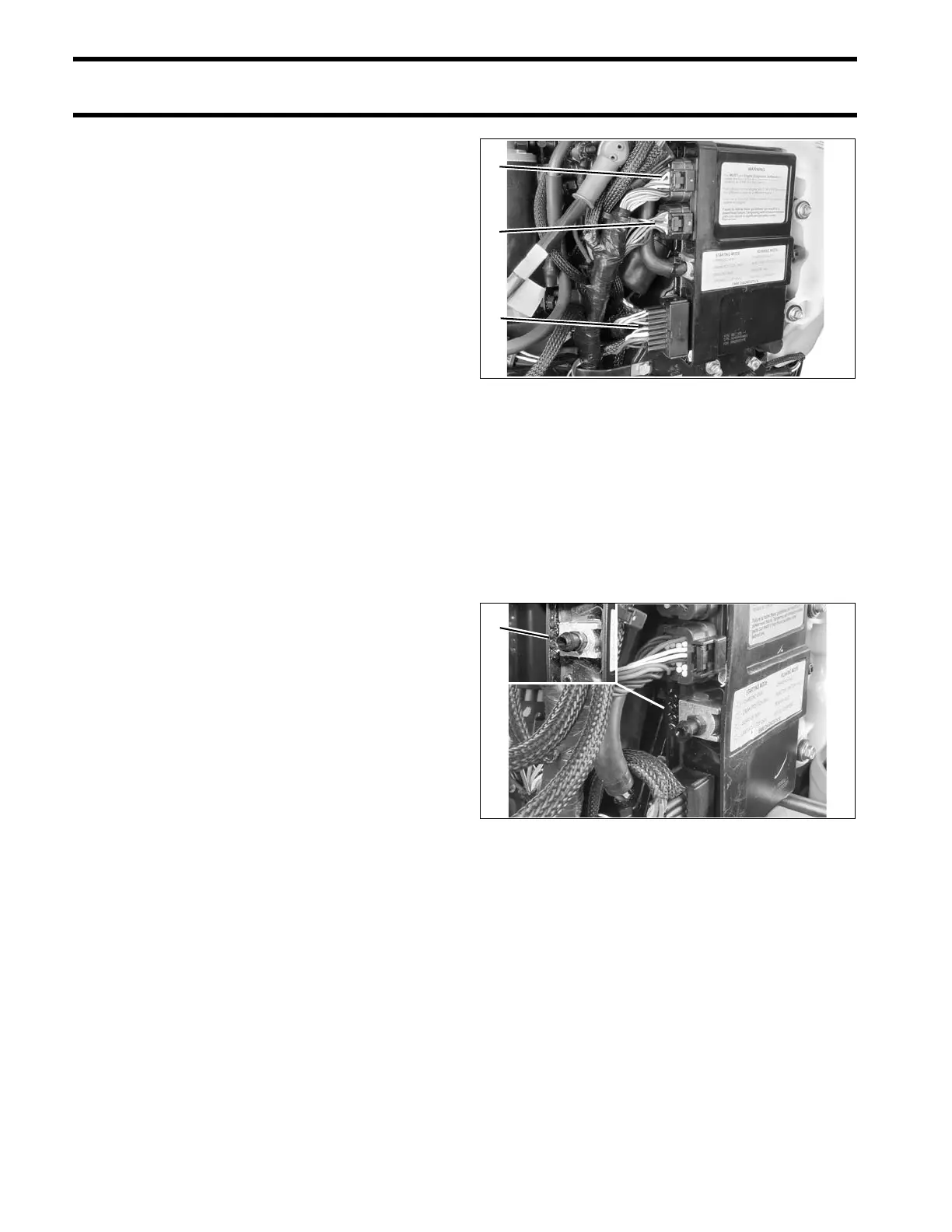

1. J1-A connector
2. J1-B connector
3. J2 connector
006487
1. LED indicators
(Cooling hose removed for clarity)
002429
006467
1
2
3
1
