276
MIDSECTION

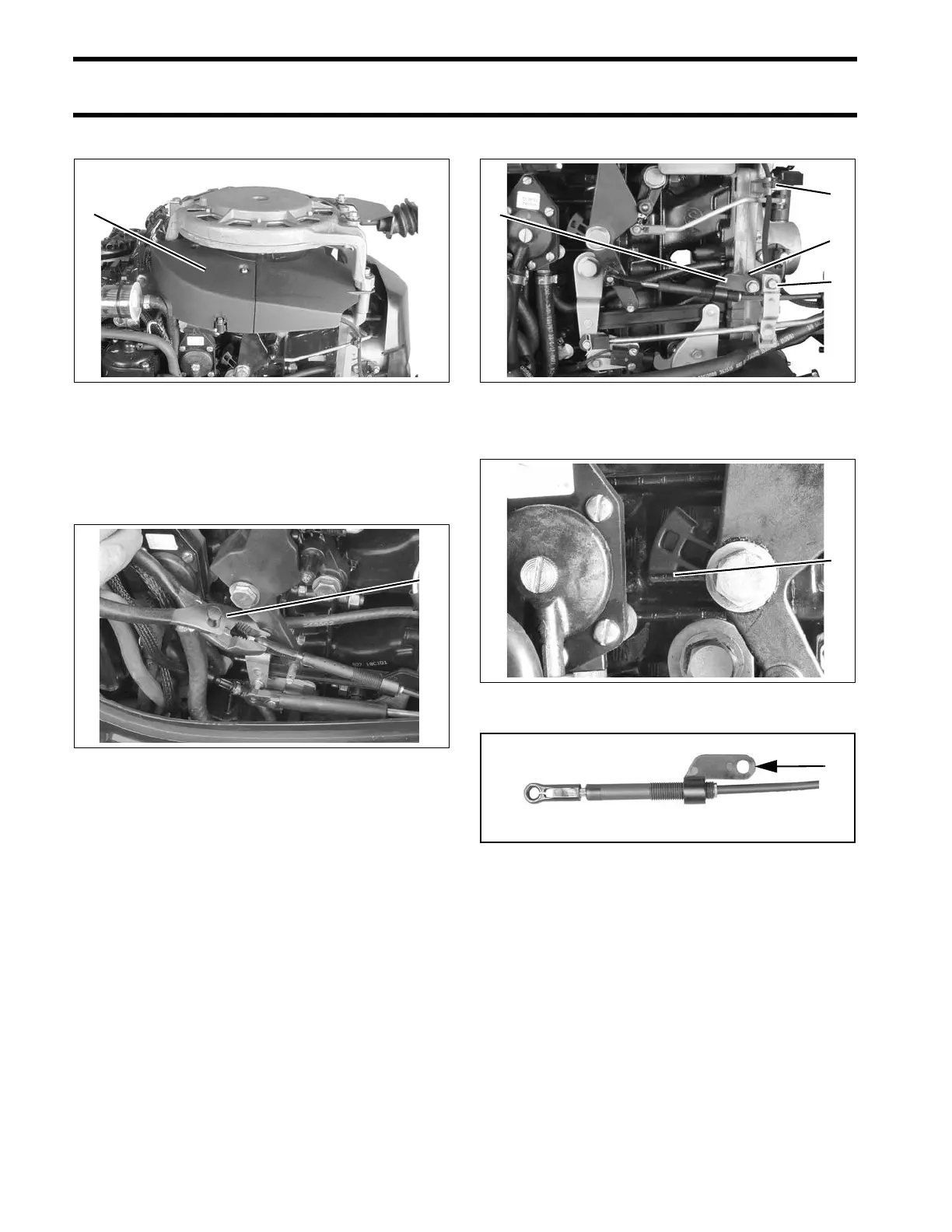

TILLER HANDLE SERVICE – STANDARD
Install electrical cover.
Throttle Cable Adjustment
Place t hrottle cab le in position. Use Ball Socket
Installer too l, P/N 342225, to snap t hrottle cab le
connector onto throttle lever.
Place throttle cable in upper anchor pocket. Install
cable retainer on anchor block.
Hold twist grip in full SLOW position. Pull firmly on
cable to remove backlash.
Adjust cable anchor so throttle cam is against idle
stop when anchor screw aligns with throttle bod y
boss. Th en, rotate a nchor fo ur turns to ward the
end of the cable.
Install washer, cable a nchor, and cable anchor
screw on t hrottle bod y boss. T ighten screw
securely.
Secure electrical harness with tie strap.
IMPORTANT: Rotate twist grip. Make sure throt-
tle cam goes to full throttle without bending cable,
and still returns to IDLE stop.
1. Electrical cover 002509
1. Installer tool 005106
1. Cable anchor
2. Boss
3. Cable retainer
4. Tie strap
006526
1. Throttle lever stop 005114
1. Turn anchor four turns toward cable end. 006564
