ROUTINE SERVICE
LUBRICATION
2
Trim and Tilt
Check reservoir f luid level at least e very th ree
years or 300 operating hours.
• 40–60 HP: System cap acity is appro ximately
15.2 fl. oz. (450 ml).
• 75–90 HP: System capacity is approximately 21
fl. oz. (620 ml).
• Tilt the outboard and engage the tilt support.
• Remove filler cap and check fluid level.
• Single Ram System–Add Evinrude/Johnson
Biodegradable TNT Fluid, as n eeded, to bring
level to the bottom of the fill plug threads.
Install the filler cap and tighten to a torque of 45 to
55 in. lbs. (5 to 6 N·m).
• Disengage tilt support.
• Cycle the un it at lea st five complet e cycles to
purge all air f rom the system. When cycling the
unit, hold the trim switch ON a n additional 5 to
10 seconds after the unit reaches the end of its
travel before activa ting the switch in th e opp o-
site direction.
A CAUTION
Correct fluid level must be maintained to
ensure operation of the impact protection
built into the unit.

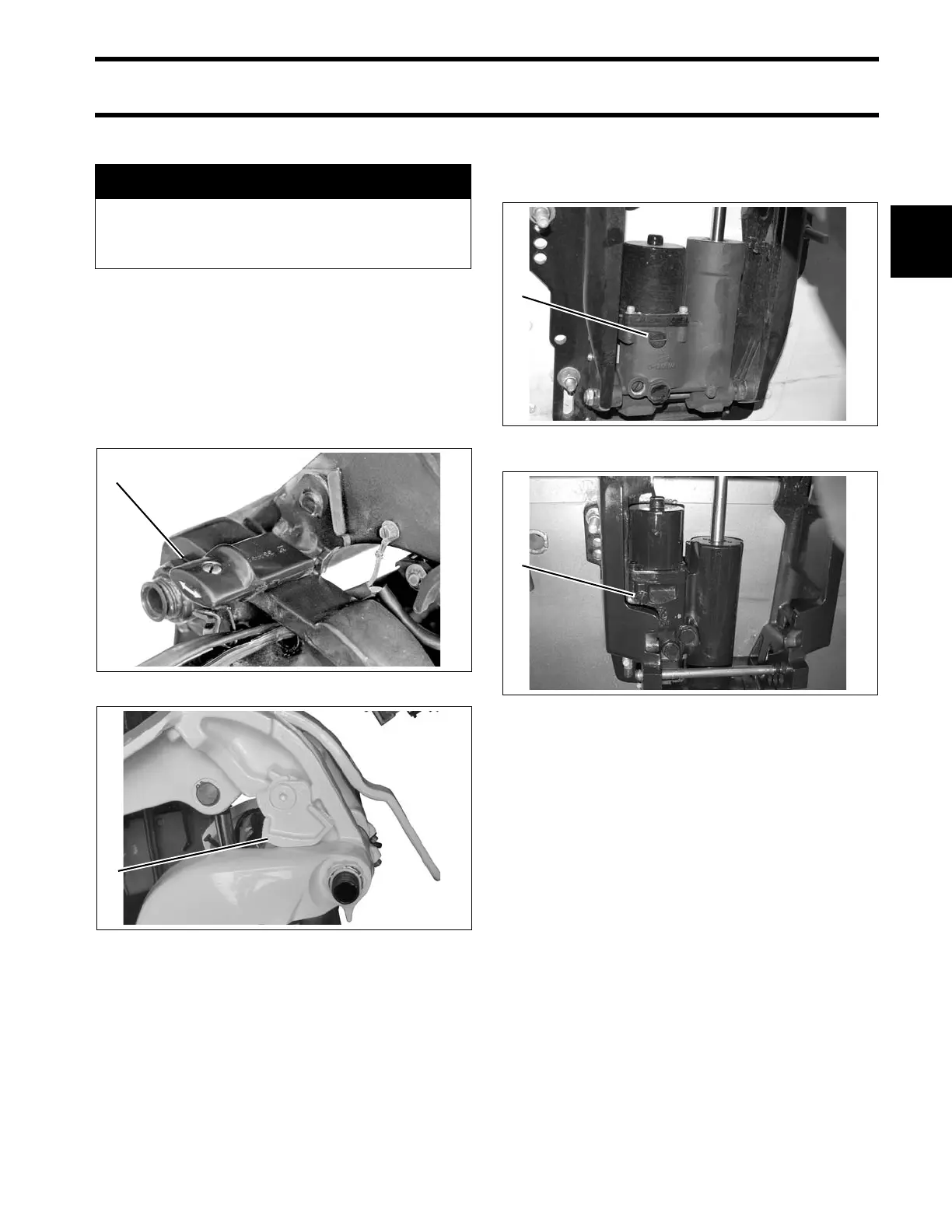

1. Tilt support bracket, 40-60 HP 18954
1. Tilt support bracket, 75-90 HP 002279
1
1
Single Ram System, 40 - 60 HP
1. Filler cap
008018
Single Ram System, 79 - 90 HP
1. Filler cap
008017
