MIDSECTION

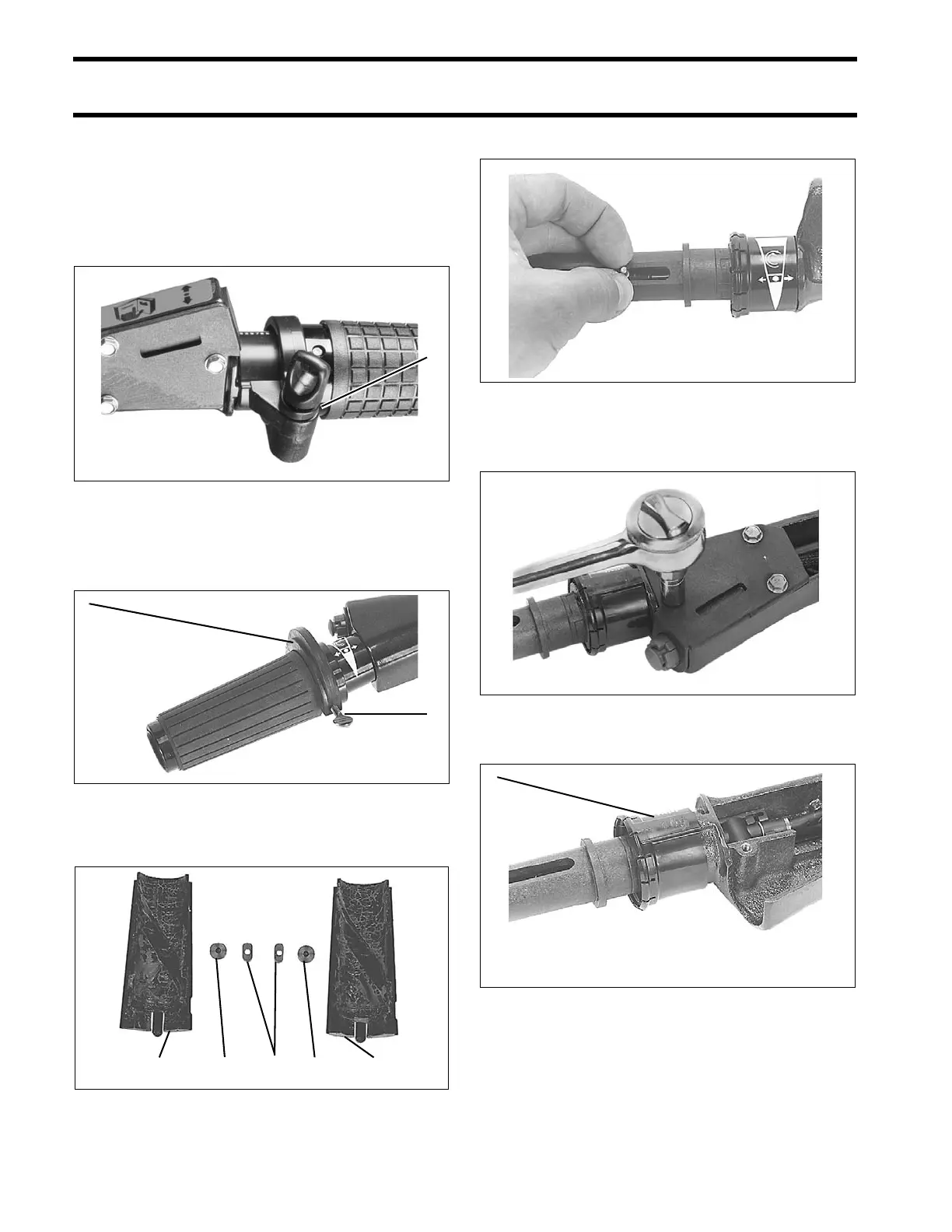

TILLER HANDLE SERVICE – STANDARD
Disassembly
Loosen throttle friction control so th ere is no
restriction on grip.
IMPORTANT: Do not back screw out co m-
pletely. Nut is under spring tension.
Use Twist-Grip Remover, P/N 390767, to depress
the grip de tents. T ighten screw and remove the
grip by pulling grip.
Remove the helix halves, rollers, and guides.
Pull the throttle pin out of the cable.
Remove stop switch cover screws and cover/stop
switch assembly.
Remove the throttle control plate.
1. Throttle friction control 001259
1. Twist-Grip Remover
2. Screw
002189
1. Helix halves
2. Rollers
3. Guides
COA2674
24294
24288
1. Throttle control plate 24287
