Evinrude E-tec 75 HP - Throttle Linkage Removal; Shift Linkage Removal

194
POWERHEAD
POWERHEAD DISASSEMBLY

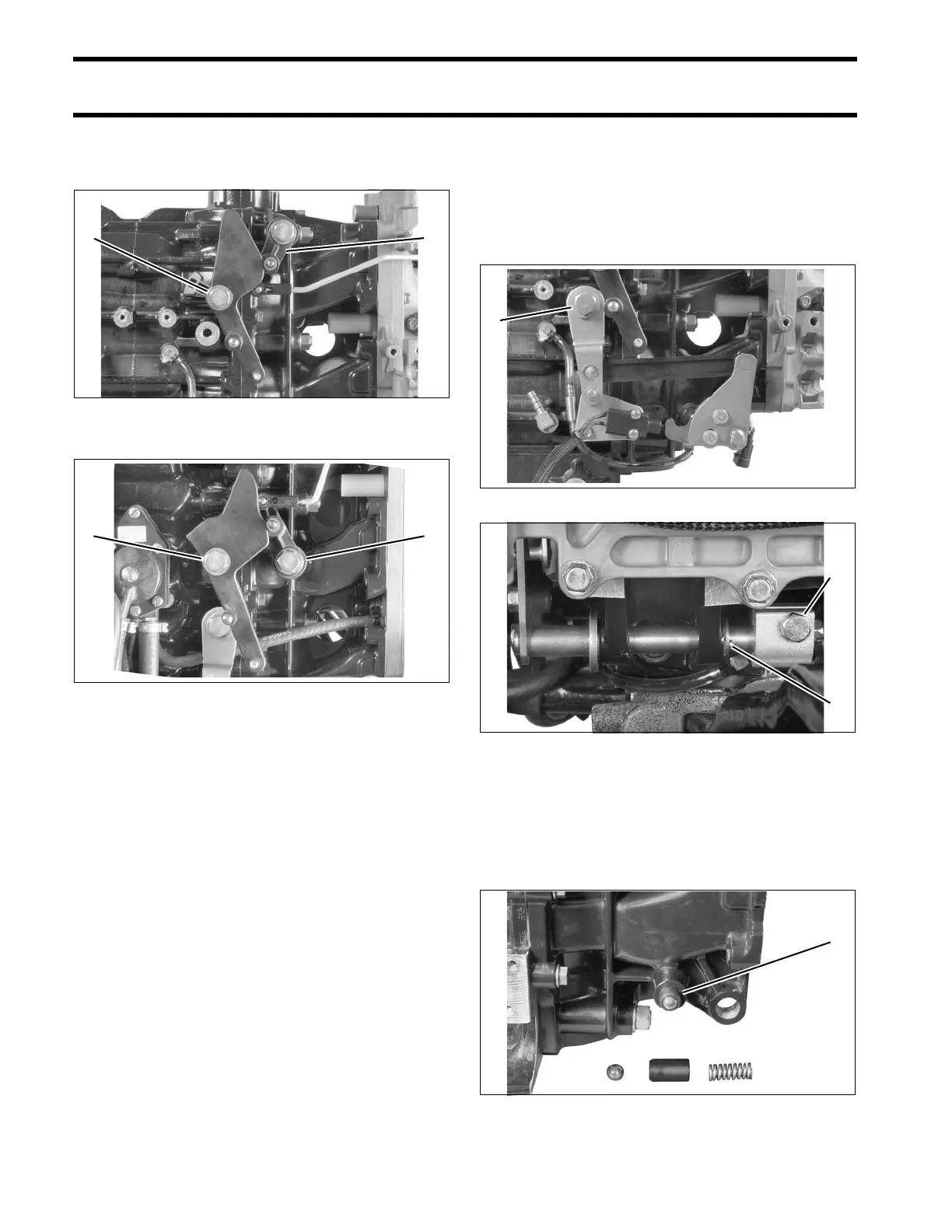

Throttle Linkage Removal
Remove throttle cam and throttle lever.
Shift Linkage Removal
Remove shoulder screw from shift arm and retain-
ing screw from shift rod lever.
Remove t he co tter pin and wa sher hold ing t he
shift shaft (2-cylinder models).
Slide ent ire shif t linkag e assembly from crank-
case.
Remove t he ball, g uide, and spring of the shif t
detent assembly from the crankcase.
2-Cylinder Models
1. Throttle lever screw
2. Throttle return lever
002245
3-Cylinder Models
1. Throttle cam screw
2. Throttle lever screw
002257
21
21
1. Shift lever screw 002250
1. Shift rod lever screw
2. Cotter pin
002246
1. Shift detent assembly 002135
