340
GEARCASE SERVICE, 75 – 90 HP MODELS
GEARCASE ASSEMBLY
Pinion Gear and Driveshaft
Installation
Refer to DRIVESHAFT SHIMMING on p. 337
before proceeding.
Install new seals in drivesh aft bearing housing.
Refer to Driveshaft Bearing Housing Service on
p. 334.

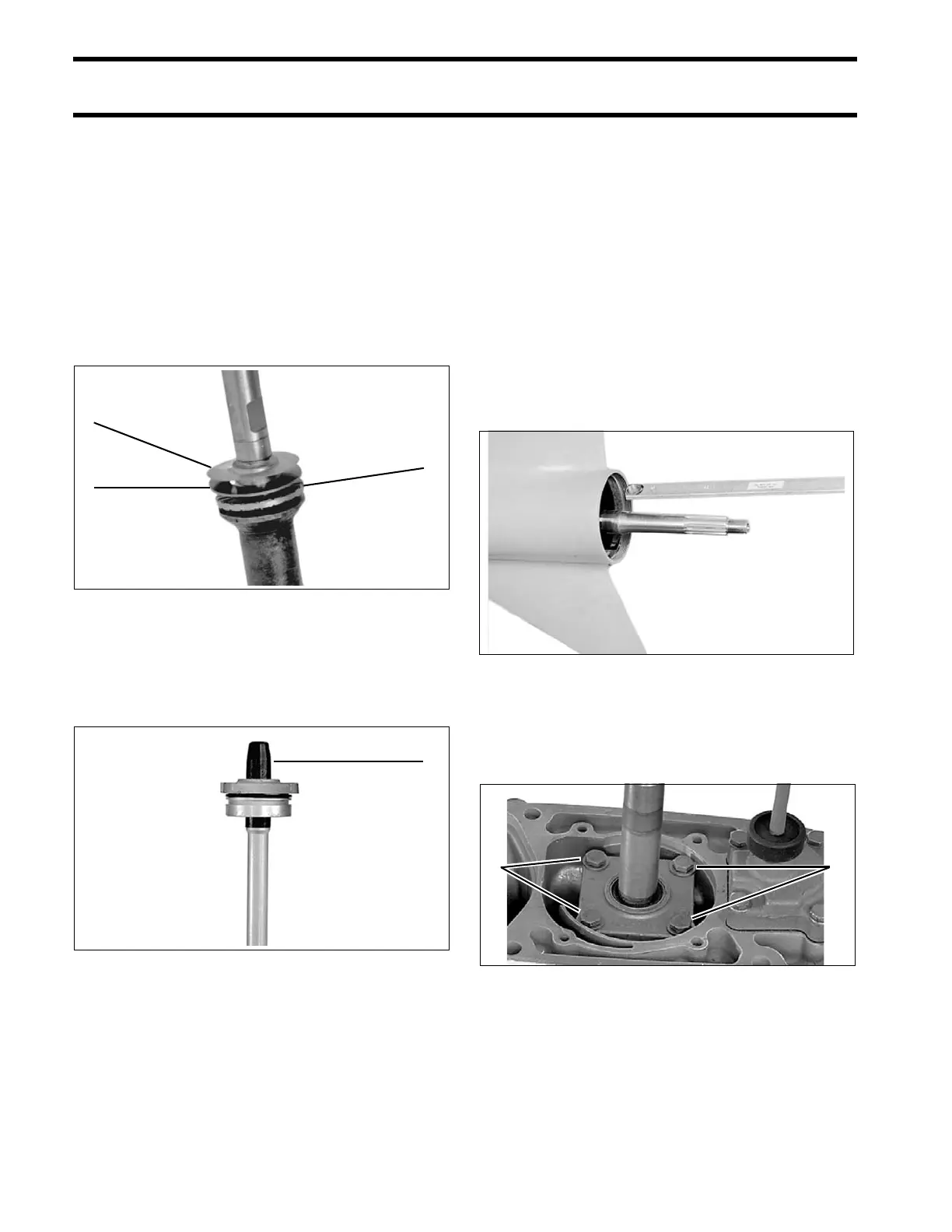

Place the driveshaft thrust bearing, thrust washer,
and correct shim(s) on the driveshaft as shown.
Using Drivesh aft Sea l Protector , P/N 318674,
slide th e driveshaf t b earing ho using o nto the
driveshaft and into position in the gearcase.
Adjust shift rod to mo ve clutch dog as far forward
as possible. Be sure excess grea se is re moved
from the pinion bearing.
IMPORTANT: The inside t aper of the p inion
gear and the driveshaft taper MUST be com-
pletely free of grease. Clean the t apers with
Cleaning Solvent. Use a shop towel free of grease
and lint.
Place the pinion gear into the gearcase. Insert the
driveshaft into th e gearcase and through the pin-
ion gear.
Lightly coat the thre ads of a new pinion nut with
outboard lubricant. Use Pinion Nut Starting Tool,
P/N 342216, to install nut on the driveshaft. Turn
the driveshaft by han d to thread the nut on to
shaft.
Apply Gasket Sealing Compound to the threads of
the driveshaf t bea ring housing screws. Tighten
screws in stages to a torque of 120 to 144 in. lbs.
(13.5 to 16.5 N·m).
1. Thrust bearing
2. Thrust washer
3. Shim(s)
COA3168
1. Seal protector COA3130
42230
1. Driveshaft bearing housing screws COA3153
