OILING SYSTEM
COMPONENTS
LOW OIL Warning
A switch in the oil tank assembly monitors the oil
level in the oil tank.
If the oil level falls below one-quarter capacity, the
EMM signals:
Approximate oil reserve at Low Oil activation:
• 0.45 qt. (0.43 l).
NO OIL Warning
When the oil le vel falls below one-quarter, the
EMM begin s coun ting oil pump pulse cycle s.
When it reaches:
• 40 – 65 HP: 4800 pulses
• 75 – 90 HP: 6000 pulses
the EMM:
To recover from S.A.F.E. mode:
• Oil level must be above one-quarter
• The warning re sets after thre e oil p ump pulse
cycles when th e out board has been stopped
and restarted.
If o utboard has be en run fo r more th an 3 hou rs
with NO OIL faults (codes 34 & 117), the EMM
Cylinder and Crankcase
The oil d istribution mani fold provides crankcase
lubrication thro ugh oil distributio n h oses a nd
pressed-in fittin gs on the crankcase and cylind er
block.
3-CYLINDER MODELS
Engine Monitor LOW OIL display: ON
Activates S.A.F.E.
Stores service code 117
EMM LED 4: ON (Running)
Engine Monitor NO OIL display: ON
Activates SHUTDOWN
Stores service code 33
EMM LED 4: FLASHING
Engine Monitor NO OIL display: FLASHING

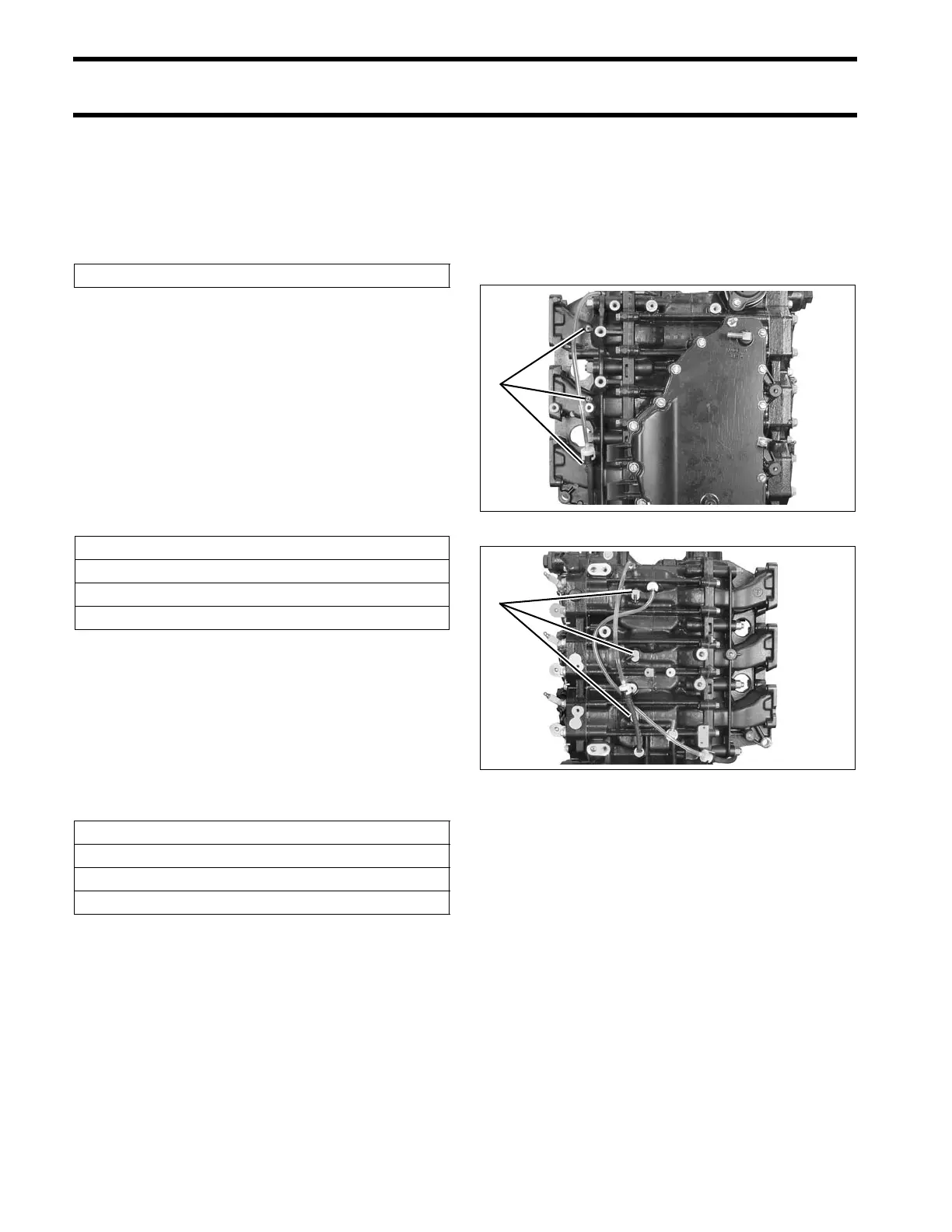

1. Crankcase oil fittings 006758
1. Cylinder block oil fittings 006759
