369
MANUAL STARTER
RECOIL STARTER INSTALLATION
14

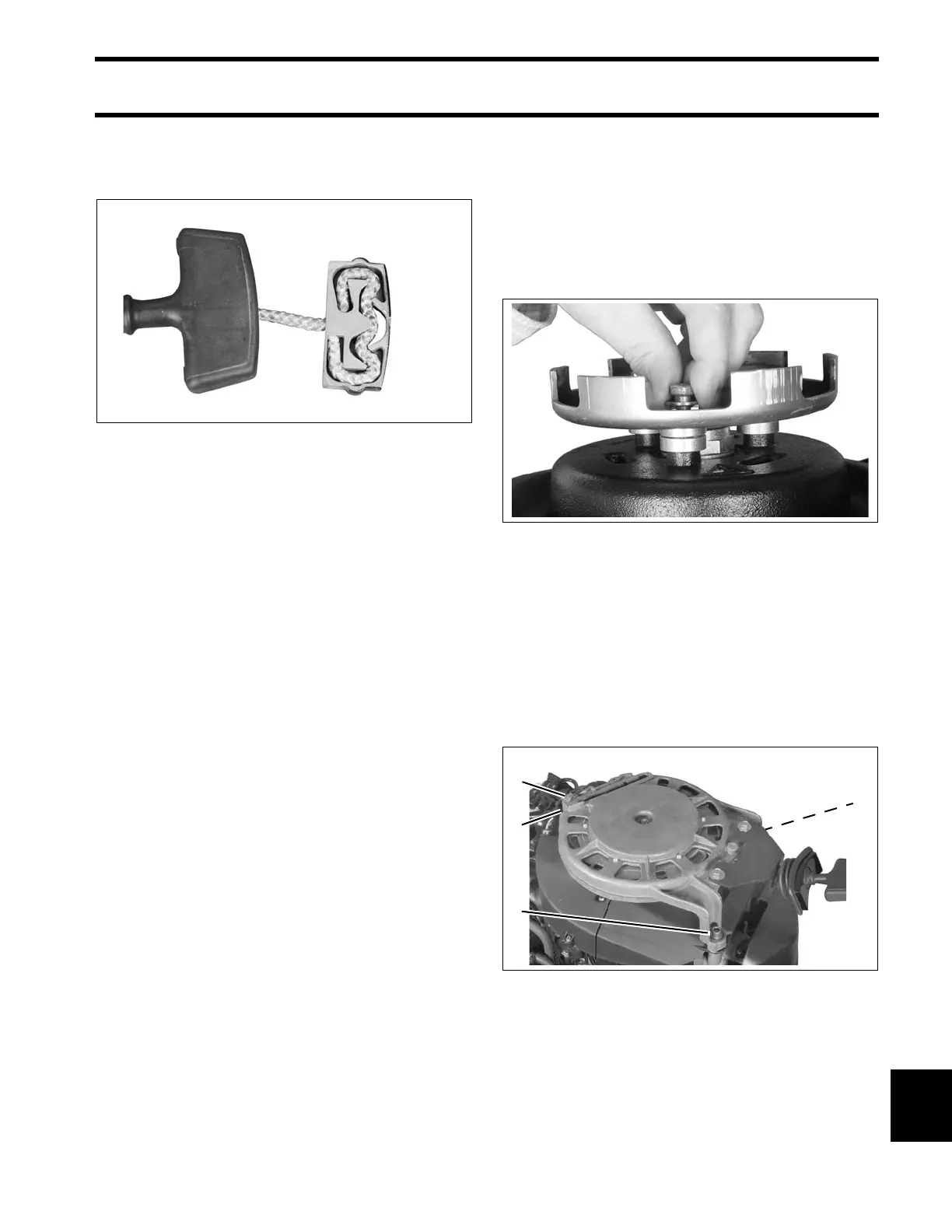

Press the starter rope into the channel of the rope
anchor, with end of starter rope firmly against end
of channel. Press the anchor into the handle.
Check ope ration of the st arter pawl when the
starter rope is pu lled out. Th e starter pawl should
extend when the starter rope is pulled and retract
when the starter rope recoils.
RECOIL STARTER
INSTALLATION
Apply Nut Lock to the thre ads of st arter ratch et
screws. Inst all washers and ratchet on flywheel.
Tighten screws to a torque of 120 to 14 4 in. lbs.
(13.5 to 16 N·m).
Place t he st arter a ssembly onto the outboard.
Install the starter housing retaining screws, wash-
ers, and lo ck washers. Be sure to place washers
between the starter housing and the flywheel
cover. Apply Ultra Lock to threads and tighten the
three starter housing screws to a torque of 120 to
144 in. lbs. (14 to 16 N·m).
Install clamp for oiling system wiring harness.
007858
006654
1. Starter housing screws (3)
2. Clamp
002515
