MANUAL STARTER
RECOIL STARTER ASSEMBLY

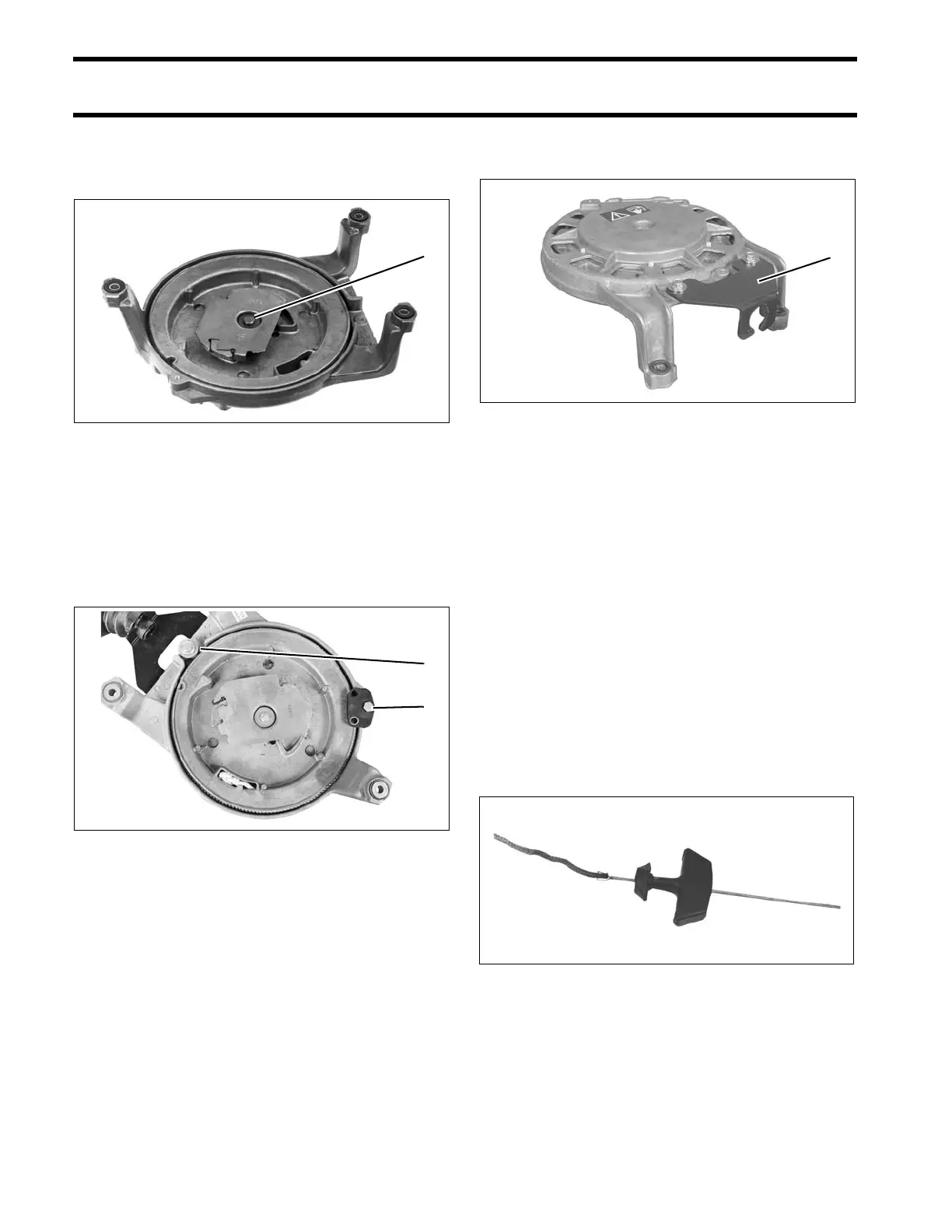

Install the starter p awl plate ret aining screw a nd
washer into t he starter housing. Tighten screw to
a torque of 96 to 120 in. lbs. (11 to 13.5 N·m).
Spray threads of starter pawl plate retaining screw
and nut with Locquic Primer. Apply Nut Lock to the
threads of the nut. I nstall and tighten the nut
securely.
Install t he rope guide and pu lley su pport to the
starter housing. Tighten the screws securely.
If removed, install the starter handle bracket to the
starter housing. Tighten screws securely.
Tie a knot in one end o f the starter rope. With the
starter housing upside down on a bench, wind the
pulley counterclockwise until the rewind spring is
tight.
Back off the rewind spring until the rope cavity of
the pulley is alig ned with th e rope guide. Thre ad
the st arter rope th rough the p ulley, rope guide,
and outlet in the starter handle bracket.
Seat the knotted end of the starter rope in the pul-
ley. Tie a slip knot in the starter rope to hold rope
in position.
Apply Triple-Guard grease or Lubriplate 777 to the
handle end of the starter rope. Using Starter Rope
Threading T ool, P/N 378774, th read the starter
rope through the handle.
1. Screw COA1375
1. Rope guide
2. Pulley support
007854
1. Starter handle bracket 002517
COA1373
