358
TRIM AND TILT
TRIM AND TILT SERVICE

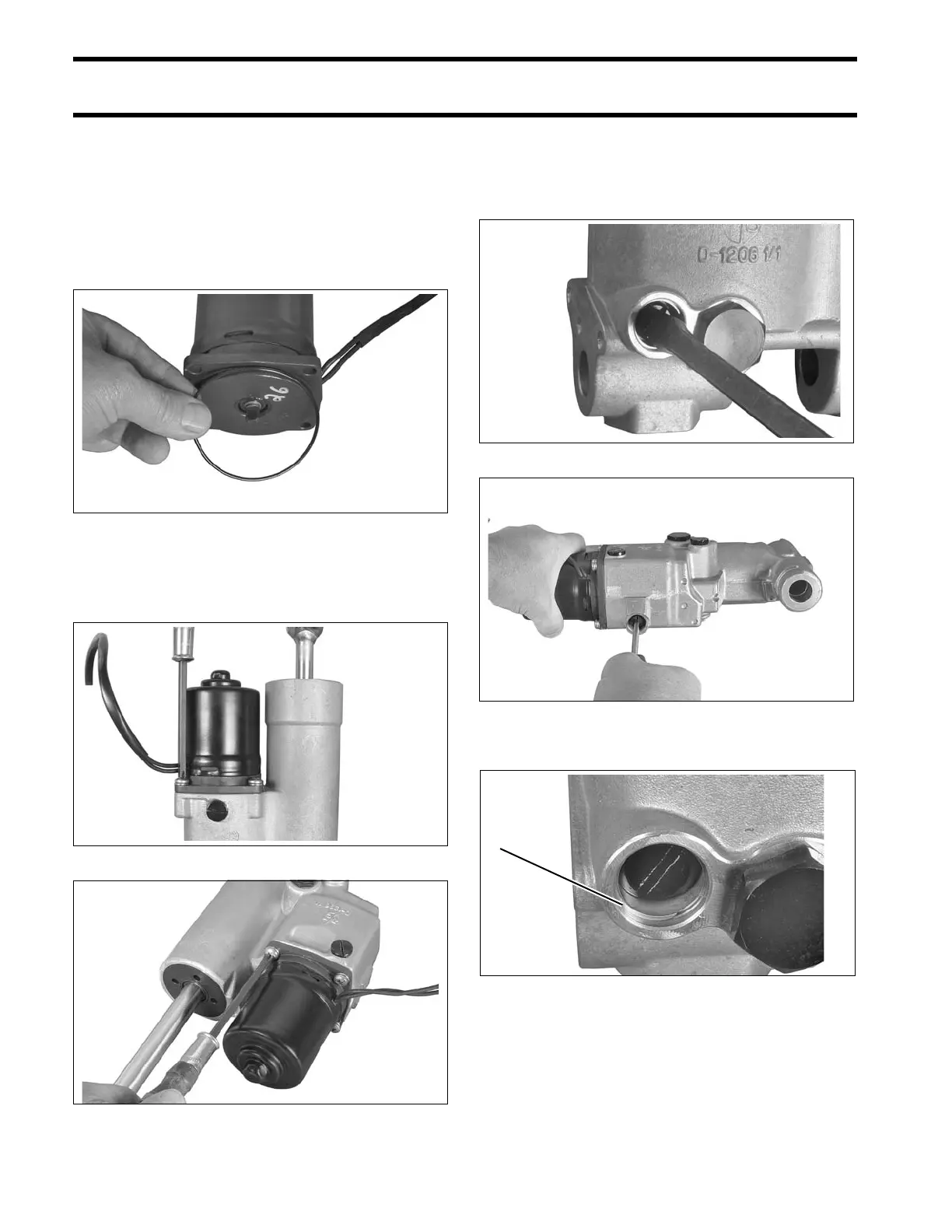

Assembly
IMPORTANT: Use only Evinrude/Johnson Bi o-
degradable TNT Fluid to fill the hydraulic system.
Install drive coupler in pump assembly.
Install a new motor O-ring.
Position the motor on the manifold and install four
new screws and lock washers. Tighten the screws
35 to 50 in. lbs. (4 to 5.6 N·m).
Oil O-rings and install them on the manual release
valve. Oil and inst all th e ma nual release valve.
Tighten the valve to a torque of 45 to 55 in. lbs. (5
to 6 N·m).
Install new retaining ring in groove.
002533
40 - 60 HP Models 002531
75 - 90 HP Models 004282
40 - 60 HP Models 002529
75 - 90 HP Models 004285
1. Retaining ring 002534
