GEARCASE SERVICE, 75 – 90 HP MODELS
GEARCASE DISASSEMBLY
12

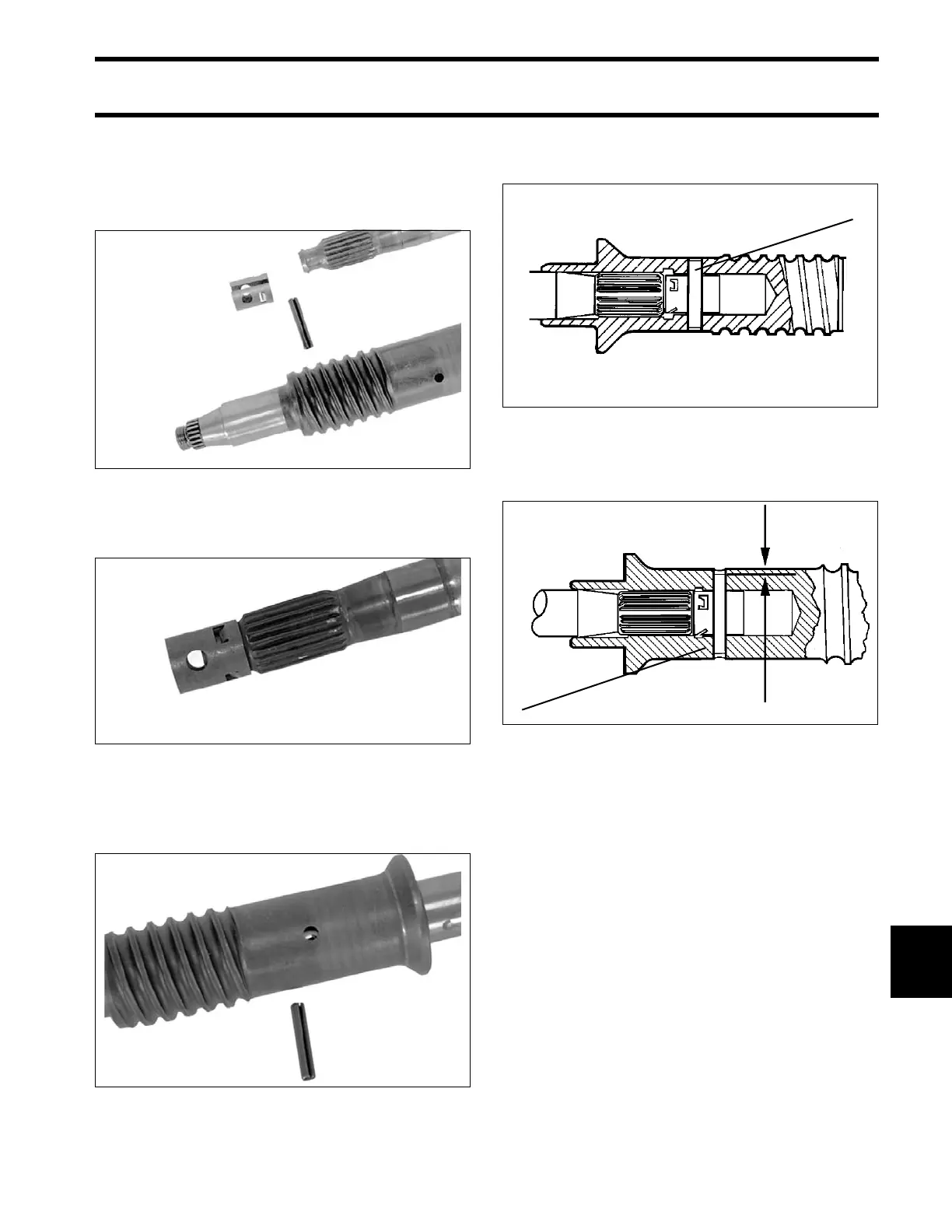

Driveshaft Service
To separate the uppe r driveshaft (if ne eded) from
the lower d riveshaft, remove the roll pin. Replace
the damaged component.
To assemble the driveshaft, install new driveshaft
retainer into the groove of the upper driveshaft.
Install the upp er driveshaf t into the lower drive-
shaft, aligning the holes in the d riveshaft retainer
and the lower driveshaft.
“S” Type Gearcases
Install the roll pin flush.
“O” Type Gearcases
Install the roll pin to the specified dimension.
29337
29338
29330
1. Roll pin DR4596
1. Roll pin DR4610
1
1
0.125 in.
(3.2 mm)
