352
TRIM AND TILT
TRIM AND TILT REPLACEMENT
TRIM AND TILT
REPLACEMENT

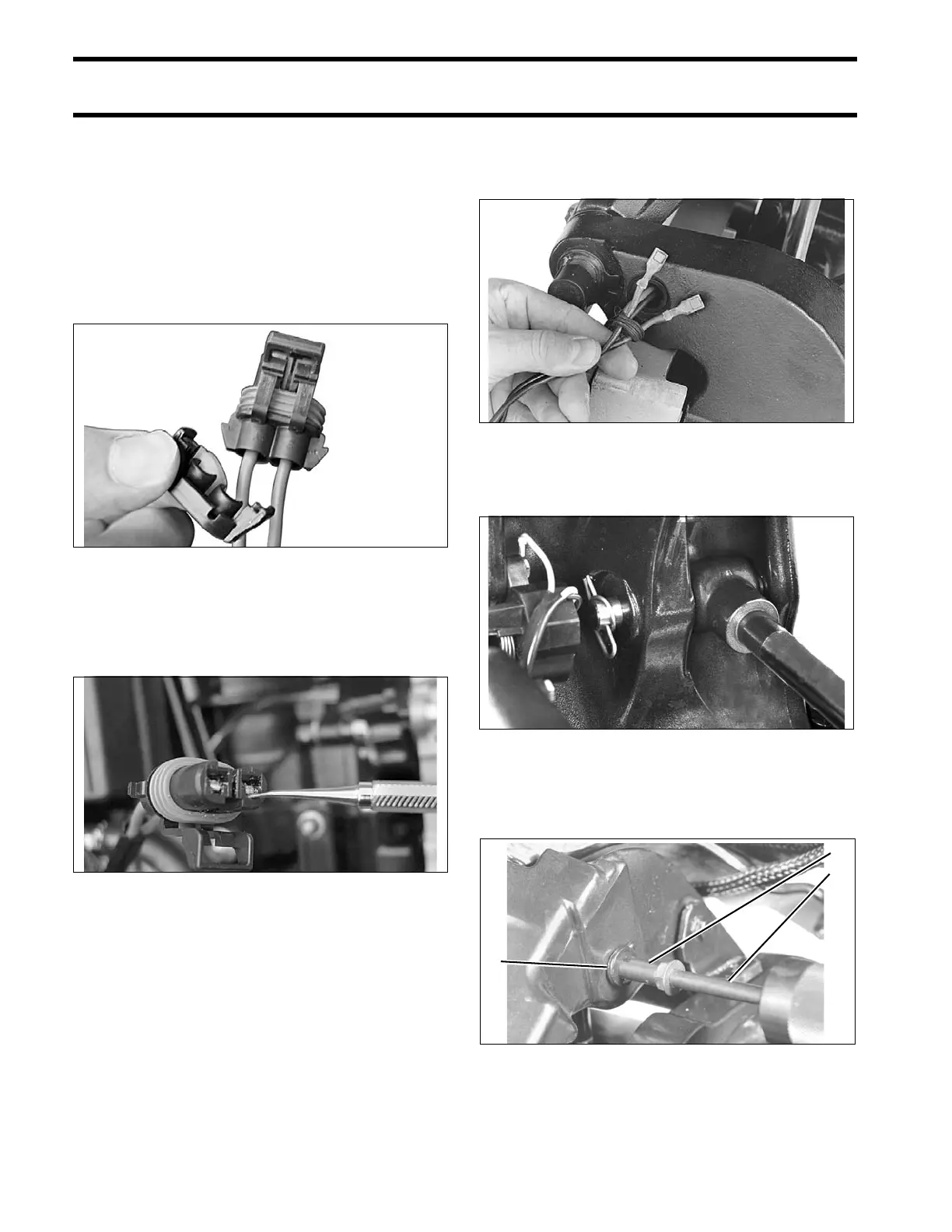

Removal
Raise the outboard and engage the tilt support.
Remove the rubber grommet from the blue/green
trim/tilt cable connector.
Remove the terminals from the co nnector by
using a suitable tool to depress the tab. While the
tab is depressed, pull on the wire from the rear of
the connector to release it from the connector.
Separate the trim/tilt unit wires in the braided tube
to p ermit remo val t hrough the hole in t he ste rn
bracket.
40 – 60 HP MODELS
Remove the spring clip from the cylinder pin.
Thread Adapter, P/N 340624, onto Slide Hammer,
P/N 39100 8. Screw the adapte r into th e cylind er
pin and remove the pin.
000686
000687
25078
15493
1. Thread adapter
2. Slide hammer
3. Cylinder pin
39434
