353
TRIM AND TILT
TRIM AND TILT REPLACEMENT
13

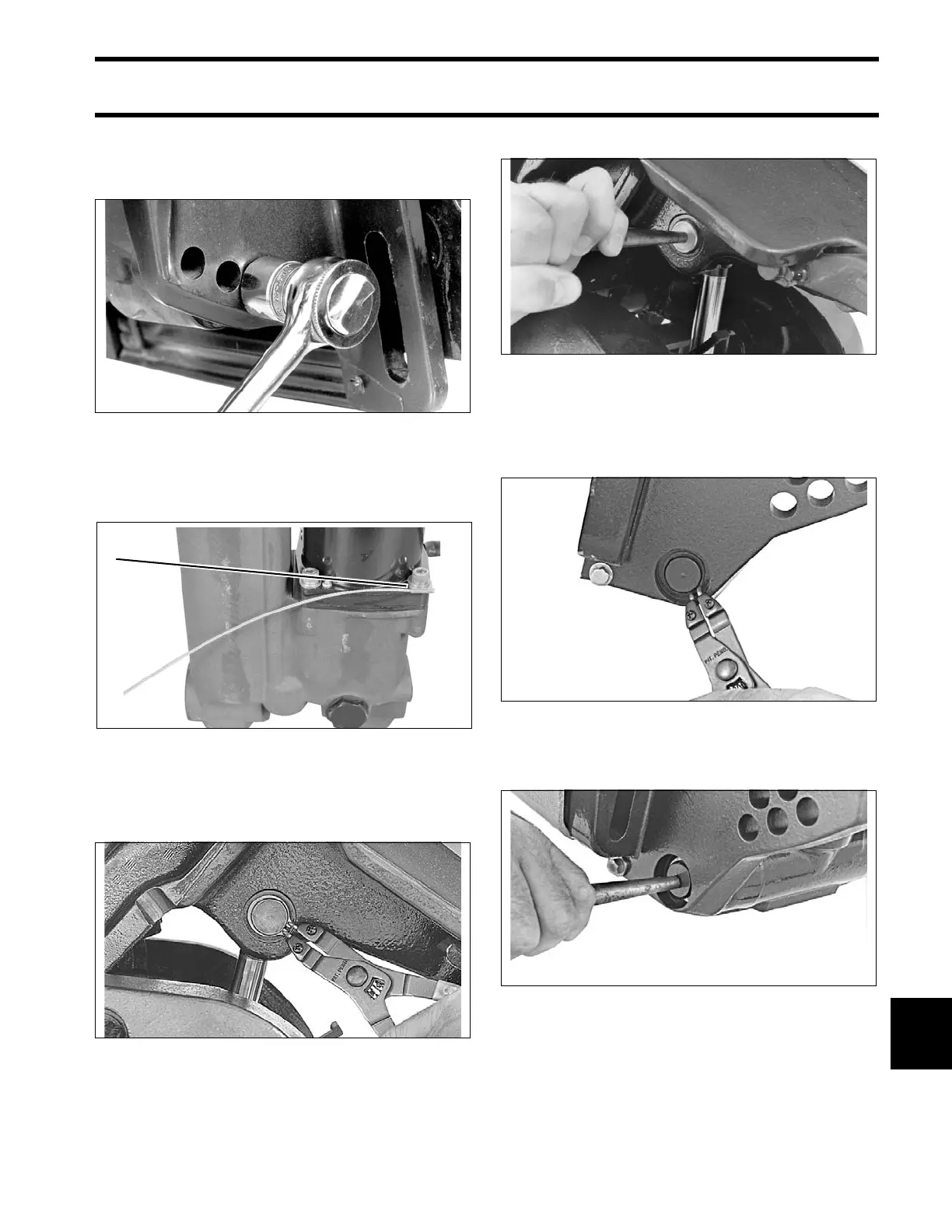

Remove one of the locknuts from the angle adjust-
ment ro d. Remove the rod from the stern brack-
ets.
Remove the un it fro m th e ste rn bracket s far
enough to remove the ground lead from the pump
motor mounting screw.
75 – 90 HP MODELS
Remove the externa l snap rings from the up per
pin.
Use a punch to remove the upper pin.
Retract the tilt cylinder rod.
Remove t he external s nap ri ngs f rom t he lower
pin.
Use a punch to remove the lower pin and remove
the trim/tilt unit from the stern brackets.
18941
1. Ground lead 007640
25064
25065
25077
25076
