COOLING SYSTEM

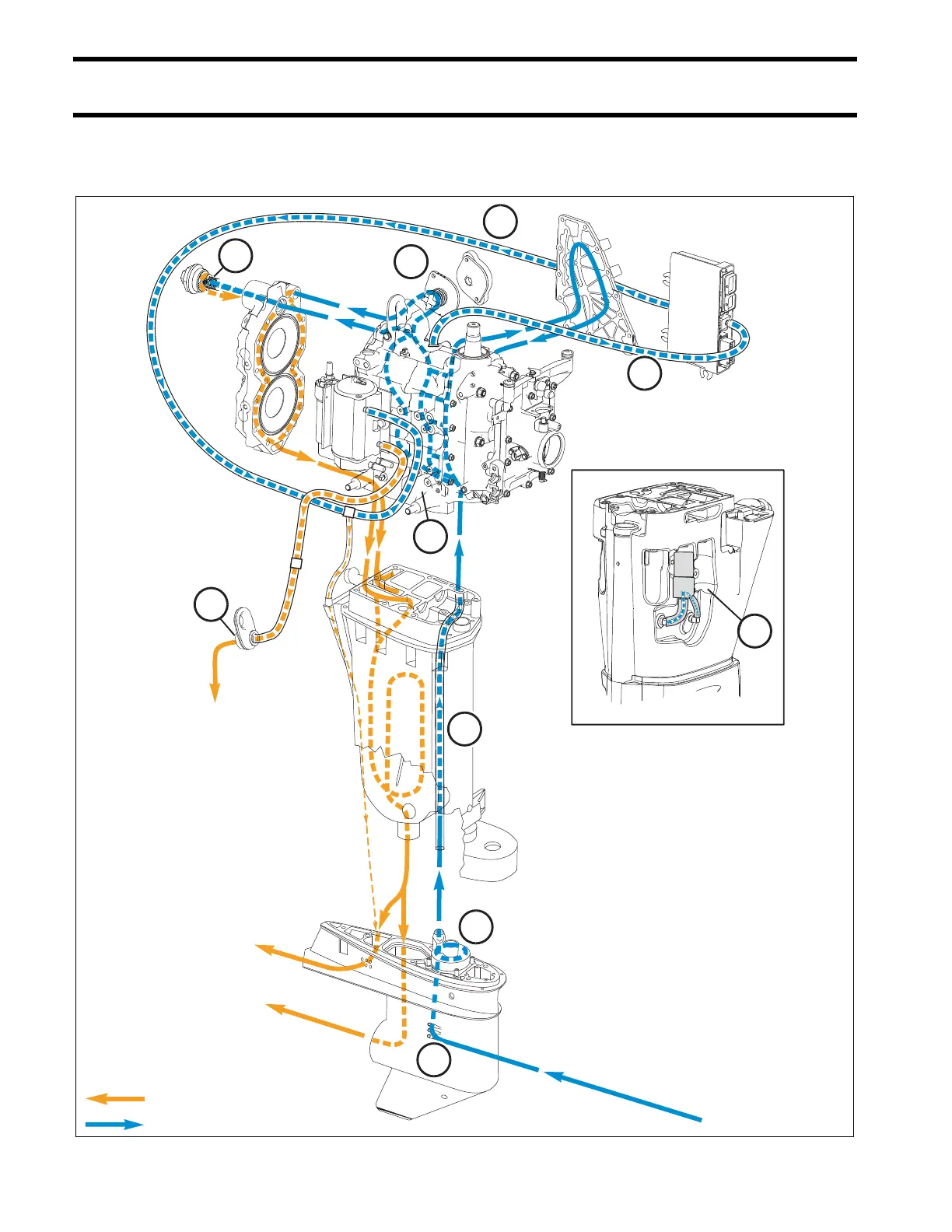

HOSE ROUTING AND WATER FLOW DIAGRAMS
HOSE ROUTING AND WATER FLOW DIAGRAMS
2-CYLINDER MODELS
9
1
2
3
4
5
6
8
7
10
60, 65 HP
004971
Incoming water (cool)
Outgoing water (warm/hot)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Water intake screens
Water pump
Exhaust housing
Cylinder block
Pressure relief valve
Thermostat
Water supply to EMM
Water supply, EMM to vapor
separator
Overboard indicator, outgoing
water from vapor separator
Exhaust Water Valve
