Evinrude E-tec 75 HP - Page 177

175
COOLING SYSTEM

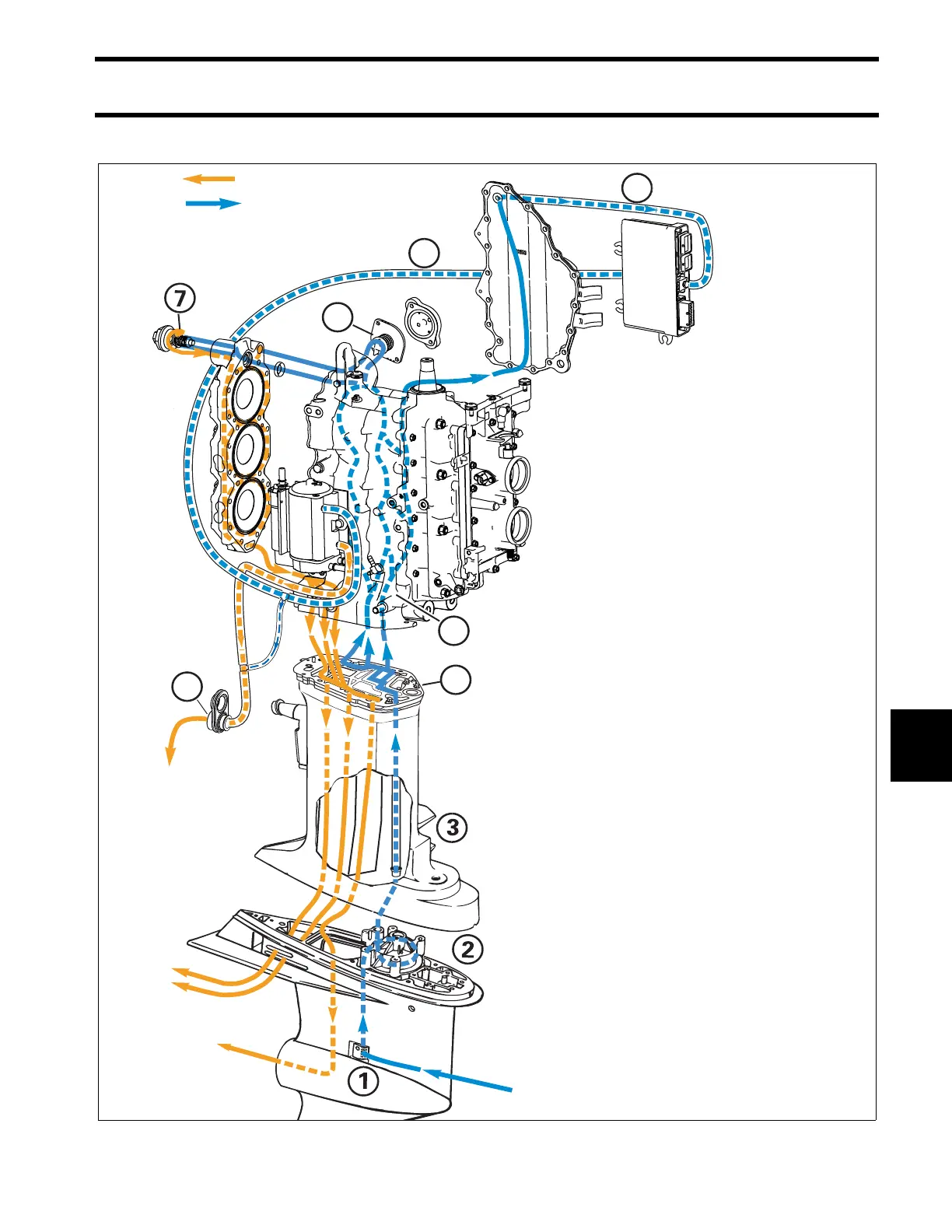

HOSE ROUTING AND WATER FLOW DIAGRAMS
9
3-CYLINDER MODELS
6
4
8
9
10
5
001818
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Water intake screens
Water pump
Water tube
Adapter housing
Cylinder block
Pressure relief valve
Thermostat
Water supply to EMM
Water supply, EMM to vapor separator
Overboard indicator, outgoing water
from vapor separator.
Incoming water (cool)
Outgoing water (warm/hot)
