265
MIDSECTION
STERN BRACKET, 90 HP MANUAL TILT
11

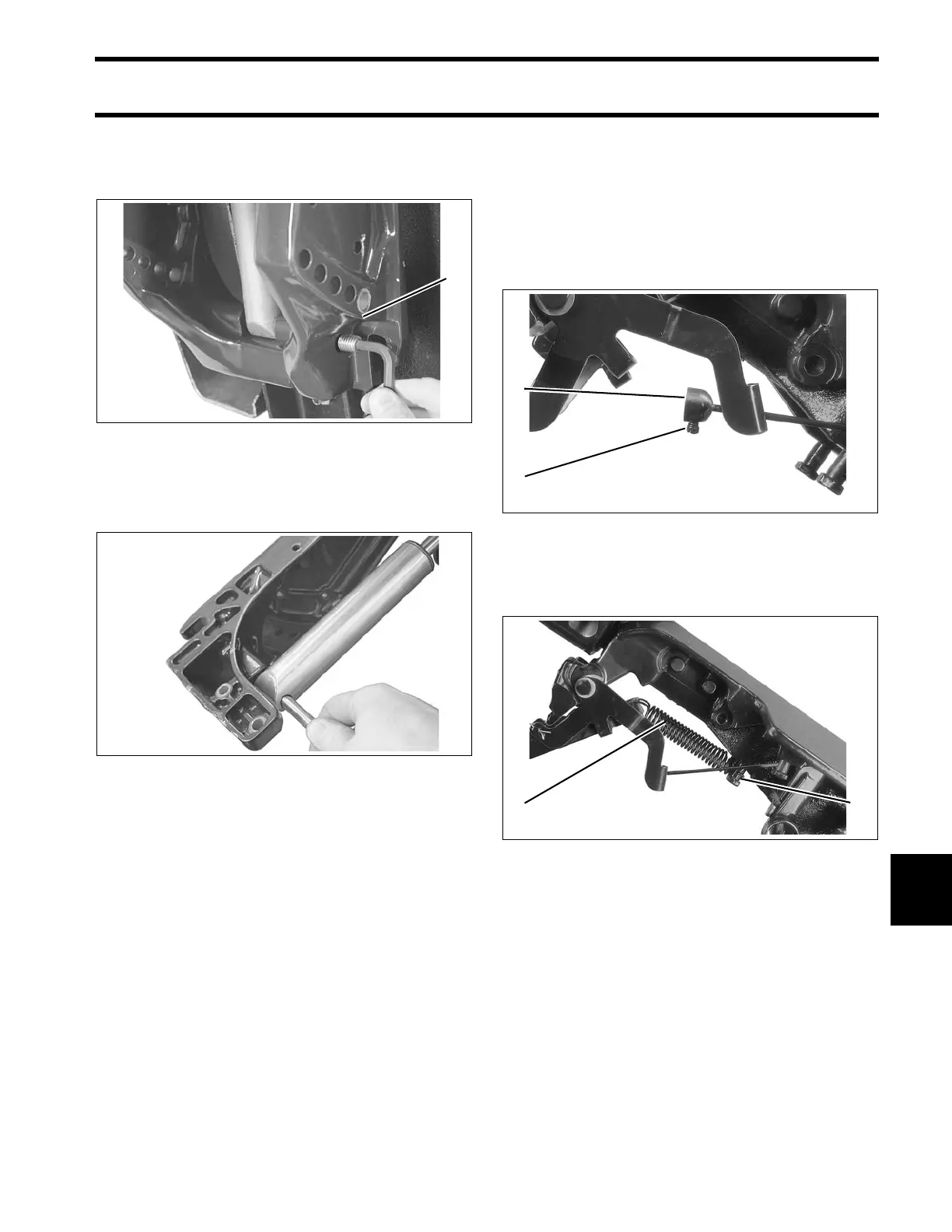

Remove set screw fro m starboard stern b racket
lower pivot pin access hole and use an appropri-
ate tool to remove lower pivot pin.
If lower pivot cannot be removed because of cor-
rosion or damage, stern brackets may need to be
disassembled.
Assembly is the reverse of disassembly . Install
new cotter p ins in up per pivot pin. Install a new
set screw in st arboard stern bra cket lower pivot
pin access hole and tighten securely.
STERN BRACKET,
90 HP Manual Tilt
Stern Bracket Disassembly
Loosen set scre w a nd remove reve rse lock
release collar.
Remove re verse lo ck springs from l ocking lev er
and reverse lock spring screws.
1. Lower pivot pin access hole 004260
003940
1. Set screw
2. Reverse lock release collar
006697
1. Reverse lock springs
2. Reverse lock spring screws
006700
