ENGINE COVER SERVICE
LOWER COVER SERVICE

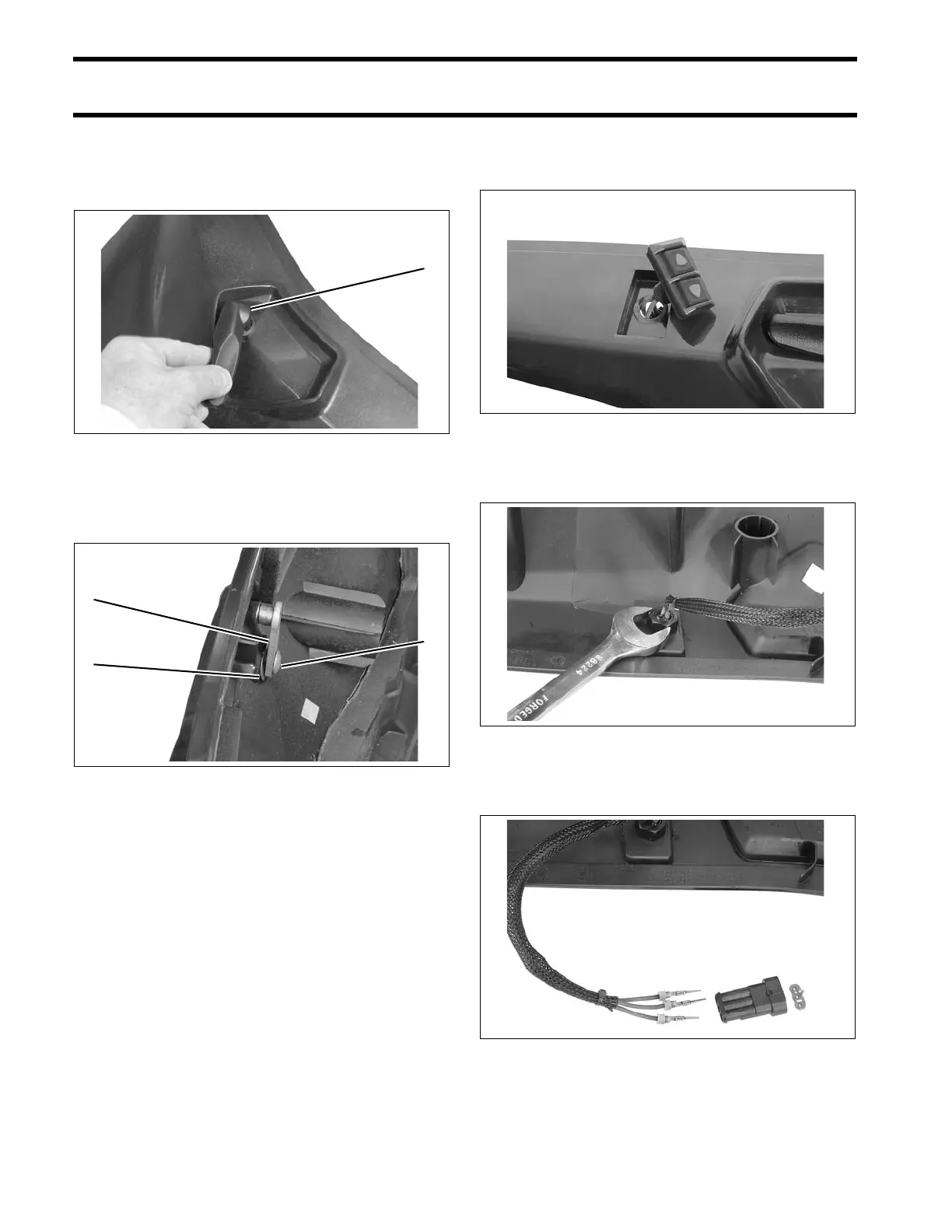

Latch Handle Installation
Apply a light coat of Triple-Guard grease to latch
handle shaft. Insert handle into lower cover.
Apply Ultra-Lock to sc rew threa ds. Pl ace spring
washer and ho ok in to positio n and tig hten screw
to a torque of 180 in. lbs. (20 N·m).
Trim Switch Installation
Place switch into position through cover.
Install nut on switch. Tighten nut to a torque of 10
to 16 in. lbs. (1 to 2 N·m).
Install electrical connector. Refer to CONNECTOR
SERVICING on p. 116.
1. Triple-Guard grease 006470
1. Spring washer
2. Hook
3. Screw
006471
006746
006747
006748
