270
MIDSECTION
STERN BRACKET, 90 HP MANUAL TILT
Tighten screw to a torque of 60 to 84 in. lbs. (7 to
9.54 N·m).
Place reverse lock lever rod through hole at top of
starboard reverse lo ck lever. Install the st arboard
reverse lock link on the swivel bracket. Apply blue
Nut Lock to screw threads and install washer and
screw. T ighten scre w t o a torqu e of 60 to 84 in.
lbs. (7 to 9.5 N·m).
Install reverse lock r elease collar a nd tighten set
screw.
Install locking lever, pins and new cotter pins.
Install reverse l ock sp rings on locking lever a nd
reverse lock spring screws.

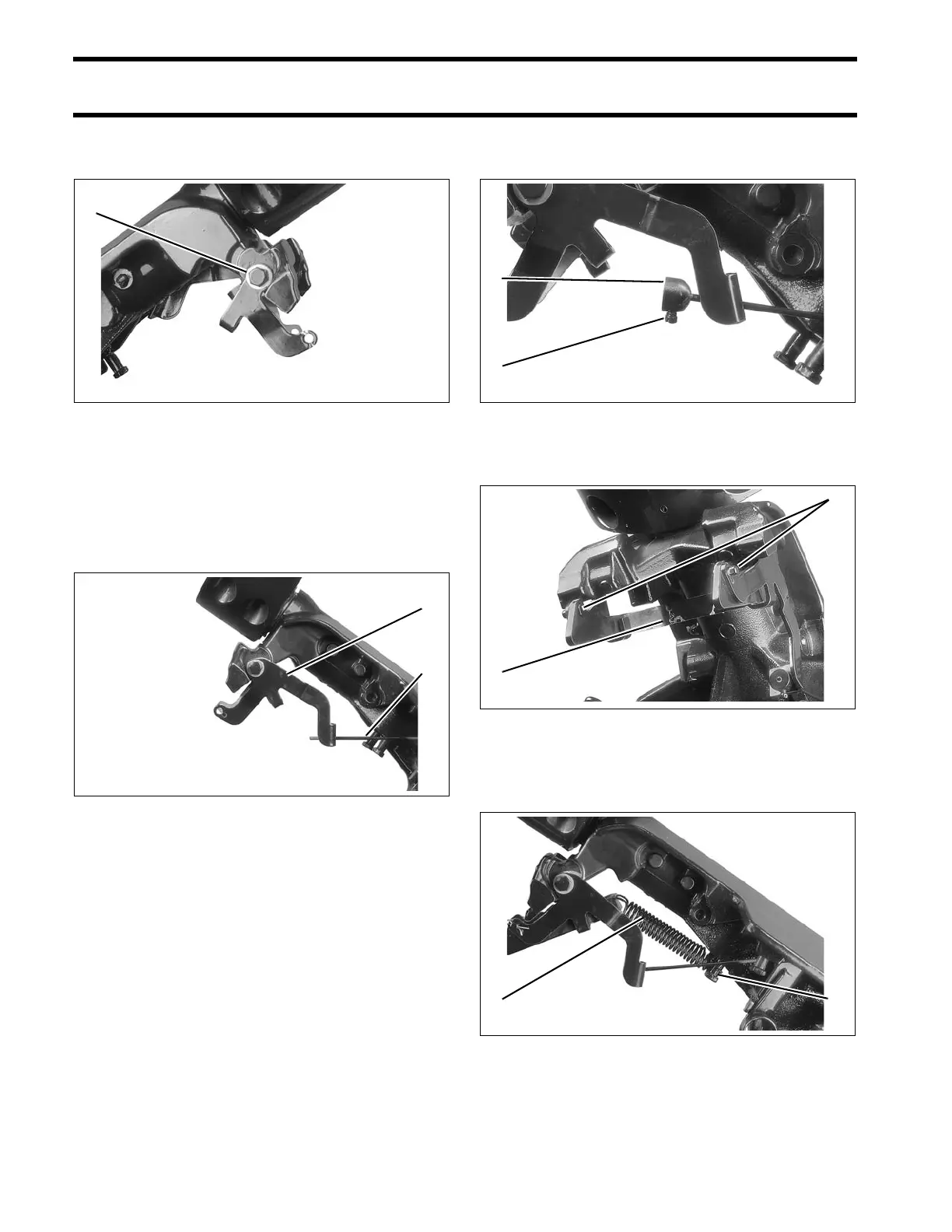

1. Port reverse lock link 006695
1. Reverse lock lever rod
2. Starboard reverse lock link
006696
1. Reverse lock release collar
2. Set screw
006697
1. Locking lever
2. Pins
006699
1. Reverse lock springs
2. Reverse lock spring screws
006700
