Evinrude E-tec 75 HP - Oiling System Circuit Diagram

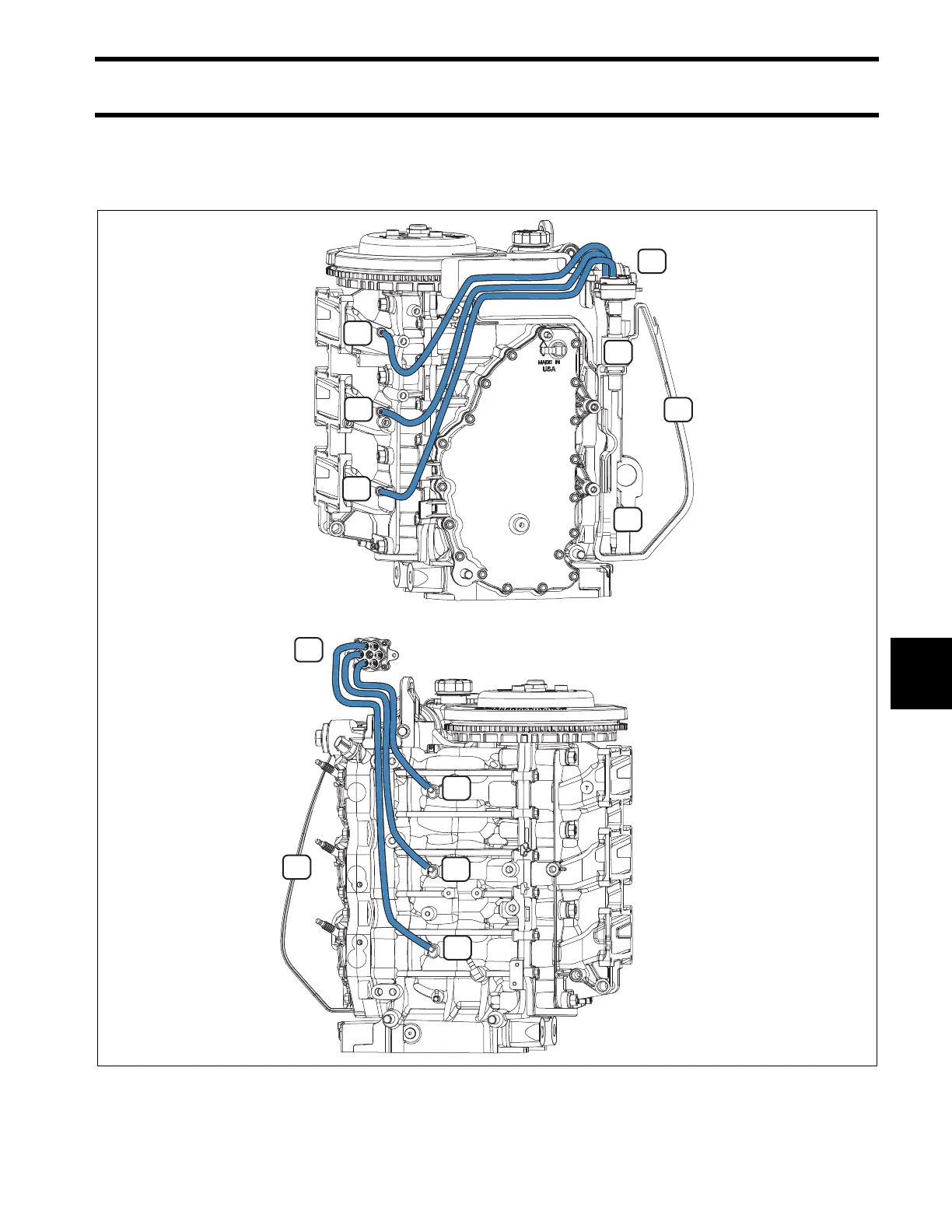

OILING SYSTEM
157
8
75 – 90 HP
1.
2.
3.
Oil tank
Oil pick-up/filter
Oil injection pump
4.
5.
6.
Oil distribution manifold
Crankcase oil inlet (port)
Cylinder oil inlet (starboard)
1
3
4
2
1
5
4
6
6
5
6
5
008061
