OILING SYSTEM
OIL COMPONENT SERVICING
3-CYLINDER MODELS
Install oil pump and manifold straight into oil tank.
IMPORTANT: Be sure oil pick u p assemb ly is
positioned in front of oil t ank ba ffle to prevent
interference with the LOW OIL switch.
ALL MODELS
Install oil pump ret ainer screw(s). T ighten
securely.
IMPORTANT: Turn self-tapping screws cou nter
clock-wise to start the th reads and clockwise to
tighten. Failure to f ollow this procedure can da m-
age the threads of the oil tank.

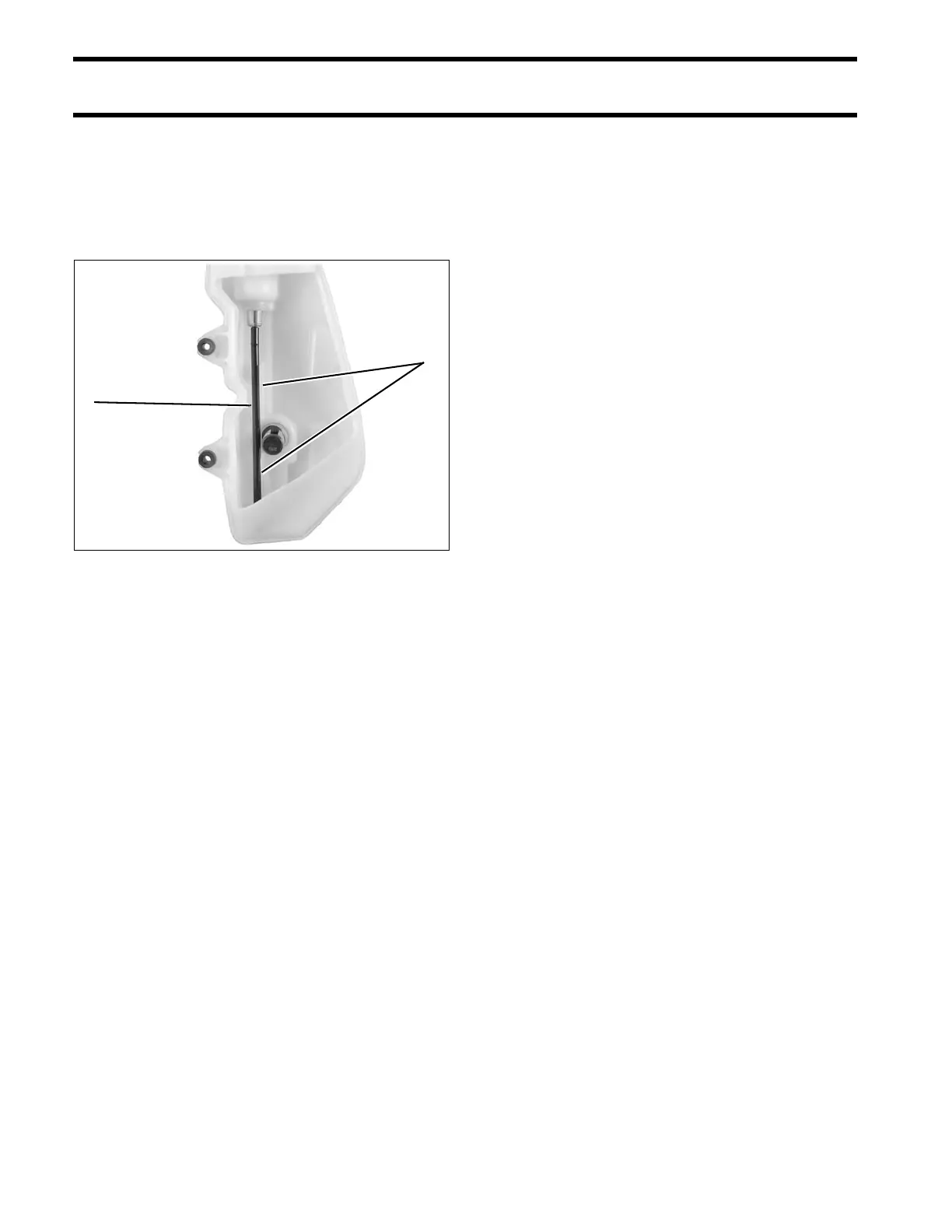

1. Oil pick up assembly
2. Oil tank baffle
008183
