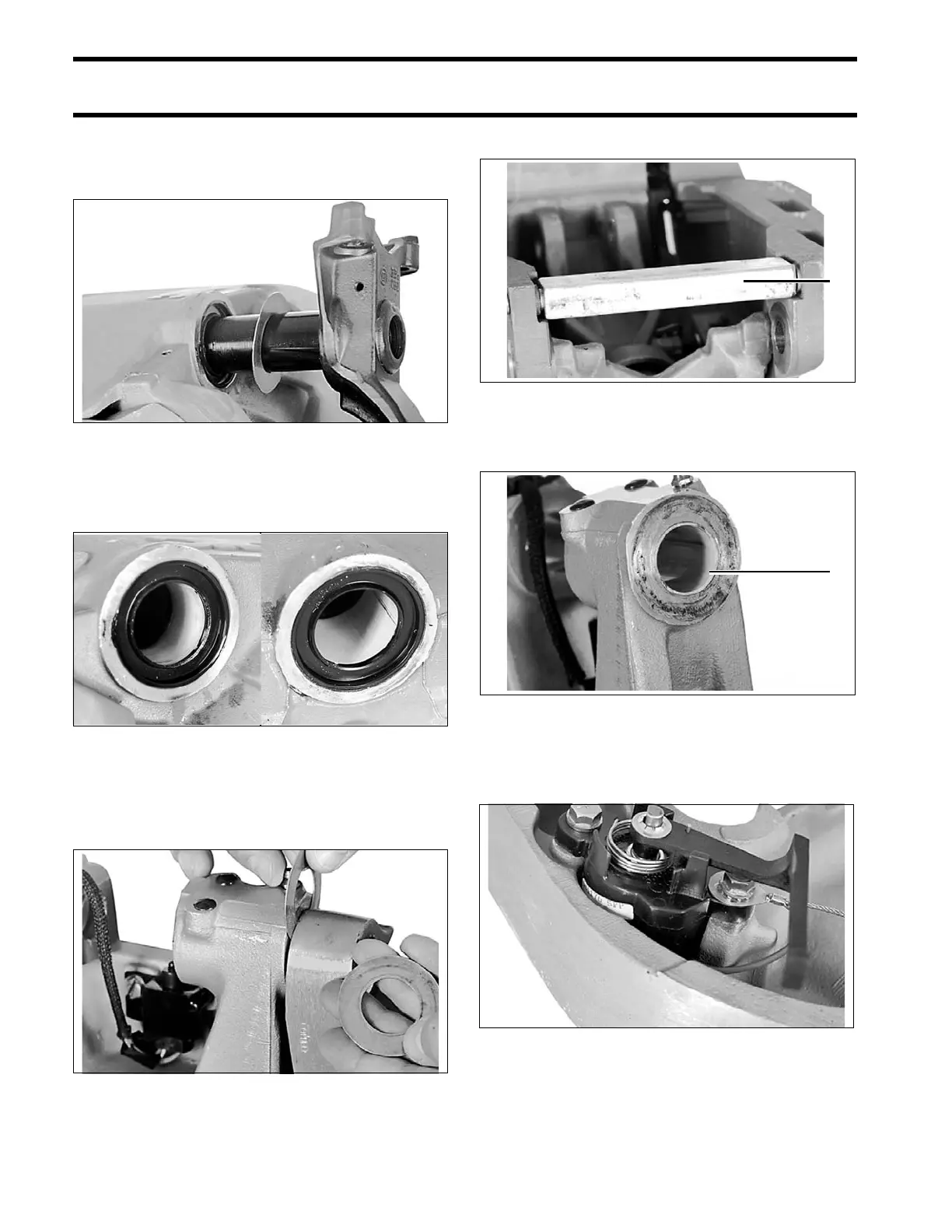

STERN BRACKET, 75 – 90 HP POWER TILT
Remove the steering shaf t and thrust wa sher. It
may be necessary to tap the st eering shaft out
using a wood dowel and mallet.
Pry out upper and lower steering shaft seals a nd
discard. Remove the upper and lower steering
shaft bushings.
Remove the tilt tube. Refer to TILT TUBE, 75 – 90
HP on p. 241.
Remove the two tilt tube washers.
Remove the anode.
Remove the swivel bracket. Inspect and, if neces-
sary, replace the tilt tube bushings.
Remove the trim sen der unit from the port ste rn
bracket an d p ull it s wire s through t he braided
tube.
