257

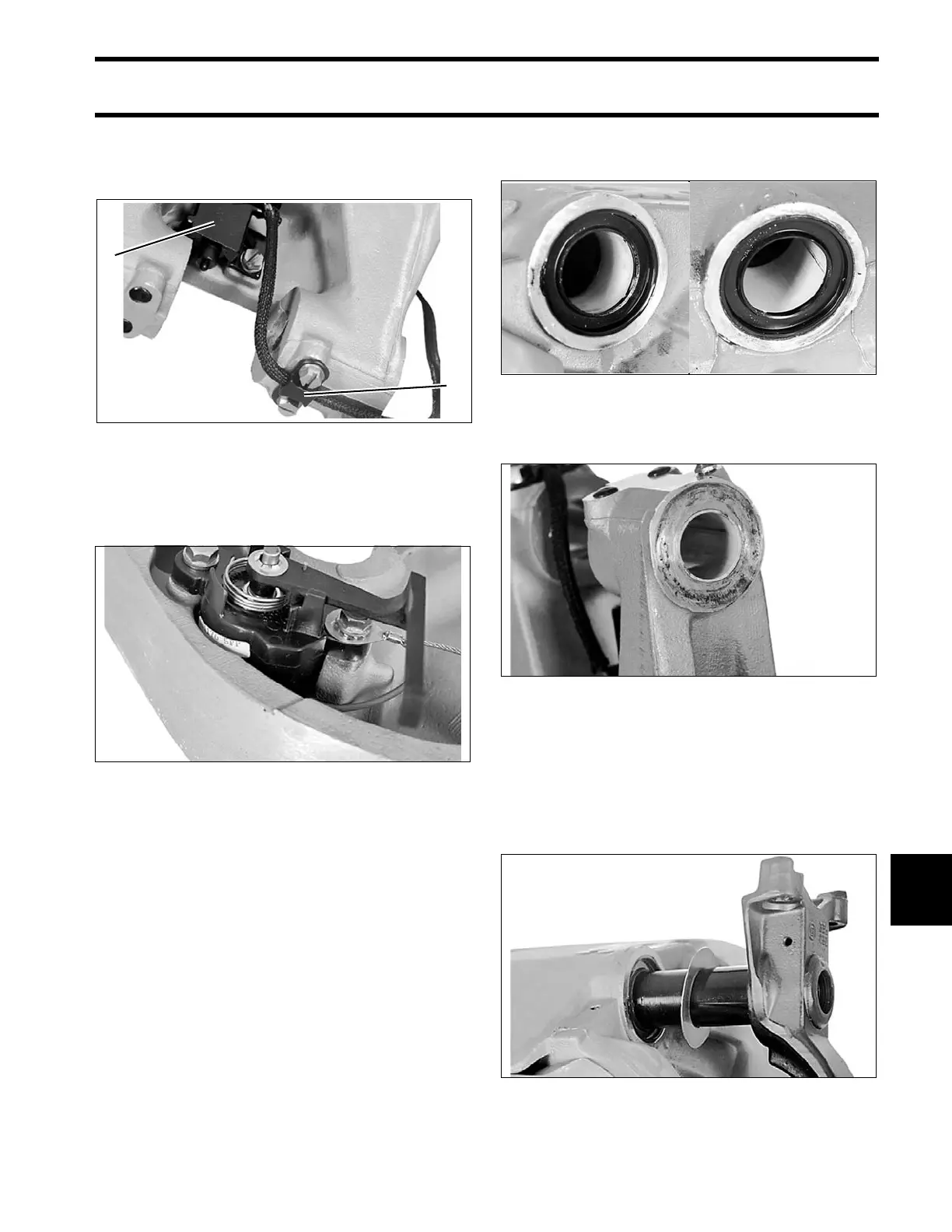

MIDSECTION
STERN BRACKET, 75 – 90 HP POWER TILT
11
Install the tilt limit switch and retainer on the swivel
bracket. Tighten screws to a torque of 40 to 50 in.
lbs. (4.5 to 5.5 N·m).
Route the trim sende r wires th rough the braided
tube, and inst all the sen der unit in the port stern
bracket.
Install the upper and lower steering shaft bushings
and new seals in the swivel bracket. Both seal lips
face out.
• Coat the outside surfaces of seals with Gasket
Sealing Compound.
• Coat the bushing s and sea l lip s with Triple-
Guard grease.
Coat tilt tu be bushin gs with Triple-Guard grease
and, if removed, install them in the swivel bracket.
Place the swivel bracket between the stern brack-
ets and install the anode.
Install the tilt tube and tilt limit cam. Refer to TILT
TUBE, 75 – 90 HP on p. 241.
Install the steering shaft and thrust washer.
1. Tilt limit switch
2. Retainer
30758
30760
30765 / 30764
30761
30735
