MIDSECTION
STERN BRACKET, 90 HP MANUAL TILT
11
Remove retaining ring and bellcrank shaf t spacer
from reverse lock pivot shaft.
Remove screw from trail lock lever . Remove trail
lock lever and reverse lock pivot shaf t from swivel
bracket.
Remove port trail lock lever and trail lock shaf t as
an assembly.
Remove p ort and starboard trail lock shaf t bush-
ings from swivel bracket.

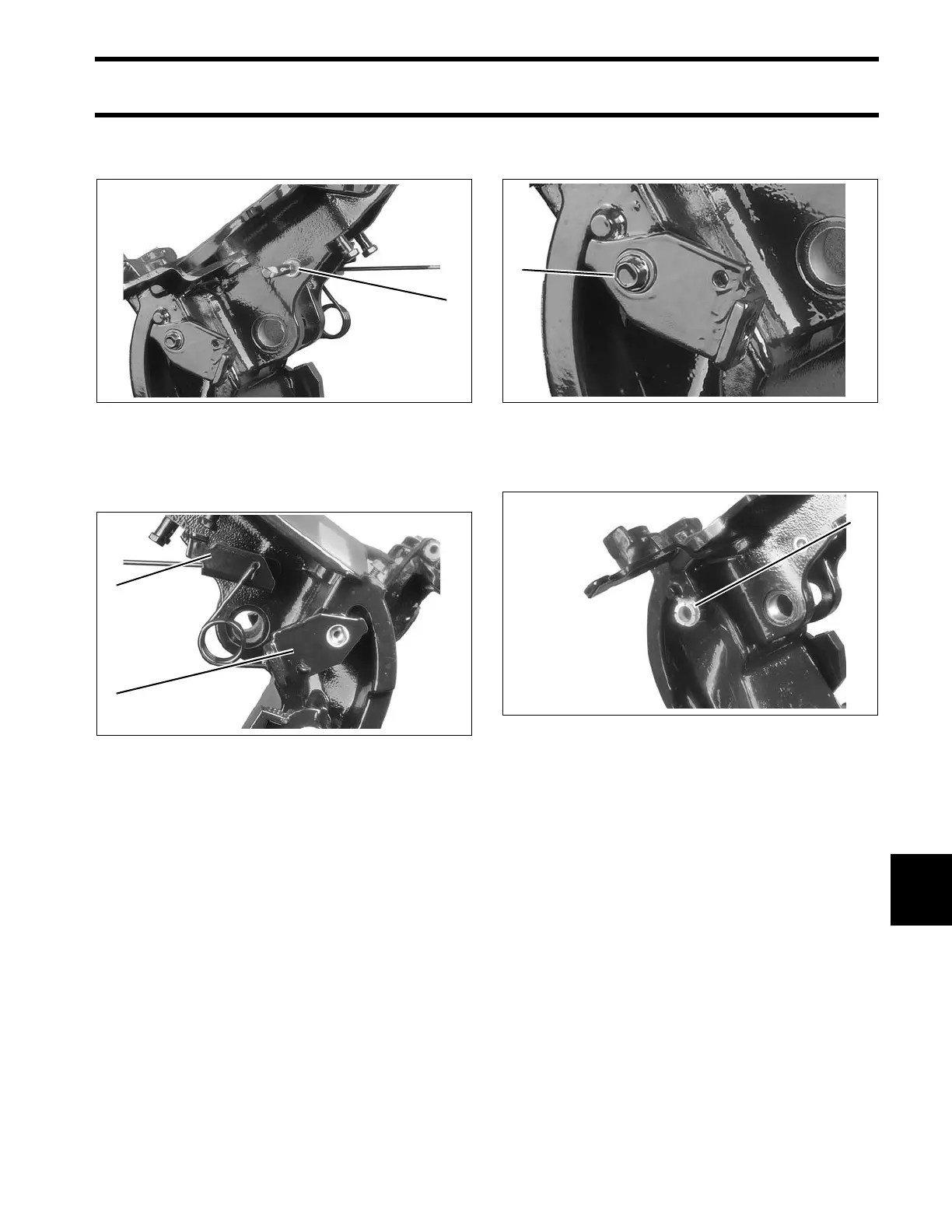

1. Retaining ring 006693
1. Trail lock lever
2. Reverse lock pivot shaft
006692
1
2
1
1. Port trail lock lever and shaft 006704
1. Trail lock shaft bushings 006687
1
1
