279
MIDSECTION

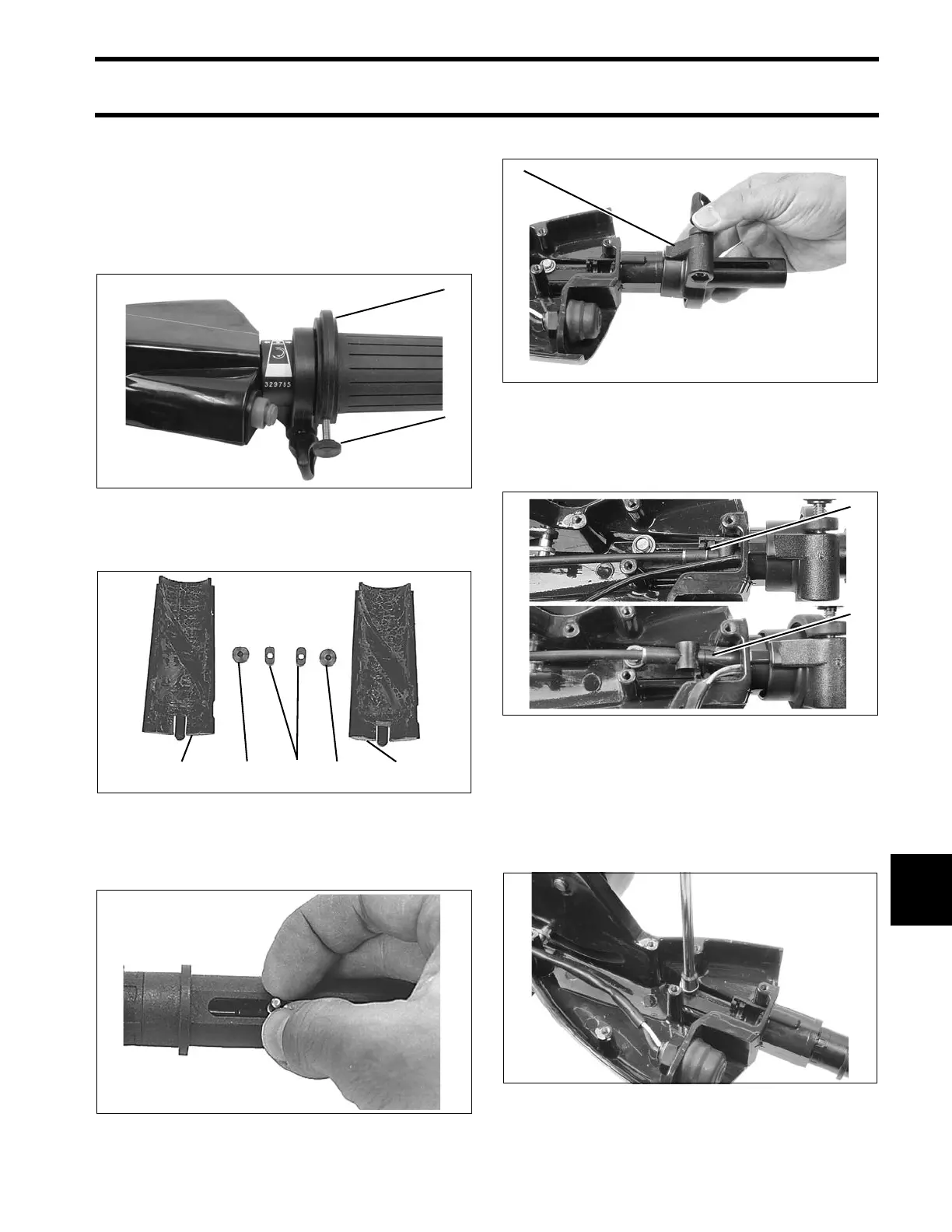

TILLER HANDLE SERVICE – LONG HANDLE
11
Disconnect trim switch co nnector. Remove con-
nector from trim switch wires. Refer to CONNEC-
TOR SERVICING on p. 116.
Use Twist-Grip Remover, P/N 390767, to depress
the grip de tents. T ighten screw and remove the
grip by pulling grip.
Remove the helix halves, rollers, and guides.
Pull the throttle pin out of the cable.
Remove the throttle friction control.
Remove the thro ttle cable ret aining clip. Pry the
cable trunnion ou t of th e st eering hand le an d
remove cable.
The trim switch wiring can now be removed from
the inner handle.
Remove the screw and washer retaining the inner
handle tab.
1. Twist-Grip Remover
2. Screw
006710
1. Helix halves
2. Rollers
3. Guides
COA2674
006712
1. Throttle friction control 006671
1. Retainer
2. Throttle cable trunnion
006674
006681
