Evinrude E-tec 75 HP - Page 412

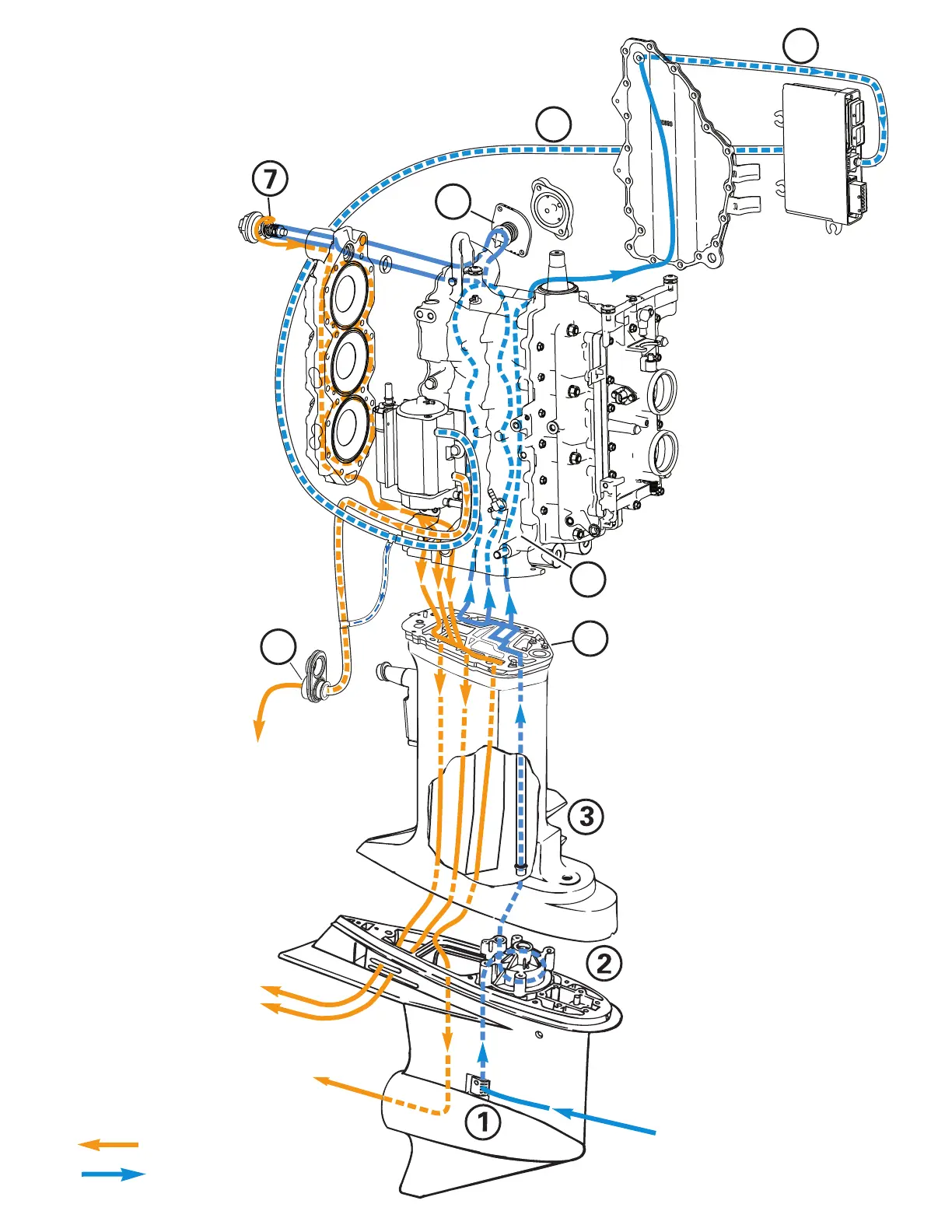

Hose Routing and Water Flow Diagram
75-90 HP EVINRUDE ETEC
Outgoing water (warm/hot)
Incoming water (cool)
6
4
8
9
10
1. Intake water screens
2. Water pump
3. Water tube
4. Adaptor housing
5. Cylinder block
6. Pressure valve
7. Thermostat
8. Water supply to EMM
9. Water supply, EMM to
vapor separator
10. Overboard indicator,
outgoing water from
vapor separator
5
001818
