System manual CECX / Operating behavior

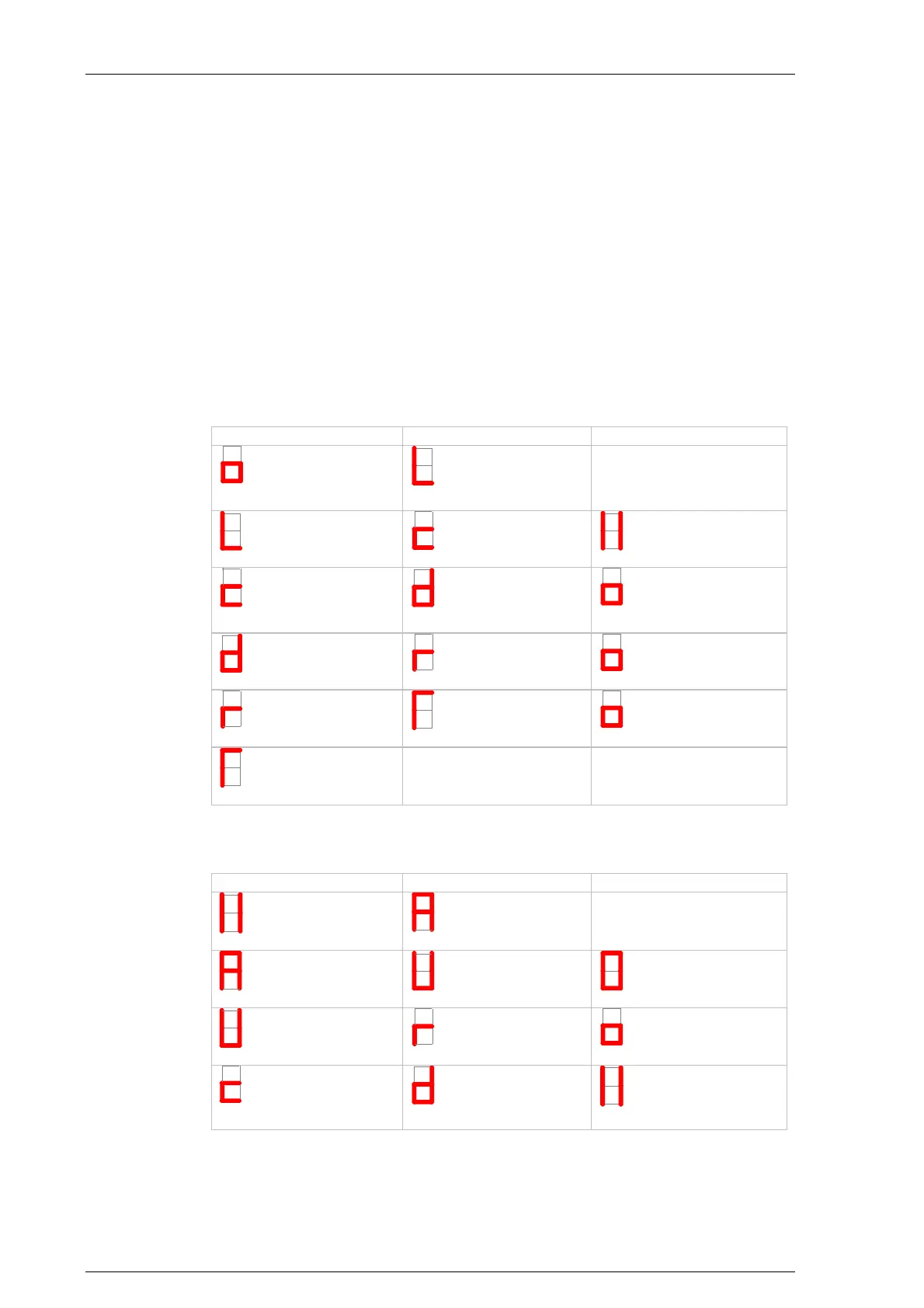

8.3.1 Switching between operating states
Explanation of the table:
The current status is shown to the left. If the Control key is pressed for
more than 0.5 sec, the function that has been specified under "long key-
stroke" will be executed.
"Short keystroke" specifies the status that is selected when the control key
is pressed for less than 0.5 sec.
INIT:
Display short keystroke long keystroke
INIT:
The control is in the
status INIT
To next action:
Load application
Load application
To next action:
Delete retain data
The control will enter
the status "STOP".
Delete retain data
and re-initialize
To next action:
Delete application
The retain data are
deleted and afterwards
the system is newly
initialized.
Delete application
To next action:
Write status report
The application is
being deleted.
Write status report To next action:
Trigger new start
Status report is being
written.
Trigger new start Continue to main
operating status
INIT
A new start is being
executed.
STOP:
Display short keystroke long keystroke
STOP
The control is in the
status STOP
To next action:
Starting the applica-
tion
Starting the applica-
tion
To next action:
Application unloaded
The control will enter
the status RUN.
Application unloaded
To next action:
Write status report
The control enters the
status INIT.
Delete retain data
and re-initialize
To next action:
Delete application
The retain data are
deleted and afterwards
the system is newly
initialized.
CECX-II 8-4
