21.4.3 Analog inputs (single ended)
There are 4 analog inputs with 14-bit resolution available.
These inputs can either be used "differentially" or "single-ended".
These inputs have been designed for ratiometric measurement, and cali-
bration is standardized to U
REF
.
For further information on wiring and shielding of the analog inputs: See
System manual.
!
WARNING!
Unintentional switching on of a drive possible!
• If the power supply for the modules is not switched on, but a voltage is
applied to the analog inputs (e.g. by the external supply of an encoder),
there may still be a voltage on the analog outputs.
This enables drives to be switched on even though they have not re-
ceived an ON-command.
Remedy: The drives must only switch after the activation of an enable
output. This must only be switched on after the system startup has
been completed (e.g. via the output of a digital output module)
21.4.3.1 Connection example
000102030405060708091011121314151617
UREF
GND
GND
GND
+
-
AI0
+
-
AI1
+
-
AI2
+
-
AI3
AO0
AO1
GND
AO2
AO3
GND
shield rail
Sensor

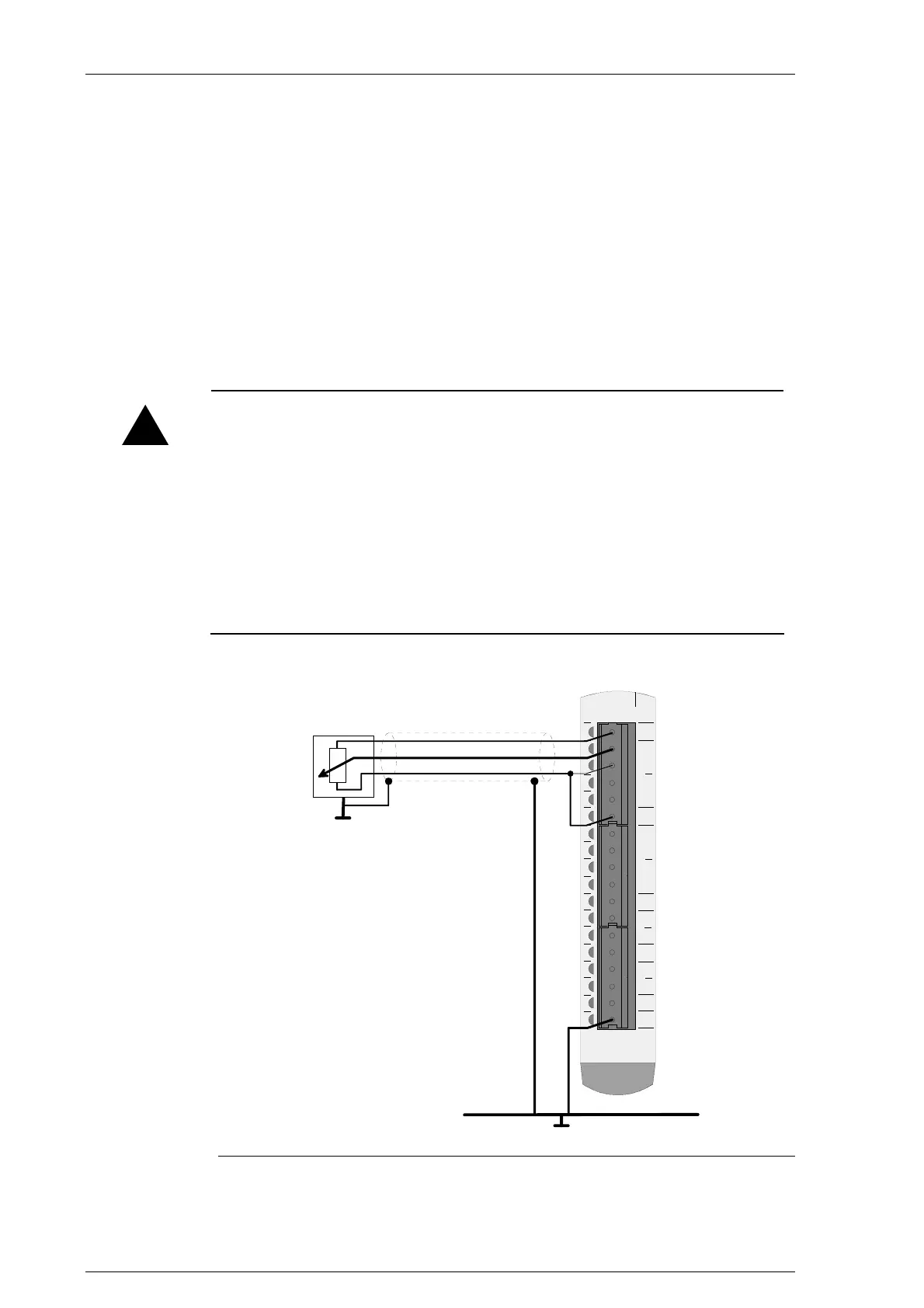

Connection example for analog inputs (single ended)
